Specifications
1.Work Time: 8-10 hrs/Day, 3-5 days
2.Light source: LED & Metal halide lamp & high voltage sodium lamp
3.The surface of the pole is hot dip galvanized .
4.Levels of protection :IP65
5.This kind of the street light can save energy .
6.above lid can be opened ,convenient for maintenance
7.outstanding waterproof and dustproof performance.
8.Glass cover with high-intensity and high-transparency.
9.Work 8-12 hours work a day,4hours full power work,4 hours half powerwork, if the battery is full, it can work 3-4 rainy days

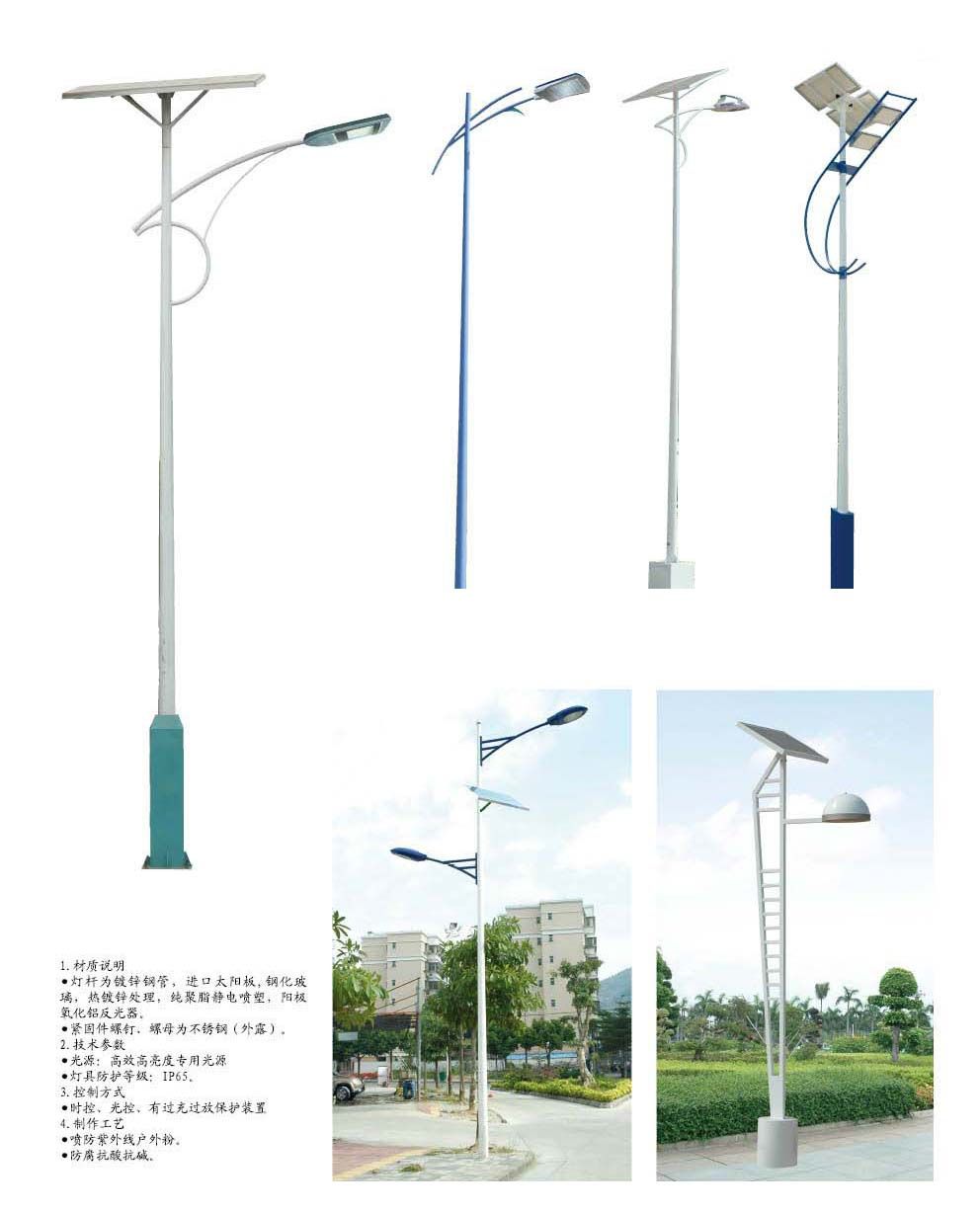

The pole patterns are standardized practical model recommended by us. It can be customized with more patterns available according to clients specific requirement.
Standard Features
- Solar panel: 20 years power generation capacity
- LED light: Ultra bright LEDs that last up to 50, 000 hours
- Controller: Typical operating life of 10 year, auto ON/OFF operation
- Pole: Up to 25 years long life time
- Battery: Long life of up to 5 yearsBattery
1. Lead-acid battery, specially for solar or wind energy saving;
2. Fully sealed to ensure absolute safety, unique structure and seal technology ensures no leakage occurring;
3. Long service life, up to 6 years for lead-acid battery without maintenance.

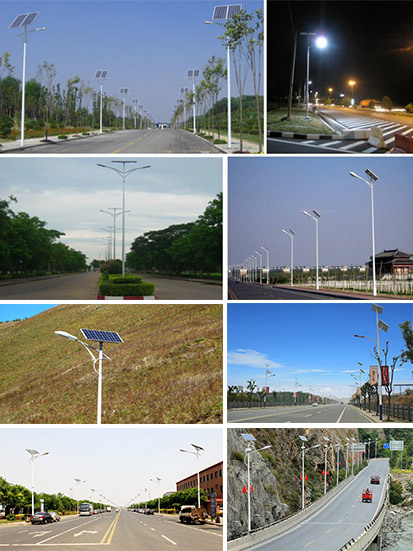

Applications
Street lighting; park lighting; roadway lighting; fence lighting; pathway lighting; campus lighting; ramp lighting; boat dock lighting; sidewalk lighting; remote area lighting; private road lighting; farm & ranch lighting.
Please contact us for more detailed technical specification of each part of the system, which can be sent upon client's email request.
System No.
|
30w/40w/50w |
LED Lamp
|
100W DC24V; superbright Bridgelux 45mil led chips, led luminance efficiency >120lm/W, IP66 guard level, aluminum housing, 50,000hrs lifespan |
Solar Panel
|
2pcs*150Wp 17.5V, high-efficiency crystalline PV module, IP65 junction box, A class; 20 years continuous power output guarantee |
Controller
|
12V/24V auto-sensing, 10A; light/time intelligent control, high-efficient and accurate charging control; IP68 waterproof type, various protections |
Battery
|
2pcs*12V150AH, solar special use valve-regulated fully sealed lead-acid battery, deep cycle, free maintenance type; 5-6 years lifespan |
Battery Box
|
PVC material, underground-buried type, waterproof and heat-dissipative design; including PVC cable tub |
Pole Set
|
7m high, Q235 steel grade; hot-dip galvanized and spray coated treatment, including solar panel bracket, lamp arm and base plate (foundation not included) |
Cable
|
RVV2*6, international standard, 20m/set |
Suggestion
|
This configuration is recommended for road within 20m width |

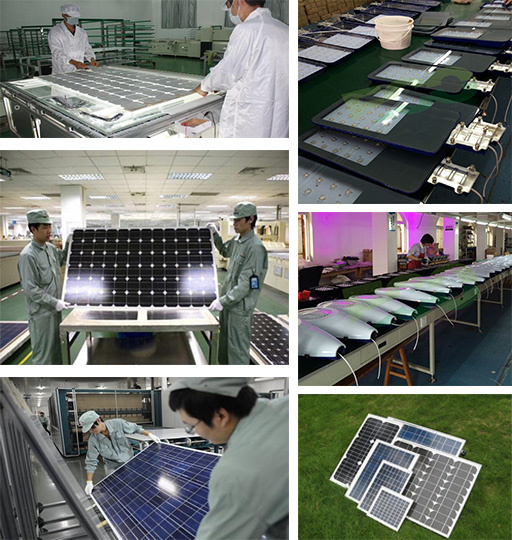

Eco-Friendly New Energy Technology Co., Ltd. is one of the leading manufacturers of LED out door lights and street light poles. We have been in the industry for 10 years. Located in Gaoyou, Yangzhou, the most concentration area of street lighting factories, we take great advantage of the complete supply chain of this region, which gives us the power to offer you good price and quick delivery.
We are steady supplier of dominated companies from Eastern Europe and Middle East. We also supply LED lights to South Asian and North American customers. Various exporting experience makes us outstanding from the suppliers in the region. Working with us, you will find our excellence. We are your best choice!
