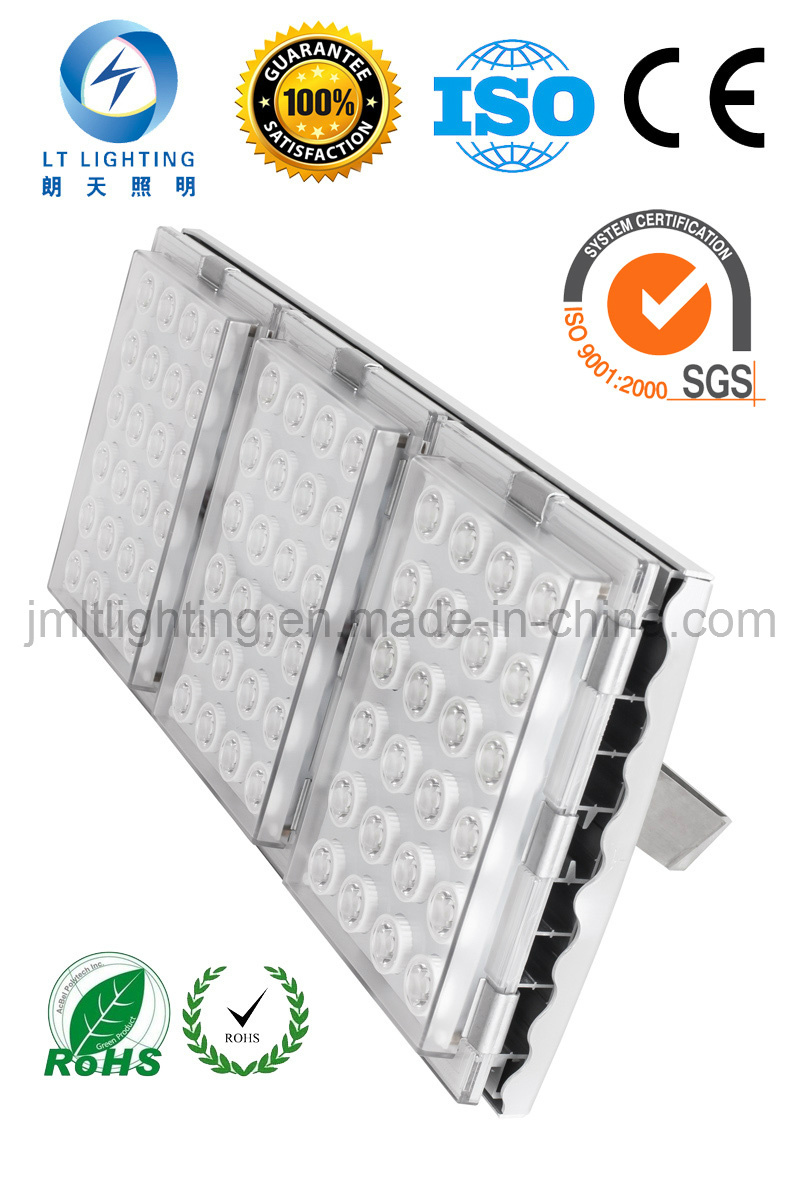

72-270W Special Design Heat Dissipation LED High Bay Light used for tunnel, warehouse, street lamp, road lamp, garden light, AD flood light etc.
Get 26 patent certificates, including Chinese utility model patent certificate 17, the Republic of China (China Taiwan) 8 new patent certificate, a patent certificate of the United States, covering the thermal structure technology, nanotechnology, power supply and so on. The following list is only obtained patents in 2012
For vertical lighting, we measure and calculate light angle for each lamp, distribute light through the lens or other different ways, such as keeping LED lamps and light source and the angle the same, directly reduces wasting light source, can improve the use efficiency of light.
The LED light module combination lamp is light-weighted (LED module 800g), the whole light's weight is reduced, so shaking in the air is reduced.
No Pb, Hg, or other pollution elements, long lifespan, 50-80% energy saving compared with traditional lamps with unique design.
|
|
|
Optical Spec |
|
|
|
|
|
|
|
|
|
Item# |
|
LT-H02-V1-48 |
|
LT-H02-V1-90 |
|
LT-H02-V1-110 |
|
LED |
|
LED Qty |
|
48×1W LED |
|
72×1-3W LED |
|
90×1-3W LED |
|
LED |
|
LED Color Temperature |
|
2700K-3500K/4000K-5000K/5000K-6500K |
|
2700K-3500K/4000K-5000K/5000K-6500K |
|
2700K-3500K/4000K-5000K/5000K-6500K |
|
LED |
|
LED Efficiency |
|
110-140lm |
|
110-160lm |
|
110-160lm |
|
|
|
Lamp Efficiency |
|
70-90lm/W |
|
70-110lm/W |
|
70-110lm/W |
|
|
|
Illumination |
|
3360-4320lm |
|
6400-9000lm |
|
8000-9900lm |
|
|
|
CRI |
|
70-85 |
|
70-85 |
|
70-85 |
|
|
|
Beam Angle |
|
10°/30°/45°/60°/90°/120°(elect) |
|
|
|
Electrical Spec |
|
|
|
|
|
|
|
Operating voltage |
|
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
|
|
|
Power Factor |
|
>0.9 |
>0.9 |
>0.9 |
|
|
|
Power Consumption |
|
48W |
80-100W |
100-110W |
|
|
|
IP Rating |
|
IP65 |
IP65 |
IP65 |
|
|
|
Operating Temp |
|
-40~50 |
-40~50 |
-40~50 |
|
|
|
Operating Humidity |
|
10~90RH |
10~90RH |
10~90RH |
|
|
|
Net Weight |
|
3.75±0.2KG |
4.25±0.2KG |
4.25±0.2KG |
|
|
|
Limited Warranty |
|
50000h |
50000h |
50000h |
|
(mm) |
|
Dimension(mm) |
|
L359×W213×H104 |
L514×W213×H104 |
L514×W213×H104 |
Jiangmen LT lighting Co., Ltd is located in Jiangmen City, Guangdong Province, China. We are specialized in LED Lighting developing, manufacturing and providing technical support and solutions, with the strength of high pole lamp, shockproof LED lighting, explosion-proof light, tunnel light, spotlight, wall washer, downlight, global bulb and many other indoor & outdoor LED lightings, with high quality and competitive price.
Our team has experienced experts and highly talented professional technicians. They all have doctorate/master' S degree and decades of experiences in LED research. We also have many patents, including heat-dissipating structures, nanomaterials, high-power sources and others.
Our products are widely use in aviation, navigation, port, street, commerical, building and many other places, which are also popular in Europe, Japan, USA, Asia Pacific and other countries. Main projects includes: Upgrade vehicle displays of public transport systems in North America; Replacement of the tranditional lamp to LED lamp for Boeing Co., Airbus; Italy Marco Polo yachts; Jiaguang Jiatong Road; Hongkong Science& Technology Parks; Taiwan Hsinchu Science and Industrial Park; Taipei Traffic intersection test system and others.
We insist on the idea of "efficiency, integrity, service, humanity" & "learn from advantage, and surpass the similar. " We have unique enterprise culture and mature management concept.
We have been making every effort to become a top-rank LED manufacturer and supplier in China. Look forward to the future, we will strive to be the leading company with great competitive ability, also make a contribution to harmony of environmentally friendly society and the progress of human civilization.
