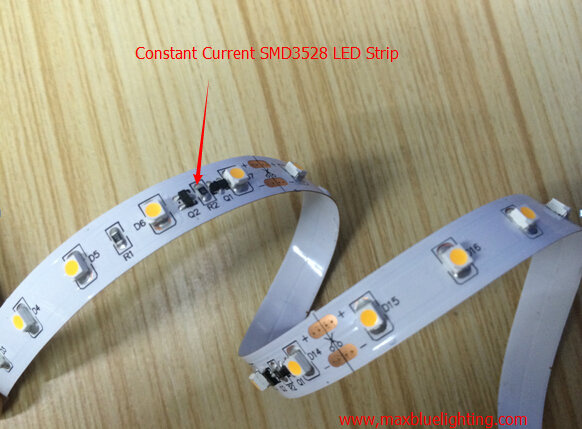

70 leds/m 10mm SMD3528 CC LED Strip lights Constant Current LED Strip Features:
-Single color flexible LED strip with self-adhesive backing
-Constant current regulating circuitry for superior performance
-Cuttable every 14 LEDs at designated cut marks; cut sections may be linked by directly -soldering wires
-Dimmable with optional compatible dimmable transformer and wall dimmer switch or PWM dimmers
-Eco-friendly - uses very little energy, without harmful radiations
Constant Current LED Strip Specification:
* Model No.: MB-FS3CC-70/20
* LED Quantity/Type:350xSMD3528
* Input Voltage: 22-27VDC
* Power: max.4.8W/M
* Available Color Temperatures: Neutral White 4100-4500K | Warm White 2800-3100K | 6000-6500K
* Output lumen: 6-7lm/led
* Beam Angle: 115°
* CRI: >80Ra
* Operating Temperature: -25~60ºC
* Strip Width: 10mm
* Length: 16.4ft (5m)
* PCB Color: White
* Compliance: CE, RoHS
* IP Rating: IP33
* Wire Leads: 20AWG
| Model No.: | MB-FS3CC-70/20 |
| * LED Quantity/Type: | 70leds/m, 350xSMD3528/reel |
| * Input Voltage: | DC24V (22-27VDC) |
| * Power: | max.4.8W/M |
| PCb width | 10mm |

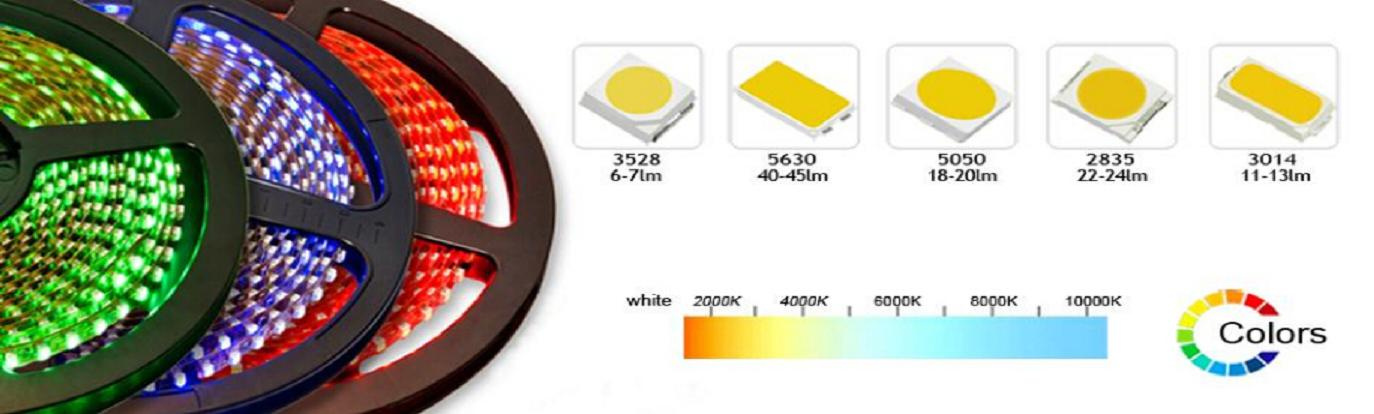

Flexible led Strip range:
--3528 smd led: 60leds/m, 120leds/m, 240leds/m(single row and double row);
--5050 smd led: 60leds/m, 72leds/m, 120leds/m(double row)
--2835 smd led: 60leds/m, 120leds/m (single row)
--5630 smd led: 60leds/m, 120leds/m (double row), Samsung 5630 is available
--RGBW led strip: 4 in one(60/72/84/96leds/m)
RGB+W/WW(60/72/96/120/144leds/m)
--CCT adjustable led strip: 3528 120/240 leds/m, 5050 60leds/m, 2835 112leds/m; 3014 224leds/m; 5630 112leds/m.
--digital strips
--110V/220V led strips
different length, different voltage, different led quantity can be customized/tailored.

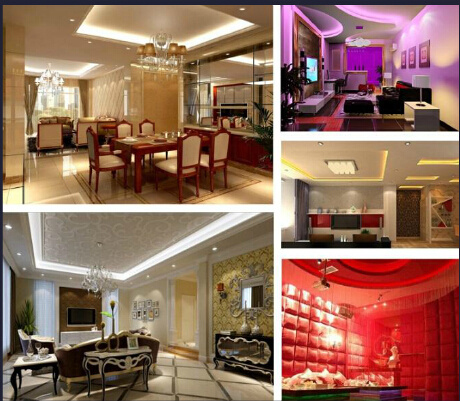

LED strip Application:
-Indoors or semi-outdoors using as decorative lighting for festivals, events, shows.
-Back or edge lighting for signage.
-Architectural lighting for canopy, corridor, window, archway.
-Path or contour making, etc.
FAQ:
Q1: Are you a manufacturer?
Yes, we are. You can check more in our website: www.maxbluelighting.com
Q2: Do you have the MOQ request?
For our developed products, there is no MOQ for the standard products.
Q3: How long can I get my order?
The lead time 3-7 working days for sample, and 7-15 working days for bulk order. Sometimes it is shorter or longer according to stock and quantity. And shipping time is around 5-30 working days depends on shipping methods you choose.
Q4: What is warranty time for your products? If any broken, what I will do?
2-3 years warranty for most of our products. During warranty time, we will arrange the new replacement to you for free of charge.
Q5: Can I get OEM/ODM customized products for special application?
Of course, we provide OEM and ODM service, design and produce per customers' requirement. Such as different length, different voltage and higher lumen efficiency of led strip, different sizes of led panel, tube; special/unusal material for some lights etc.
Q6: What kinds of payment methods do you accept?
T/T bank transfer, West Union and Paypal, L/C at sight
Q7: What kinds of shipping methods you use?
Sea: seaport to seaport, cheap, long time, suitable for big volumn orders
Air: airport to airport
Global express DHL, UPS, FEDEX, EMS, TNT: door to door, mostly used, 3-7 working days delivered.
Kinds of Post air mail etc: for small packages below 2kgs, 25-30 working days.
Established in 2009, Maxblue Lighting Co., Ltd., with own branches of R&D, manufacturing and marketing, is specialized in Indoor LED lighting and commercial LED decoration, devoting to delivering eco-friendly, affordable and stable LED products for the customers. Now we focus on LED flexible strip, LED linear light, LED COB downlight, LED panel light, LED track light, LED wall washer etc.
With our ISO9001: 2008 certified facilities, plus two SMT production lines and one fully-automatic reflow machine, we can manufacture above 50000 units of CE- and TUV-marked items per month in the 5000 square meters factory. To develop innovative products cater to different market needs, we have 12 RD engineers and 15 QC staff, well knowledgeable about optical, electrical and thermal design and management. And the OEM/ODM sample orders can be tailored within 7 working days per customer's requirements.
Based on our continuous efforts and outstanding quality control polices, we developed rapidly in the past five years, and the products are well welcomed in European, North/South America, Japan and other Asia countries. And also in some countries, Maxblue has been distributing by some partners. If you have interests, warmly welcome you to join us for better lighting the world.
