Features
CONTROL FEATURES

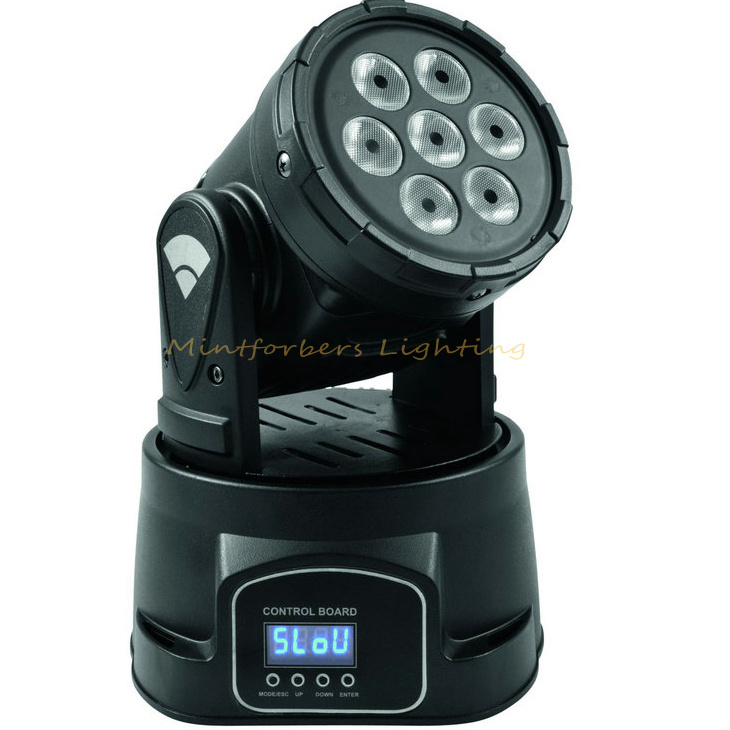

4 or 13-channel DMX-512 LED moving yoke
Pan: 540 / tilt: 180
Variable electronic strobe
Variable electronic dimmer (0 100%)
Vector speed channel for pan/tilt, RGBW color mixing and color macros
Built-in movement macros via master/slave or DMX
ADDITIONAL FEATURES
User-selectable basic or advanced operating modes
User-selectable pan/tilt ranges
Pan: 540, 360, 180
Tilt: 180, 180, 90
Compact and lightweight
LED display menu with invert
Reset to factory settings option
Display auto on/off
Pan/tilt invert option
Fan cooled
DMX Channel Summary - 13 Channel Mode for Wash
CHANNEL FUNCTION
1 Pan
2 Pan Fine
3 Tilt
4 Tilt Fine
5 Vector Speed (Pan/Tilt)
6 Dimmer/Strobe
7 Red
8 Green
9 Blue
11 Color Macros
12 Vector Speed (Color)
13 Movement Macros
Technical Specifications
WEIGHT & DIMENSIONS
Length: 12in (300 mm)
Width: 9.5 in (240 mm)
Height: 9.5 in (240 mm)
Weight: 8.3 lbs (3.8 kg)
POWER
Switch-selectable power settings: 120V 60Hz AC or 230V 50Hz
Fuse: 3A 250V
Power Consumption: 68.1W (0.30A) Max at 230V
Inrush Power: 83.6W (0.71A) inrush at 230V
Power Factor: 0.92
LIGHT SOURCE
LED: 8W RGBWx7ps
Beam Angle: 25
Pan: 540
Tilt: 180
Guangzhou Mintforbers Lighting Equipment Co., Ltd. is a high-tech enterprise specializing in R&D, design and sales of stage lighting, architectural lighting and and other professional stage lighting products. Our company was established in the year 2007 and we have our owner sales office in Shenzhen City. The light production base located in the Baiyun district, we own professional production troop engaging in R&D, production and sales.
Our major products include LED light, Moving head light, Scanner, Laser light, Professional audio and so on. Also we supply OEM service for customers from all parts of the world.
