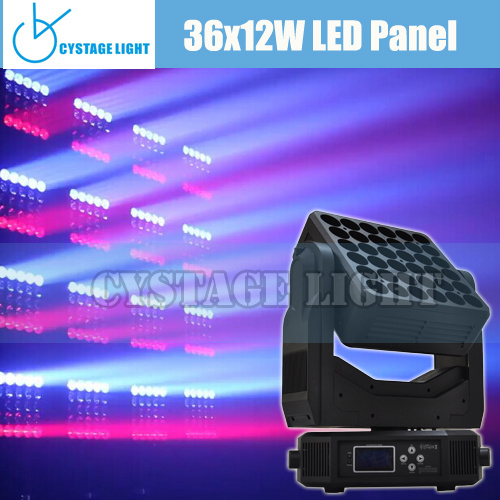

6X6 RGBW Quad LED Moving Panel Light
Technical Parameters
Beam angle: 5°
88% Optic efficiency
High-efficiency 45mm PMMA optics
LIGHT SOURCE:
1.36 Multi-chip 12.8 RGBW 4 in 1 LED sources
Light output: Up to 16.000 lumen
Rated Sources life: Up to 50.000 hours
Flicker free sources Management, suitable for TV
Applications and all video recorded events
MOVEMENT:
Infinite PAN and TILT rotation
Extremely accurate positioning
Moving-head operated vida either 8 or 16 bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
PAN and TILT automatic repositioning
COLOURS:
Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index.
Uniform light beam with no color shadows and rich saturated and pastel color-hues
4, 29 billion colors(8 bit resolution)
Virtual Color Wheel, including most usuals White Color Temperature Presets
Dynamic Color Macro Effect with variable speed
DIMMER/STROBE:
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation.
White or color strobe effect with speed adjustment from 1 to 25 flashes per second.
SOFTWARE FACILITIES:
Local DMX Addressing of the projector and its Optional Parameters through its built-in LCD panel control
Built-in Pattern Effects with Speed and Fade controls for Scenic applications
Information Menu including Hour counter, Temperature, Software version
HAEDWARE FACILITIES:
High-end LED Display for addressing and special functions settings, with flip function, any imaginable name can be showed.
4 menu buttons to set the functions
Over temperature protection
XLR 5 pin male and female connectors for DMX connections.
CONTROL:
DMX512 protocol, through DMX cable
Stand-alone Mode and Master/Slave Modes
Local control panel, with LCD display and 4 buttons
DMX 512 Input/Output through XLR3/XLR5 connectors.
PC Input/Output through XLR5 connectors.
ArtNet & KlingNet protocol through RJ45 connectors.
Choice of 3 DMX/18CH(Basic mode)/20CH(Stand mode)/160CH(Extend mode) POWER SUPPLY:
Independent R&D Power Supply with the efficiency of 93%
110 to 240 Volts-50/60Hz
Power 600Watt max
COOLING SYSTEM:
Integrated cooling system.
Selectable ventilation User's Modes
Safety Protection against temperatures Excesses
HOUSING:
Moving-Head skeleton made of Aluminium and Steel metal plates
Heatsinks in aluminium and copper, satin finish
Moulded covers in Self-extinguishing fire retardant ABS PC(VO class)
Two sides handles for transportation
IP20 protection rating
Exterior finish: Black
