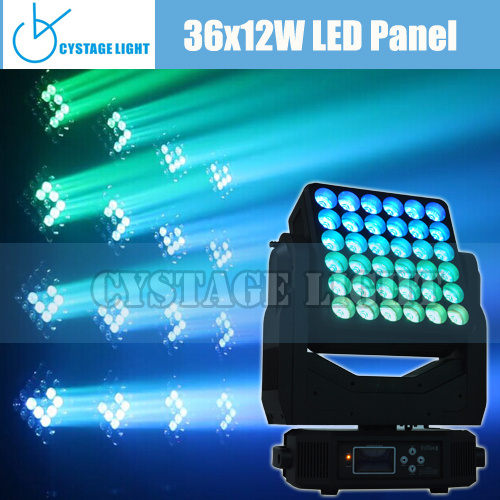

6X6 36X15W RGBW LED Magic Panel Light
After months R&D and investment, our R&D Department have made a huge breakthrough to make out a brand new light -- 36x12.8W RGBW Osram LED Magic panel Light
1. Infinite Pan & Tilt: With this, You can have great effect design for this light
2. Individually Controllable LEDs: Every LEDs can be controlled individually. You can design images, effect from computer insteading of using DMX Controller to fullfil this unbelieve job.
3. Sound activation: Following music, this light can bring you a magic how a light can do.
4.13/16/159 DMX Channels
What can we provide to you?
Before sales, we have taken 1 or 2 months to work in our own factory in order to be familiar with the products. Therefore, we are definitely professional to serve you.
Efficient communication and patient answer can be always provided to you.
You can get the most substantial and best quality products from us.
Optimum system solution will be provided based on your specific requirements.
For the packaging of each product, we use the best materials for you to prevent the damage in transport.
After-sales service is definitely offered. Moreover, we pay much attention to the after-sales service and we believe that good after-sales service is the blood of our company.
Technical Parameters
Beam angle: 5°
88% Optic efficiency
High-efficiency 45mm PMMA optics
LIGHT SOURCE:
1.36 Multi-chip 12.8 RGBW 4 in 1 LED sources
Light output: Up to 16.000 lumen
Rated Sources life: Up to 50.000 hours
Flicker free sources Management, suitable for TV
Applications and all video recorded events
MOVEMENT:
Infinite PAN and TILT rotation
Extremely accurate positioning
Moving-head operated vida either 8 or 16 bit resolution
High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movements.
PAN and TILT automatic repositioning
COLOURS:
Sophisticated 4 colors RGBW mixed, reaching high Color Rendering Index.
Uniform light beam with no color shadows and rich saturated and pastel color-hues
4, 29 billion colors(8 bit resolution)
Virtual Color Wheel, including most usuals White Color Temperature Presets
Dynamic Color Macro Effect with variable speed
DIMMER/STROBE:
Electronic dimmer, allowing perfect light adjustment from 0 to 100% without color variation.
White or color strobe effect with speed adjustment from 1 to 25 flashes per second.
SOFTWARE FACILITIES:
Local DMX Addressing of the projector and its Optional Parameters through its built-in LCD panel control
Built-in Pattern Effects with Speed and Fade controls for Scenic applications
Information Menu including Hour counter, Temperature, Software version
HAEDWARE FACILITIES:
High-end LED Display for addressing and special functions settings, with flip function, any imaginable name can be showed.
4 menu buttons to set the functions
Over temperature protection
XLR 5 pin male and female connectors for DMX connections.
CONTROL:
DMX512 protocol, through DMX cable
Stand-alone Mode and Master/Slave Modes
Local control panel, with LCD display and 4 buttons
DMX 512 Input/Output through XLR3/XLR5 connectors.
PC Input/Output through XLR5 connectors.
ArtNet & KlingNet protocol through RJ45 connectors.
Choice of 3 DMX/18CH(Basic mode)/20CH(Stand mode)/160CH(Extend mode) POWER SUPPLY:
Independent R&D Power Supply with the efficiency of 93%
110 to 240 Volts-50/60Hz
Power 600Watt max
COOLING SYSTEM:
Integrated cooling system.
Selectable ventilation User's Modes
Safety Protection against temperatures Excesses
HOUSING:
Moving-Head skeleton made of Aluminium and Steel metal plates
Heatsinks in aluminium and copper, satin finish
Moulded covers in Self-extinguishing fire retardant ABS PC(VO class)
Two sides handles for transportation
IP20 protection rating
Exterior finish: Black
|
Feature |
LED Moving Head, LED Magic Panel |
|
Application |
Club, Bar, Stage, Parties, School, Theater, all entertainment industry |
|
Advantages |
Thick Housing, infinite Pan&Tilt, Stable programs, Osram LEDs |
|
Company Warranty |
One Year Warranty but Great after sales service after one year |
|
Contact |
Sabrina is very good at communicating and always can answer your questions without bothering you saying twice. And you can always call for answers.
Doing business is with great suppliers with good communication skills and great products.
|
CYSTAGELIGHT HK LIMITED was a small company who was established in 2001.Due to the interests for lighting products from Jack, the founder, He has the decision to build a factory to make the lights for customers who really need them.
After the foundation, Jack has been keeping research on different lights in different market.Until now, what he has manufactured has won very much population in the market.
CYSTAGELIGHT now has customers from different countries and based on different situation, Jack has adapted his products to every country.
Now CYSTAGELIGHT HK LIMITED has covered most of categories of entertainment industry.Almost all LED Lights and Moving Head Lights applied in stage are covered from our company.
CYSTAGELIGHT HK LIMITED is Either a lighting manufacturer or an entertainers as you.We know the frustration of working with lights that are hard to program, tempermental, and just plain way too expensive.If you've been looking for lights for your DJ business, band, production company, club, or wherever, we think you'll find CYSTAGELIGHT'S products right up your alley!
