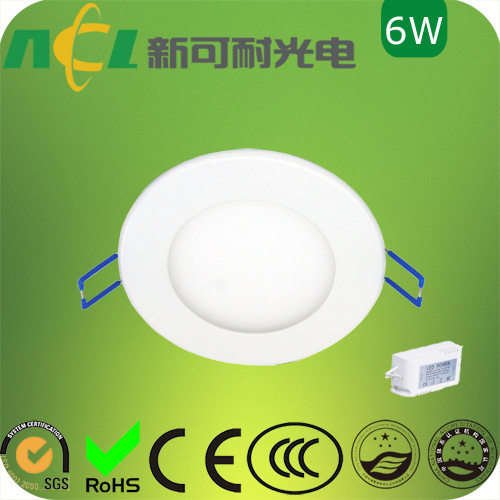

6W
Side-glowing Luminance LED DOWN LIGHT
AC 85-277V
SMD 3528 80PCS
4.5 IN CUT-OUT
ITEM: LED Recessed DownLight / LED Recessed Light / LED Recessed down Light
Provide a diffused light source that delivers a volumetric light distribution more efficiently than comparable CFL luminaires. Housings are steel and aluminum construction. Trim sold separately. Suitable for general illumination in corridors, offices, reception areas, schools, and retail environments.
Three years warrantee of life span for the LED Recessed down Light
Four years design experience of the New LED Recessed down Light tech
Five years produce experience in the field of LED Recessed down Light
SMD LED Recessed down Light is made by special different view angles mixing lighting design
Product Features:
LED Recessed Light / LED Recessed Down Light
1.3-year life span, obtained CE, RoHS approvals
2. LED Recessed down Light without RF interference& flickering
3. Electric wave resistant, instant start
4. Energy saving up to 60%, high intensity save your lost right now, 20$ per year per tube!
5. Special view angles LED Recessed down Light ing design
6. LED Recessed down Light with heat protection system which makes them can work under wide range of voltage
7. New inner high efficiency 90% constant current driver set in the LED Recessed down Light.
|
Model No. |
NCL-O125G6SW-C |
|
Size |
Φ125*13mm(CUT-OUT sizeΦ115mm) 4.5IN |
|
input voltage |
AS REQUIRED |
|
power factor |
≥ 75 |
|
Power |
6W |
|
IP rate |
IP40 |
|
Emitted color |
warmwhite, white, cold white |
|
Lighting Angle |
45° |
|
luminous flux |
350-380Lm |
|
LED quantity |
SMD 3528 80PCS |
|
Color temperature |
WW2700K NW4200K CW6000K |
|
Material |
Aluminum alloy shell + aluminum circuit board + Diffused PC |
|
light source |
SMD 3528 |
Dimmable LED downlights Features:
Epistar chips
Good color stability in high temperature
Low heat, No UV or IR l ight radiation
Operating ambient temperature -20° C to +40° C
70% lumen maintenance 50000 hours at max operating temperature
Life span: 50, 000hrs
Easy installation
Quick Response with none second |
Dimmable LED down light application:
Spot lighting
Architectural lighting
Accent lighting
Machine vision
General illumination
Display cases
Interior use only |
Jiangsu Newcolor Optoelectronics Technology Co., Ltd. is a professional lighting company specializing in R&D, manufacturing and sales of all kinds of LED lighting products. NCL covers LED commercial lighting, LED office lighting, LED outdoor lighting, residential lighting, lamps & gears, etc.
NCL was located in Yangzhou city Jiangsu province and has invested 30 million Yuan initial investment of total 120 million Yuan. Backed by Beijing Tsinghua University, Fudan University, Guizhou University, 001 Military Academy technology support, NCL imported international advanced LED production and assembling line and technology and maintained the leading position in domestic in the area of LED thermal management design, structure (HV-LED) design and intelligent dimming and control.
The company is developing domestically and, at the same time, expanding globally and selling OEM and ODM products to overseas. In 2011, the company started promoting its brand in the Middle-East, Asia, Australia, Africa and Eastern Europe. With its two business models, NCL aims to be a worldwide famous lighting brand.
NCL holds Ideas "Faithfull cooperation, Customer First, Quality Orientated, Pursuit of Efficiency" and promotes the eco-friendly LED products. Focusing on "profession, wholeheartedness, LED lighting expert" brand building, NCL qualified by ISO9001: 2000, ISO14001: 2004 and full range of LED products have passed CE, CCC and RoHS certification.
As a professional lighting solutions provider, NCL can be your supplier, partner and customer.
