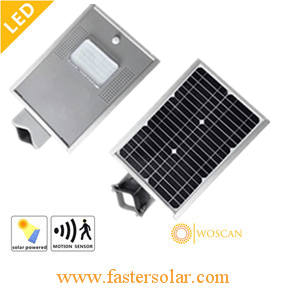

6W Integrated Solar PIR led light for street/garden/lawn lamp
Descripition:
Our solar PIR street light integrates
solar panel, LED lamp and the rechargeable battery,PIR sensor. So as to get the solution to low-energy, long-time, high-luminance and free maintenance.Feature:
-All in one design,
without any cable, install easily, can use many poles, such as iron pole, wood pole, bamboo pole,plastic pole and so on, with low cost;
-Using high capacity and long lifespan polymer gel battery, can resist high temperature and ensure the long lifespan of the whole product;
-Waterproof,very safe and reliable;
-Using aluminum alloy as the main material of the body, rustproof and corrosion-proof
-Lighting hour:36-48hours, can work for continuous 3 or 5 rainy days when charged fully.
Working principle
when someone or the car (moving object) enters within 10-12 meters from the light,
the led light will work by full power.
90 seconds later, the light will return to the power-saving model,
which means the light will work by one third of the full power.
Specifications:
| Light Source | 6W |
| PV Power | 12W |
| Battery | Iron phosphate-lithium 12.8V 4AH |
| Human Body Sensing | yes |
| Overload Protection | yes |
| Dimension | 480*300*90mm |
| Net Weight/Gross Weight | 5.5kg/17.5kg |
| LuminousFlux | All Bright | 650lm |
| Energy Saving | 250lm |
| Viewing Angle | 120° |
| Color Temperature | 6000-6500k |
| Light Perception Threshold | 25lx |
| Working Time | Bright mode | ≥3 hrs |
| Dim mode | ≥24 hrs |
All series lists, 70W 80W can produce,but need to customize.
Technical Parameters
|
| Model | WS-SL-05 | WS-SL-08 | WS-SL-10 | WS-SL-12 | WS-SL-15 | WS-SL-20A | WS-SL-20B | WS-SL-25 |
| Basis Parameters |
| Light Source | 5W LED | 8W LED | 10W LED | 12W LED | 15W LED | 20W LED | 20W LED | 25W LED |
| Solar PV Power | 10W(Mono) | 18W(Mono) | 25W(Mono) | 30W(Mono) | 37W(Mono) | 50W(Mono) | 50W(Mono) | 50W(Mono) |
| Battery | Type | (Inbuilt)Lithium Iron Phosphate | (Inbuilt)Lithium Iron Phosphate | (Inbuilt)Lithium Iron Phosphate | (Inbuilt)Lithium Iron Phosphate | (Inbuilt)Lithium Iron Phosphate | (Inbuilt)Lithium Iron Phosphate | (Inbuilt)Gel | (Inbuilt)Gel |
| Capacity | 12.8v 4Ah | 12.8v 6Ah | 12.8v 9Ah | 12.8v 12Ah | 12.8v 15Ah | 12.8v 18Ah | 12v 21Ah | 12v 28Ah |
| Utility Supplement Interface | Yes(DC 18V) |
| Power Regulation | Infrared Sensors and Program Setup |
| Circuit Protection | Overcharge Protection/Discharge Protection/Over-current Protection |
| Dimension | 750X214X43mm | 950X214X43mm | 650X325X43mm | 780X325X43mm | 920X325X43mm | 1150X325X43mm |
| Net Weight / Gross Weight | 6.9kg/7.96kg | 8.2kg/9.4kg | 9.7kg/10.5kg | 10.5kg/11.8kg | 13.2kg/14.6kg | 17.5kg/19.5kg | 25.8kg/27.5kg | 18.5kg/19.8kg |
| Luminous Efficiency |
| Luminous Flux | All Bright | 450 lm | 720 lm | 900 lm | 1080 lm | 1350 lm | 1800 lm | 1800 lm | 2250 lm |
| Energy Saving | 150 lm | 240 lm | 300lm | 360 lm | 450 lm | 600 lm | 600 lm | 750 lm |
| Viewing Angle | 120º |
| ColorTemperature | 3000K-3500K/6000K-6500K |
| Charging Time |
|
|
|
|
|
|
|
|
| Working time (Full Power) | All Bright | ≥8 hour | ≥8 hour | ≥9 hour | ≥12 hour | ≥12 hour | ≥10 hour | ≥10 hour | ≥10 hour |
| Energy Saving | ≥20 hour | ≥20 hour | ≥20 hour | ≥20 hour | ≥20 hour | ≥20 hour | ≥20 hour | ≥20 hour |
| Ambient Temperature |
| Operating Temperature | Charging | 0ºC~60ºC |
| Discharging | -20ºC~60ºC |
| Storage Temperature | 0ºC~45ºC |
| Protection Grade | IP 54 |
| Installation Structure |
| Installation Height | 3m~4m | 3m~4m | 3m~4m | 3m~4m | 3m~4m | 3m~5m | 3m~5m | 3m~5m |
| Installation Diameter | 70mm-90mm |
| Clearance of Installation | 6m~8m | 8m~10m | 8m~12m | 10m~15m | 10m~15m | 10m~15m | 10m~15m | 10m~15m |
Environmental Temperature
-Work temperature: Charge: 0°C--+60°C; Discharge: -20°C--+60°C Storage: 0°C--+45°C
Installation:
-Pole install height: 2-3m
-Space between 2 lights:7-8m
-Suitable for light pole diameter: 30-70mm
Package;
-1X Integrated Solar Light
-1Xset of Mounting fittings
Application
Street, Main Road,
Garden, Freeway,
Campus, Avenue,
Pedestrian Street, Sidewalk, Jogging and Bike Path,
Military Bases, Path, Residential area
Parking Lot, Driving way, Pedestrian,
Remote Area, Airport, Boat Dock
