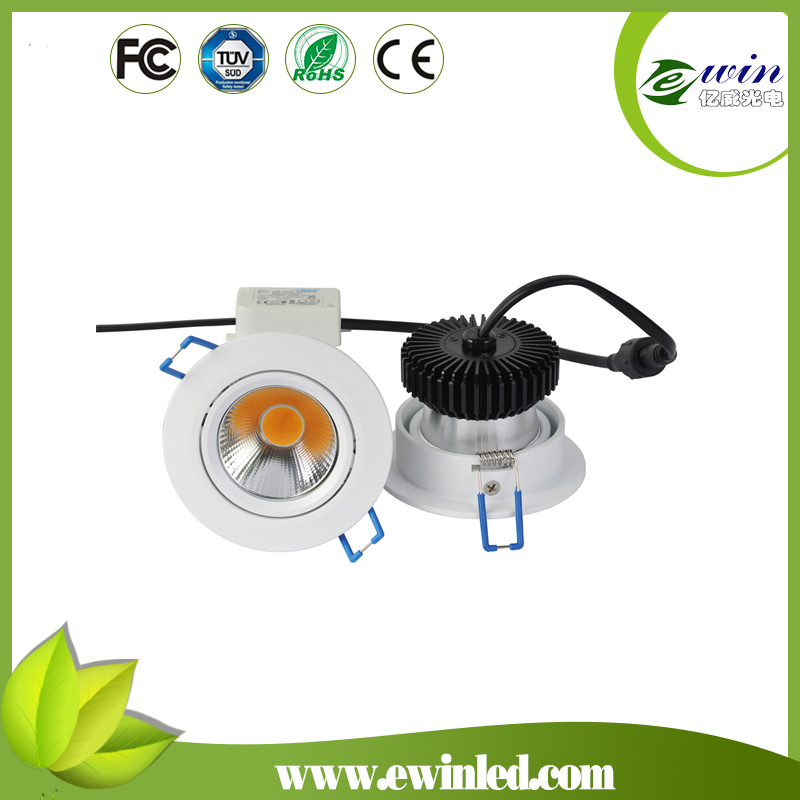

6W COB LED Down Light with CE RoHS

2015 New Style Hot 6w COB Led down light

Features:

COB
RA>80
Constant current circuit design, wide voltage range(100V~240V)
High brightness around 85lm/W
High Power Factor, reaching 0.93
NO UV infrared and other radiation , shock vibration resistant
Patented thermal management design, self-heat-dissipation, free from radiator.
Long lifespan of this LED down light is around 50000hours.
No flicker, low power consumption, quick start, no ultraviolet ray and infrared ray.
Operating temperatureL-20-+50degrees
Easy installation, maintenance free
.

Specification:

LED downlight
CREE COB 6W 450lm RA>80
CE ROHS approval, 60degree beam angle
3 years warranty


6W recessed LED Downlight

Products Features:
(1)LED Power: 6W.
(2)Lamp Consumption:7.5W.
(3)Output: 580-800lm(Ra80), 480-650lm(Ra90).
(4)CRI:> 80(max 95)
(5)SDCM:<4.
(6)CCT:2000-10000k available.
(7)Dimension:φ90*H72mm.
(8)Cutout: φ72-80mm.
(9)Beam Angle:30°/40°/60°
(10)Input voltage:100-240v AC, 50-60hz
(11)Color of housing: white, black, silver.
(12)Dimmable available: Triac/0-10v/DALI/Wi-Fi.
(13)Life span: 50,000+hrs.
(14)Certificate:CE/RoHS/SASO
(15)Warranty: 5 years.


Versions	Part No.	Color	CCT	Output(Ra80)	Output(Ra90)
Super brightness	EW-SCL-6W-WW	Warm White	2900-3200k	680-740lm	580-600lm
	EW-SCL-6W-NW	Natural White	3900-4200k	740-800lm	600-630lm
	EW-SCL-6W-CW	Cool White	5900-6200k	800-840lm	630-650lm
Normal	EW-NCL6W-WW	Warm White	2900-3200k	540-570lm	500-530lm
	EW-NCL6W-NW	Natural White	3900-4200k	570-600lm	530-550lm
	EW-NCL6W-CW	Cool White	5900-6200k	600-640lm	550-580lm
Economy	EW-ECL6W-WW	Warm White	2900-3200k	500-530lm	480-500lm
	EW-ECL6W-NW	Natural White	3900-4200k	530-580lm	500-530lm
	EW-ECL6W-CW	Cool White	5900-6200k	580-610lm	530-550lm

Applications:


1.Recessed lighting, shelf lighting, ceiling/wall coves
2.Cabinet and under counter lighting, office work station
3.Back lighting, step lighting, light boxes
4.Merchandising, exhibition stands, and panels

Shenzhen Ewinled 6W COB LED down lihgt   ( Power :1*6W)
Item No.	EW-DL6W-COB-WW	EW-DL W-COB-W	EW-DL6W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	500-530lm	530-550lm	550-580lm
Size(Mm)	Ø90*H75mm
Installation Size	Ø75mm

Shenzhen Ewinled 10W COB LED down lihgt   ( Power :1*10W)
Item No.	EW-DL10W-COB-WW	EW-DL10W-COB-W	EW-DL10W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	900-1000lm	930-1030lm	950-1050lm
Size(Mm)	Ø110*H85mm
Installation Size	Ø95mm

Shenzhen Ewinled 15W COB LED down lihgt   ( Power :1*15W)
Item No.	EW-DL15W-COB-WW	EW-DL15W-COB-W	EW-DL15W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	1350-1450lm	1370-1470lm	1400-1500lm
Size(Mm)	Ø138*H105mm
Installation Size	Ø120mm

Shenzhen Ewinled 20W COB LED down lihgt   ( Power :1*20W)
Item No.	EW-DL20W-COB-WW	EW-DL20W-COB-W	EW-DL20W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	1800-1900lm	1850-1900lm	1900-2000lm
Size(Mm)	Ø138*H105mm
Installation Size	Ø120mm

Shenzhen Ewinled 30W COB LED down lihgt   ( Power :1*30W)
Item No.	EW-DL30W-COB-WW	EW-DL30W-COB-W	EW-DL30W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	2500-2700lm	2600-2800lm	2700-2900lm
Size(Mm)	Ø160*H120mm
Installation Size	Ø140mm

Shenzhen Ewinled 40W COB LED down lihgt   ( Power :1*40W)
Item No.	EW-DL40W-COB-WW	EW-DL40W-COB-W	EW-DL40W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	3200-3400lm	3300-3500lm	3400-3600lm
Size(Mm)	Ø180*H120mm
Installation Size	Ø160mm

Shenzhen Ewinled 50W COB LED down lihgt   ( Power :1*50W)
Item No.	EW-DL50W-COB-WW	EW-DL50W-COB-W	EW-DL50W-COB-CW
Color	Warm White	White	Cold White
CT (K)	2700K-3500K	4000K-4500K	5500K-6500K
Lumen Efficiency	3600-3800lm	3700-3900lm	3800-4000lm
Size(Mm)	Ø230*H140mm
Installation Size	Ø200mm

Packaging & Delivery

Packaging Detail:	36pcs/carton. carton size:41*31*36cm
Delivery Detail:	5-10 working days

Mainly Characteristics of LED Light

1, Energy & Power SavingCompare to the traditional incandescent light it can save more than 90% energy under the same

brightness.

2, Ultra-long Life Its using life is about 5-10 times of traditional incandescent light under normal usage conditions.

3, Ultra-low FeverSolid cold light source, epoxy resin encapsulation and little heating tube.

4, Healthy and EnvironmentalNo glare, no UV, no jumpy frequency, no mercury and no lead inside. It won't harm human health

   and the environment.

5, High CRIGood reducibility, clear visual effects and keep the objects undistorted.

6, Not Easily DamagedMade of aero aluminum material to keep it safe from long-distance transportation.


Service:
       1. Your inquiry related to our products or prices will be replied in 24hours.
         2. Well-trained and experienced staffs to answer all your enquires influent English.
         3. OEM & ODM are welcomed, OEM brand is available.
         4. Distributor ship is offered for your unique desigh and some our current models.
         5. Protection of your sales area, ideas of design and all your private information.

About us:
      We are LED lighting factory and have 10 years experience of development and
         production, our main product are: LED Back-lit panel lights, LED Tube lights, LED downlight
       LED Emergency driver,LED Tri-proof light,LED Ceiling light etc.
