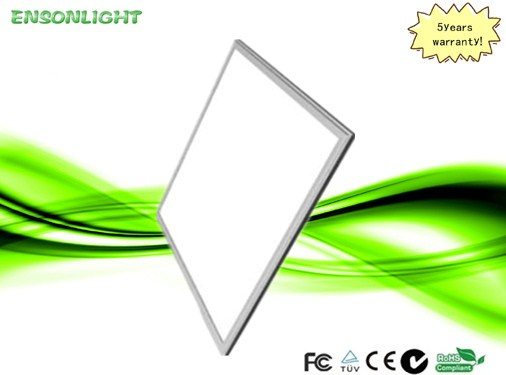

LED PANEL LIGHT ,Flat panel
MAIN SPECIFICATIONS( T=20degree)
ITEM DESCRIPTION
Input Voltage AC90-305V
Power Consumption 52W
Luminous Flux 3500lm(cool white)
3400lm(Natural white)
3200lm(Warm white)
Color Cool white/Warm white/ Natural white
Color Temperature 2700-3300K(Warm white) 4000-5000K (Natural white) 5500-6500K(Cool white)
Life Time >50, 000 Hour
OperatingTemperature -10degree to +40degree
Storage Temperature -20degree to +60degree
Humidity Operating 10-80%
Humidity Storage 10-80%
Luminosity A: >580Lux @1.0M, Cool white) B: 1000Lux @1M CW
>500Lux @1.0M, Warm white) B: 890Lux @ 1M WW
Certifications CE, RoHS
Weight 4.2KGS
Size 595*595*12mm
IK Code IK04
IP Code IP41
Luminaires Class Class
Fixing Ways Recessed, Surface Mounting, Suspended
LEDs Lumen Attenuation:
Operating time(hours) Lumen decrease(%)
5, 000 2.4
10, 000 5.2
20, 000 11.3
50, 000 24.5
Notes:
All dimension units are millimeters.
All dimension tolerance is ± 0.5mm unless special request.
Standard size is 595*595mm.
We also supply 593*593mm(Iran)/598*598mm/615*615mm(Germany)
Led flat panel Packing:
Carton Size: 720*720*110mm (4pcs/ctn)
Net weight: 20kgs.
Gross weight: 24kgs.
Remark:
1), This product should be installed by trained electricians.
2), Check integrality of the products when unpack the packing.
3), The distance between the light and any flammable materials must not be less than 0.2m. The distance between the upper part of the installed light and the ceiling must not be less than 2 cm. The light must not be installed into ceilings or walls that contain heat-insulating material.
4), The main cable must not connect with the low voltage cable or the surface-mounted lights.
5), Guide the lights' connecting cables through the drilled-out hole, and fix the surface-mounted lights with the pre-fitted clips. Make sure that these are securely connected to the base material.
6), When laying the cables, make sure that the cables and plugs are not subjected to any tensileor twisting forces. Fit the cable tension relieving mechanisms to the connection points of thesurface-mounted lights. Do not kink cables. Output cables should be laid separately and at a distance from other cables.
7), After installation, connect the transformer to the mains supply.
Enson Light Co., Ltd is a professional manufacturer who focus on manufacturing LED Panel Lights, LED high bay light, LED flood light and tri-proof LED light since 2005. We have more than 10 experienced engineers to support customers' Requirement, we also cooperate with worldwide technical partner who have more than 50 years experiences on electronic filed and intelligent control to offer LED technical solutioin. We use Meanwell driver and all of our LED lights passed CE, RoHS, TUV, UL testing. We always focus in quality control, we offer 5 to 7 years warranty for our LED panel light and other LED lights. We also use high quality LED to assembling our products, Such as Lumen LED, CREE LED, SCC LED and Nichia LED, Epistar LED and Brightlux LED. The LED efficiency is over 120LM/W. Enson Light care about every small factor. We believe that quality comes from all details! Our vision is offering and making LED lighting affordable, safving more and more energy for our planet.
Histroy:
-2005: Enson Light is setup after few years initial research on LED lighting.
-2006: Enson Light releases an advanced LED Panel Light rang with features and high proformance, The flat panel adopt no -shadow technology, with 90% transformer rate Mitsubishi light guide plate and diffuser, to make the lighting distribution is soft and comfortable. 100LM/W Taiwan Epistar LED light source, and a patent self-design heat sink allowing Enson Light to offer an industrial leading 5years warranty.
-2007: Enson Light begins cooperate with Japan company YASHIMA to develope a new conception LED tube light with no polary features, light on the tube light by connecting any two pins of the tube, to avoid damaged the tube by any connectio mistak and to insure the installation worker' S security.
-2008: Enson Light start to launch LED high bay light after few years research and development. We use Meanwell LED driver, 130lm/W Bridgelux COB LED, patten design copper cooling system to offer 5years warranty, It is very popular in our Europe market.
-2009: Enson Light launched 0/1-10V dimmable LED panel light and emergency LED panel light, emergency time is over 3hours. At same time, Start to cooperate with No. 1 wholesaler in UK and be their only designated LED lights supplier.
-2010: Enson Light research and develop the IP65 tri-proof LED lamp, we passed 10 meters drop testing, IP65 waterproof testing and Corrosion testing.
-2011: Enson light released the unique and leading LED pane light in LED industrial with color rendering index 92, Passed customer testing in professional third part Germany lab.
-2012: Enson Light start to research and develop WiFi control system cooperated with Japan NETLED company, Enson LED Panel light, LED tube light, LED high bay can be controlled by PC, iPhone or smart phone, or Remotely control is valid too. Ismart LED light is born.
-2013: Enson Light finish testing I smart LED lighting system. You can dimme the time from 0-100%, saveing more energy for us.
-2014: Enson light start to research and testing DALI dimmable LED panel.
What we can do for you:
-Offering Quality LED products with 5 years warranty to you.
-Offering the best LED light solutions for you.
-Offer professional and 5-star service and technical support.
If you would like to find a suitable and professional supplier for LED lights,
If you would like to buy the steady quality LED products,
If you would like to find a long-term partner,
If you would like to win in the sharp competitive LED panel light market,
Please don' T hesitated to contact with us now! We will be your right and regretless choice!
