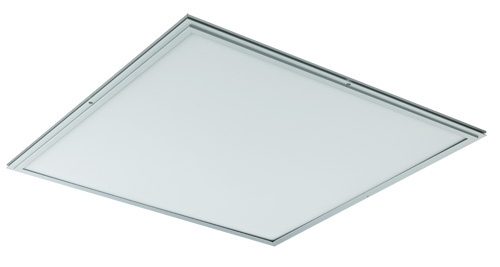

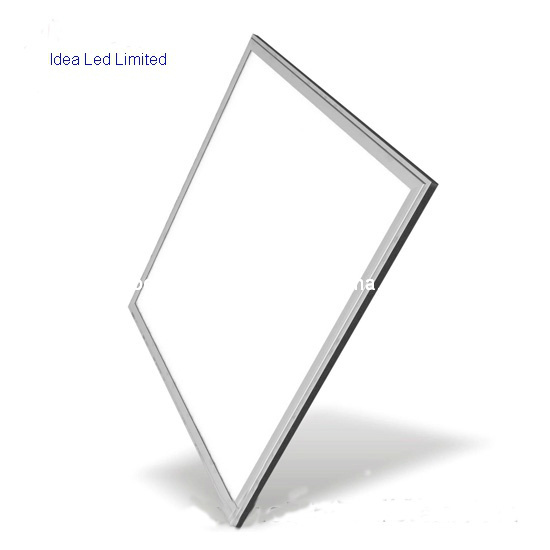

600*600mm 45W led light panel from China manufacturer
Part Number: OED-P606045W-G0422;
Input Voltage: AC100~240V± 10%; 50/60Hz;
Input Power: 45W;
Power Factor: ≥ 0.98;
LED Current: 30mA;
Luminous Flux: 3300-3500LM;
LED Power: 0.1W;
LED Quantitys: 448PCS 3014SMD LED;
Life Time: 50000H;
LED Color: White/Warm white /Red/Green/Blue;
Color Rendering: Ra≥ 75;
Fixture Material: 6063 Aluminium;
Protection Level: IP20;
Safety Level: I Type;
Temperature: -20º C~+50 º C;
Size: 600(L) × 600(W) × 11(H);
Net Weight: 3.8kgs
Packing: 650*650*100mm/ carton, with driver attached back side.
Carton with form protected, suitable for long distance transport.
Advantages:1. Energy-saving up to 70% lighting output;
high aluminum alloy thermal conductivity, good heat dissipation;
2. High optical PMMA material, light output and high efficiency, non-glare, very soft and comfortable lighting;
3. Wide range of input voltage: 100 to 240V AC/50-60Hz, wide-voltage power supply to ensure product suitability and stability;4. Special circuit design, each group of LEDs work separately, avoiding any problem of lighting output
caused or influenced by one broken LED;
5. No RF interference, mercury free;

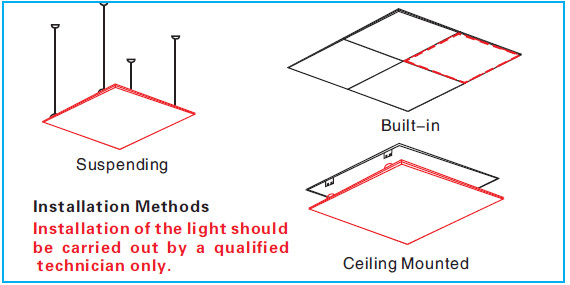

6. Ultra-thin design, beautiful and easy to install. With holes at the aluminum frame, which can be suspended by steel wire.
|
Item No. |
Material |
Product Size |
Power |
LED type |
Color temperature |
Lifespan |
Warranty |
Certificate |
|
OED-P606045W-G0420 |
Aluminum+
PMMA |
600*600*11MM |
45W |
SMD3014 |
2700-6500K |
50,000hours |
24 months |
CE, RoHs |
OED Group Limited was founded in 2007. We are an export-oriented manufacturing enterprise with sales companies in Shanghai, Kunshan, Shandong, Shenzhen of China. We have 8 years of professional experience in production and trading. We have the ability to provide our customers an extensive range of high quality products with competitive prices.
Our Main products are R7s/G12/G8.5/G24 LED bulbs, LED candle/global/corn bulbs, LED spot/down lamps, LED tube light, LED panel lighting, LED flexible strip, LED yard lamps.
. All of them have got CE, EMC, LVD and RoHS approvals, and some of them have also passed TUV, GS, PSE and UL certification. "Superior quality products, perfect after-sales service and competitive prices" is our target. We are looking forward to establishing mutually beneficial cooperation with you for a long time.
We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the good quality at the reasonable price.
