Home LED Light Products 600*600 48W LED Square Panel Light

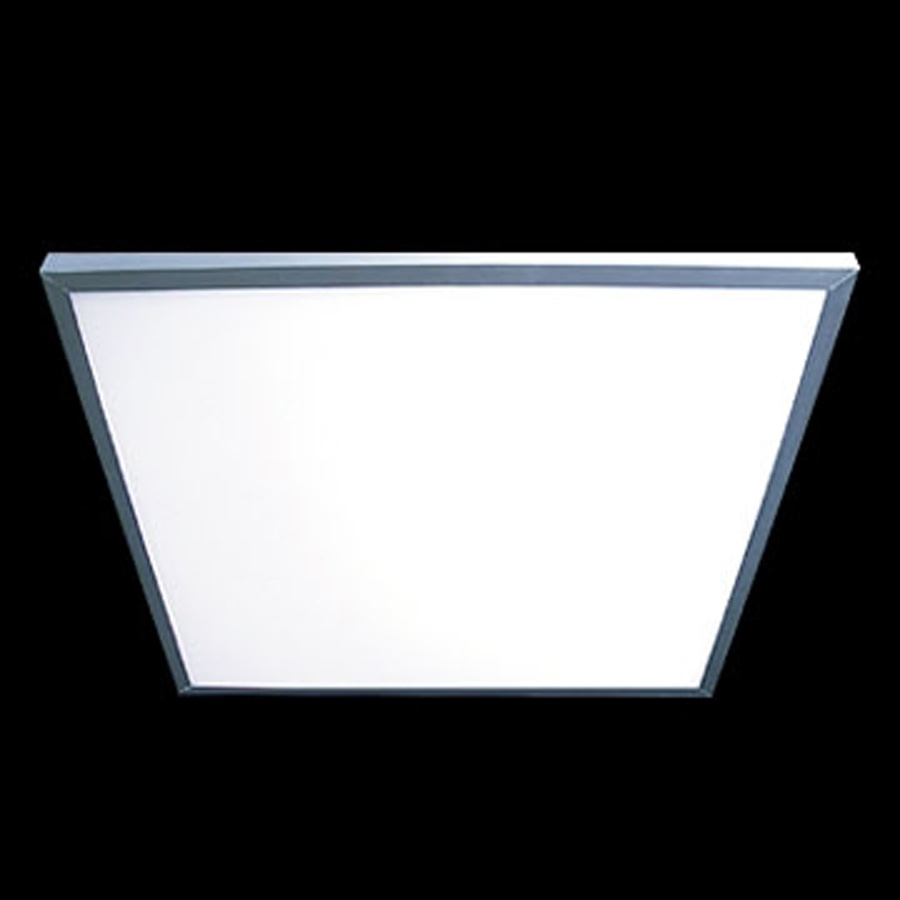

600*600 48W LED Square Panel Light

600*600 48W LED Square Panel Light
Price: US $ 65-68/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 5/Piece
Pay Type: T/T,Paypal,Western Union
LED Panel Light. 600*600*12mm. 48W. AC85-265V. 3800LM. 170degree. 624pcs 3014SMD

A professional LED panel light manufacturer and supplier, and an outstanding led panel light designer -- Mucheng led Lighting


Short Description of LED panel light:

1. AC85V-265V, 10W-72W
2. Round and square are available
3.3 years warranty
4. CE&RoHS

Features of led panel light:
1. Led panel light Adopt Taiwan import Lumenmax SMD LED3014, single luminous flux 11LM
2 light guide plate procurement of imported materials, light rate more than 80%
3. Led panel light Pure aluminum frame, bright silver processing, good heat dissipation, more upscale appearance
4. Led panel light Uniform optical effects, without dark space, efficiency > 70LM/W
5. Led panel light Isolated constant current power supply, wide voltage input, output voltage: DC30-40V, more safer
6. Led panel light Unique frame design, embedded installation without accessories, more money

Application of led panel light

1. Commercial Lighting \Office Lighting \Warehouse Lighting \Supermarket Lighting;
2. IT, Call Centers, Shops and showrooms, Kitchen/pantry, hospitals, hotels, and other public places.

Way to install:
1. Hanging
2. Embbeded
3. Ceiling

Note:
1. When installation, try to avoid the minefields, strong magnetic field and high-pressure region.
2. Ensuring a solid connection correctly in order to avoid short-circuit damage to components and trigger fires.
3. Installed in a well-ventilated place to ensure appropriate environmental temperature.
4. Using this product, please check the local voltage compliance product requirements.
5. To prohibit the live wiring, check to confirm wiring is correct, check the no short-circuit, and then power!
6. In case of failures, do not maintenance in private.

Application:
Airport, Bedroom, Car Park, Church, Cinema, Gallery, Garage, Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room
Item size(mm) Wattage Lumem Dimmable or non dimmable Voltage  Quantity / SMD Color
PL-PA3030-20W 300*300*9.8 20W 1600±100lm non-dimmable  85~265V 154 3014SMD 2800~7000k
PL-PA3030-20W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA3030-25W 300*300*12 25W 2000±100lm non-dimmable  85~265V 308 3014SMD 2800~7000k
PL-PA3030-25W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA3060-20W 300*600*9.8 20W 1600±100lm non-dimmable  85~265V 216 3014SMD 2800~7000k
PL-PA3060-20W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA3060-25W 300*600*12 25W 1600±100lm non-dimmable  85~265V 216 3014SMD 2800~7000k
PL-PA3060-25W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA6060-38W 600*600*9.8 38W 2900±100lm non-dimmable  85~265V  312 3014SMD 2800~7000k
PL-PA6060-38W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA6060-40W 600*600*12 40W 3100±100lm non-dimmable  85~265V 432 3014SMD 2800~7000k
PL-PA6060-40W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA6060-48W 600*600*12 48W 3800±100lm non-dimmable  85~265V 624 3014SMD 2800~7000k
PL-PA6060-48W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA6060-60W 600*600*11.5 60W 4800±100lm non-dimmable  85~265V 624 3014SMD 2800~7000k
PL-PA6060-60W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA30120-38W 300*1200*9.8 38W 2900±100lm non-dimmable  85~265V 432 3014SMD 2800~7000k
PL-PA30120-38W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA30120-40W 300*1200*12 40W 3100±100lm non-dimmable  85~265V 432 3014SMD 2800~7000k
PL-PA30120-40W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA30120-48W 300*1200*12 48W 3800±100lm non-dimmable  85~265V 624 3014SMD 2800~7000k
PL-PA30120-48W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA30120-60W 300*1200*11.5 60W 4800±100lm non-dimmable  85~265V 624 3014SMD 2800~7000k
PL-PA30120-60W-DIM Dimmable 110V/220VAC 2800~7000k
PL-PA60120-60W 600*1200*11.5 60W 4800±100lm non-dimmable  85~265V 432 3014SMD 2800~7000k
PL-PA60120-60W-DIM Dimmable 110V/220VAC 2800~7000k

Prod Model: PL-PA6060-48W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty: 3 Years
Size: 600*600*12mm
Lumen: 3800
LED Chip: 3014SMD
Light Source: LED
Certification: RoHS
Voltage: 85V-265V
Dimmable: With Dimmable
Appearance: Square , Around
Type: Hanging , Embedded . Ceiling
Emitting Color: Warm White, Natural White, White, RGB
Housing Material: Aluminum
Beam Angle: 170
Shenzhen Preter Lighting Co., Limited, is a professional manufacturer which specializes in LED commercial and industrial lighting products located in Shenzhen China. We use high quality LED chips from USA and Taiwan, and most of our products are used with welding rods machines, auto sorting machines to keep products finished in shorter time and better quality.

In the past years, we always put our main focus on quality and service, we believe that customer's need is the root, quality is the key and service is essential. With this kind company policy, we receive clients' deep credit and sound good reputation in the market of LED lights. Now we have exported large scale to many countries all over the world.

We mainly focus on LED tube, LED high bay light, LED flood light, LED strip and so on. We use USA Bridgelux chip and Taiwan Epistar chip for LED. Most of our products are deeply enjoyed in European and American markets.

Preter Lighting always pays close attention to customers requirements and new products development. Our R&D team not only has rich practical operating experience, but also can help our customers to develop high quality new products with low cost. This high efficient and energetic team is good at overcoming all kinds of obstacles.

Providing 'Quality Products, Excellent Service, Competitive Prices and Prompt Delivery', we are looking forward to more greater cooperation with overseas customers based on mutual benefits and strive for long-term development with customers together.

Innovation is our pursuit

Quality is our life

Customer satisfaction is our goal
