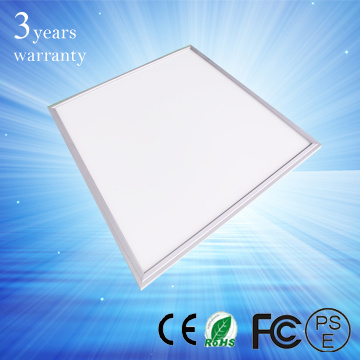

600*600 36W LED Panel Light
LED Panel Light Specification and light sources
Ecother LED panel light can classified by SMD LED light sources: SMD3528 LED panel light, SMD2835 LED panel light, SMD5630 LED panel light. According to the specification can be divided: 300x300mm LED panel light, 300x600mm LED panel light, 300x1200mm LED panel light, 600x600mm LED panel light, 620x620mm LED panel light, 600x1200mm LED panel light. SMD5630 and SMD2835 LED panel light CRI>80. You can choose any kinds of light source and size combined you satisfied products.
LED panel light key features,
1. Ultra slim, only 12mm;
2. Very attractive appearance and special design of LED Edge-Lit technology;
3. Uniform lighting, no dark place;
4. LED panel light chips: SMD5630/ SMD2835
5. CRI>80
6. LED panel light Size: 300*300, 300*600, 300*900, 300*1200, 600*600, 620*620, 600*1200mm;
7. LED panel light color: R, G, B, WW, NW, CW, RGB, etc;
8. Dimmable LED panel lights available;
9. No flickering, buzzing and RF interference;
10. LED panel light certificates: CE, RoHS, FCC, PSE Approval;
11. LED panel light warranty: Three years.
LED panel light Pictures FYI,
LED panel light Installations: Recessed, Surface Mounting, Suspending available.
LED panel light Application:
Conference, Meeting Room, Office, Bank, Hospital, Residential, Institution, Commercial Building;
Hotel, Restaurant, School, Library, Subway Station, Airport, Bus and Train Station, etc.
The Same series LED Panel light,
|
Model |
Power |
LED Type |
Dimentions(mm) |
CCT |
Luminous Flux |
Input voltage |
Net Weight |
CRI |
|
ET-PL-R18-10W |
10W |
SMD5630/2835 |
Φ180*12 |
2800-7000K |
900±10%lm |
AC85-265V |
0.4±0.1Kg |
CRI >80 |
|
ET-PL-R24-18W |
18W |
SMD5630/2835 |
Φ240*12 |
2800-7000K |
1600±10%lm |
AC85-265V |
0.6±0.1Kg |
|
ET-PL-S3030-18W |
18W |
SMD5630/2835 |
300*300*12 |
2800-7000K |
1600±10%lm |
AC85-265V |
1.2±0.2Kg |
|
ET-PL-S3030-30W |
30W |
SMD5630/2835 |
300*300*12 |
2800-7000K |
2900±10%lm |
AC85-265V |
1.2±0.2Kg |
|
ET-PL-S3060-36W |
36W |
SMD5630/2835 |
300*600*12 |
2800-7000K |
3200±10%lm |
AC85-265V |
2.4±0.2Kg |
|
ET-PL-S6060-36W |
36W |
SMD5630/2835 |
600*600*12 |
2800-7000K |
3200±10%lm |
AC85-265V |
4.2±0.3Kg |
|
ET-PL-S6060-48W |
48W |
SMD5630/2835 |
600*600*12 |
2800-7000K |
4300±10%lm |
AC85-265V |
4.2±0.3Kg |
|
ET-PL-S6060-54W |
54W |
SMD5630/2835 |
600*600*12 |
2800-7000K |
4800±10%lm |
AC85-265V |
4.2±0.3Kg |
|
ET-PL-S6060-72W |
72W |
SMD5630/2835 |
600*600*12 |
2800-7000K |
6000±10%lm |
AC85-265V |
4.2±0.3Kg |
|
ET-PL-S6262-36W |
36W |
SMD5630/2835 |
620*620*12 |
2800-7000K |
3200±10%lm |
AC85-265V |
4.5±0.3Kg |
|
ET-PL-S6262-48W |
48W |
SMD5630/2835 |
620*620*12 |
2800-7000K |
4300±10%lm |
AC85-265V |
4.5±0.3Kg |
|
ET-PL-S6262-54W |
54W |
SMD5630/2835 |
620*620*12 |
2800-7000K |
4800±10%lm |
AC85-265V |
4.5±0.3Kg |
|
ET-PL-S3012-36W |
36W |
SMD5630/2835 |
300*1200*12 |
2800-7000K |
3200±10%lm |
AC85-265V |
4.5±0.3Kg |
|
ET-PL-S3012-54W |
54W |
SMD5630/2835 |
300*1200*12 |
2800-7000K |
4800±10%lm |
AC85-265V |
4.5±0.3Kg |
|
ET-PL-S3012-72W |
72W |
SMD5630/2835 |
300*1200*12 |
2800-7000K |
6000±10%lm |
AC85-265V |
4.5±0.3Kg |
|
ET-PL-S6012-54W |
54W |
SMD5630/2835 |
600*1200*12 |
2800-7000K |
4800±10%lm |
AC85-265V |
9.8±0.3Kg |
|
ET-PL-S6012-72W |
72W |
SMD5630/2835 |
600*1200*12 |
2800-7000K |
6000±10%lm |
AC85-265V |
9.8±0.3Kg |
