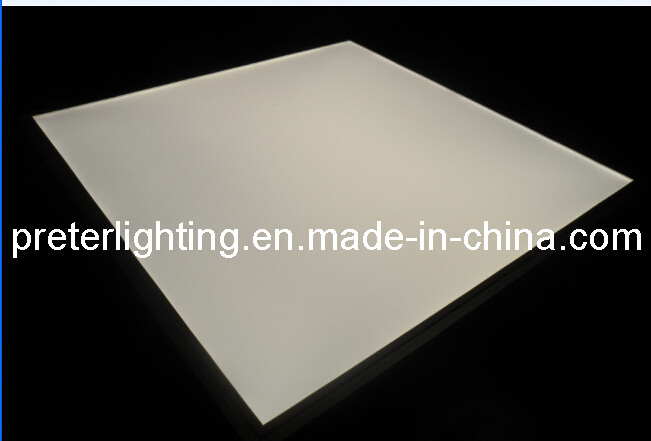

LED Panel Light. 600*600*12mm. 25W. AC110/220V. 2000LM. 170degree. 308pcs high power 3014SMD
1. Energy saved up to 50%. High intensity
2. Different driver option: A. 110V driver. B. 1-10V dimmable driver 220V. C. 1-10V dimmable driver 110V
3. New inner high efficiency (95%) With heat protection system, the constant current driver can work under unstable voltage.
4. Special circuit design, each LED can work separately thus it can avoid the influnence that a broken LED causes.
5. Working Temperature: -20~ 40
6. No RF interference
7. Package Info: Ctn size: 68*65*32.5cm, 5pcs/ctn, Gross Weight: 22KG/ctn, Volumetric Weight: 28KG/ctn.
8. Warranty: 3 years.
Applications:
Hotels
Factories & Offices
Commercial Complexes
Residential/Institution Buildings
| Item | size(mm) | Wattage | Lumem | Dimmable or non dimmable | Voltage | Quantity / SMD | Color |
| PL-PA3030-20W | 300*300*9.8 | 20W | 1600±100lm | non-dimmable | 85~265V | 154 3014SMD | 2800~7000k |
| PL-PA3030-20W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA3030-25W | 300*300*12 | 25W | 2000±100lm | non-dimmable | 85~265V | 308 3014SMD | 2800~7000k |
| PL-PA3030-25W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA3060-20W | 300*600*9.8 | 20W | 1600±100lm | non-dimmable | 85~265V | 216 3014SMD | 2800~7000k |
| PL-PA3060-20W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA3060-25W | 300*600*12 | 25W | 1600±100lm | non-dimmable | 85~265V | 216 3014SMD | 2800~7000k |
| PL-PA3060-25W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-38W | 600*600*9.8 | 38W | 2900±100lm | non-dimmable | 85~265V | 312 3014SMD | 2800~7000k |
| PL-PA6060-38W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-40W | 600*600*12 | 40W | 3100±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA6060-40W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-48W | 600*600*12 | 48W | 3800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA6060-48W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA6060-60W | 600*600*11.5 | 60W | 4800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA6060-60W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-38W | 300*1200*9.8 | 38W | 2900±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA30120-38W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-40W | 300*1200*12 | 40W | 3100±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA30120-40W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-48W | 300*1200*12 | 48W | 3800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA30120-48W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA30120-60W | 300*1200*11.5 | 60W | 4800±100lm | non-dimmable | 85~265V | 624 3014SMD | 2800~7000k |
| PL-PA30120-60W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
| PL-PA60120-60W | 600*1200*11.5 | 60W | 4800±100lm | non-dimmable | 85~265V | 432 3014SMD | 2800~7000k |
| PL-PA60120-60W-DIM | Dimmable | 110V/220VAC | 2800~7000k |
