name:600*1200 72w led panel lights project light.
advantages:

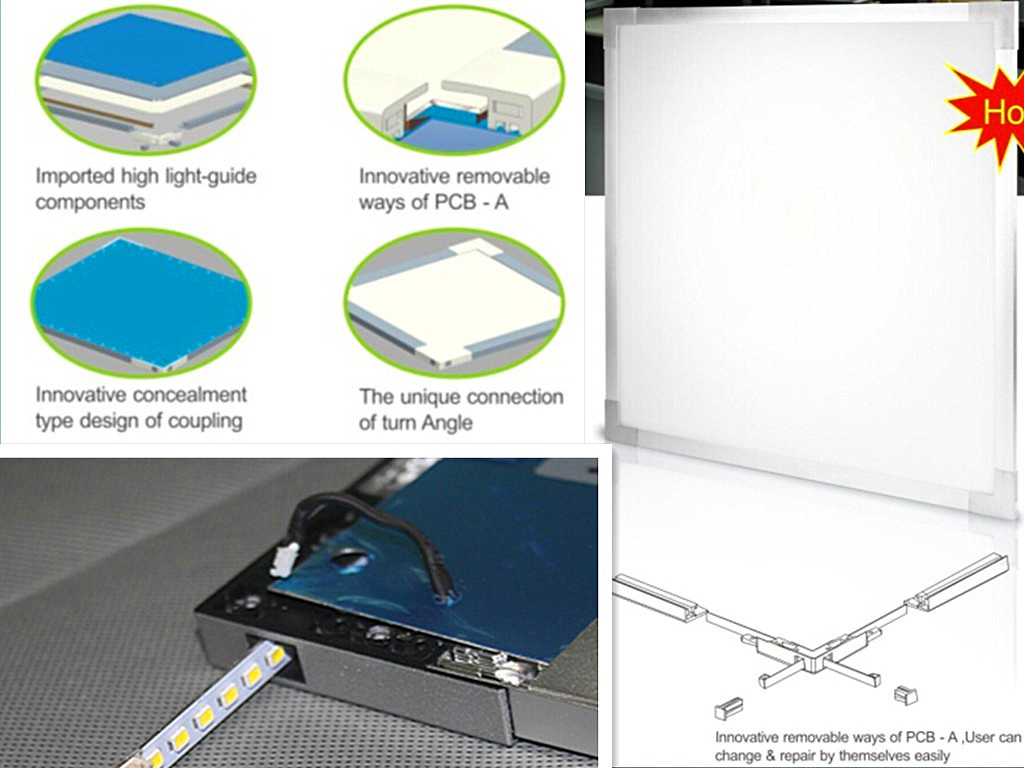

1)This perfect design is the first time to be published in public;
2)The led strip can be changed very easily, convenient to repair it;
3)no screw design, beautiful and clean;
4)strong anti impact ability, LED chip not in contact with the light guide plate directly;
5)Shorten delivery time, after the bulk, we can do 1000pcs/day.
LED Panel light---Sample is OK.
Feature of led panel: PC+Aluminum, 36w, 2880lm, 2700-7000K, SMD2835, 3 years warranty, LGP4mm, CE and ROHS
Model |
LED Power |
Optical parameter |
LGP |
Input Voltage |
CCT. |
LED |
Beam Angle |
|
|
Ra |
Flux |
|
|
|
Part Decal |
Q'ty |
|
FEP-3030-12-J |
12W |
>80 |
960LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
66 |
160° |
FEP-3060-25-J |
25W |
>80 |
2000LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
120 |
160° |
FEP-3012-36-J |
36W |
>80 |
2880LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
264 |
160° |
FEP-6060-36-J |
36W |
>80 |
2880LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
180 |
160° |
FEP-6060-50-J |
50W |
>80 |
4000LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
360 |
160° |
FEP-6262-36-J |
36W |
>80 |
2880LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
180 |
160° |
FEP-6012-72-J |
72W |
>80 |
5760LM |
4mm |
100~240V FIER |
2800-3300K 4000-4500K 6000-6500K |
SMD2835 |
360 |
160° |
Application |
Hotels, meeting rooms, factories, offices, residential, school, hospital ect. |
LED chip |
SMD2835 |
Installing |
Hunging/Embedded/Ceiling |
Features:
1) Power: AC85~265V particularly for the areas with larger voltage fluctuations worldwide voltage.
2) 10 year warranty, for led source and driver.
3) Power factor ≥ 0.95.
4) Import quality Epistar led,efficiency >85lm/W (side emitting),Ra>80.
5) Unique design of appearance structure,IP40,ultra-thin frame,small size,elegant appearance thickness is 9.5mm
6) Operation fast response, no flicker, no noise.
7) Anti-radio interference, in line with the CE requirements.
8) Lead-free, green, RoHS compliant.
9) Innovative optical design, uniformity of more than 95%.
10) Strong impact resistance, anti-lightning strong, ultraviolet (UV) and infrared (IR) radiation.
11) The color temperature range of CCT :2800-3300K,4000-4500K,6000-6500K.
12) Security: Fully complies with CE and FCC standards,
13) No cost of maintenance and easy installation
14) Material: Japan Mitsubishi brand light guide plate
15) Achieve the the Photobiological requirements (non light pollution)
16) Low thermal voltage, safe and reliable. Special circuit layout and good heat dissipation, Surface temperature ≤ 40 °C (Ambient temperature Ta = 25 °C pm).
17) Constant current drive, to ensure life and brightness from voltage fluctuations.
Packaging & Shipping
1. Pack:
Qty per Unit Packing: 1 pcs in a single carton.
Size: Different product has different data.
2. Sample shipping way:
DHL, EMS, FEDEX, UPS and so on. It is changeable.
3. Cargo shipping way:
By sea or by air. Depending on you.
Our Services
1. Before sales:
Confirm the details, reply on time, offer detailed information, meeting the customer's need and so on.
2. After sales:
Follow the production and delivery, feedback and solve your question fast, track regularly, warranty 2-3 year and so on.
