Item:

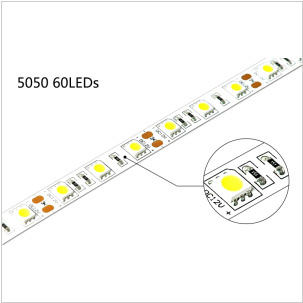

60 led/m DC12V SMD5050 led flexible strip light
Package:5m/Reel
TECHNOLOGY DATA:
1)Wattage: 4.8W per meter, Current: 0.4A per meter.
2)Available in different lengths: 0.5m or 1m, packing: 5meters/reel.
3)Each unit of 3 LEDs can be cut off at regular segments without damaging the rest ribbon.
FEATURE:
1)Available in full range of single-color : red, yellow, blue, green, white etc.
2)Easy to install by the 3M tape on the PCB back.
3)Low power consumption. High intensity.
4)Beam angle: 140 degrees.
5) Easy connection with snap-in connectors.
6) Solid-state, high shock and vibration resistant.
7) No RF interference.
8) Long life 100,000+ hours (10+ years).
9)Certifications: RoHS and CE.
Applications:
1) Car decoration
2) Architectural decorative lighting
3) Archway, canopy and bridge edge lighting
4) Amusement park, theater and aircraft cabin mood lighting
5) Emergency hallway lighting
6) Auditorium walkway lighting
7) Stairway accent lighting
8) Concealed lighting
9) Backlighting for signage letters
10) Channel letter lighting
11) Emergency exit path lighting
12) Cove lighting
ItemType | flexible led strip |
| Other name |
IP20/IP65/IP67/IP68 waterproof rgb Flexible led strip with 5meter rolls |
Qty of led per meter | 60pcs (30/ 60 / 78 / 96 /120 / 180 / 240 for 3528 wholesale 60led m 3528 5050 flexible led strip can be choosed ) |
| Wattage | 4.8W per meter ( 2.4W / 4.8W / 6.24W / 7.68W / 9.6W / 14.4W / 19.2W optional ) |
| SMD | SMD3528 ( SMD5050/3014/3528/2835/5630/5730 Optional ) |
| Waterproof Rate | IP20 / IP65 / IP66 / IP68 |
| Color of FPC board | Brown / White / Black Optional ) |
| Lumen / led | 3-4lm / 4-5lm / 5-6lm / 6-7lm / 7-8lm Optional |
| Voltage | 12V / 24V / 110V / 220V type Optional ) |
| Colour temperature | Warm White,Pure White,Cool White |
| beam angle | 120° |
| Dimmerable | Optional |
| Feature |
1.ultra -thin FPC,ultra-flexible,can be bent as you like,can be fixed at any irregular place with beautiful color
2.flexible printed circuit,can be cut and connected as you like
3.3M adhesive tape on backside, easy to install,Can be fixed at any place
4. can be used indoor/outdoor,in the water.
5.Low power consumption |
Application |
1.Widely used for home decoration use, hotels, clubs, shopping malls 2.Architectural decorative lighting, boutique atmosphere lighting
3.Extensively applied in Backlighting, concealed lighting, channel letter lighting
4.Emergency & security lighting, advertisement sign lighting
5.Decorative lights for holiday, event, show exhibition
6..Applicable for automobile and bicycle decoration, border or contour lighting |
Advantage |
1.Wide application
2.Low cost
3.Easy to install
4.12/24V Low voltage,Security Products Products
5. no color difference ,good weld technology |
Certificate | CE,ROHS,EMC,LVD |
| Service | OEM,ODM,custom |
