Specifications

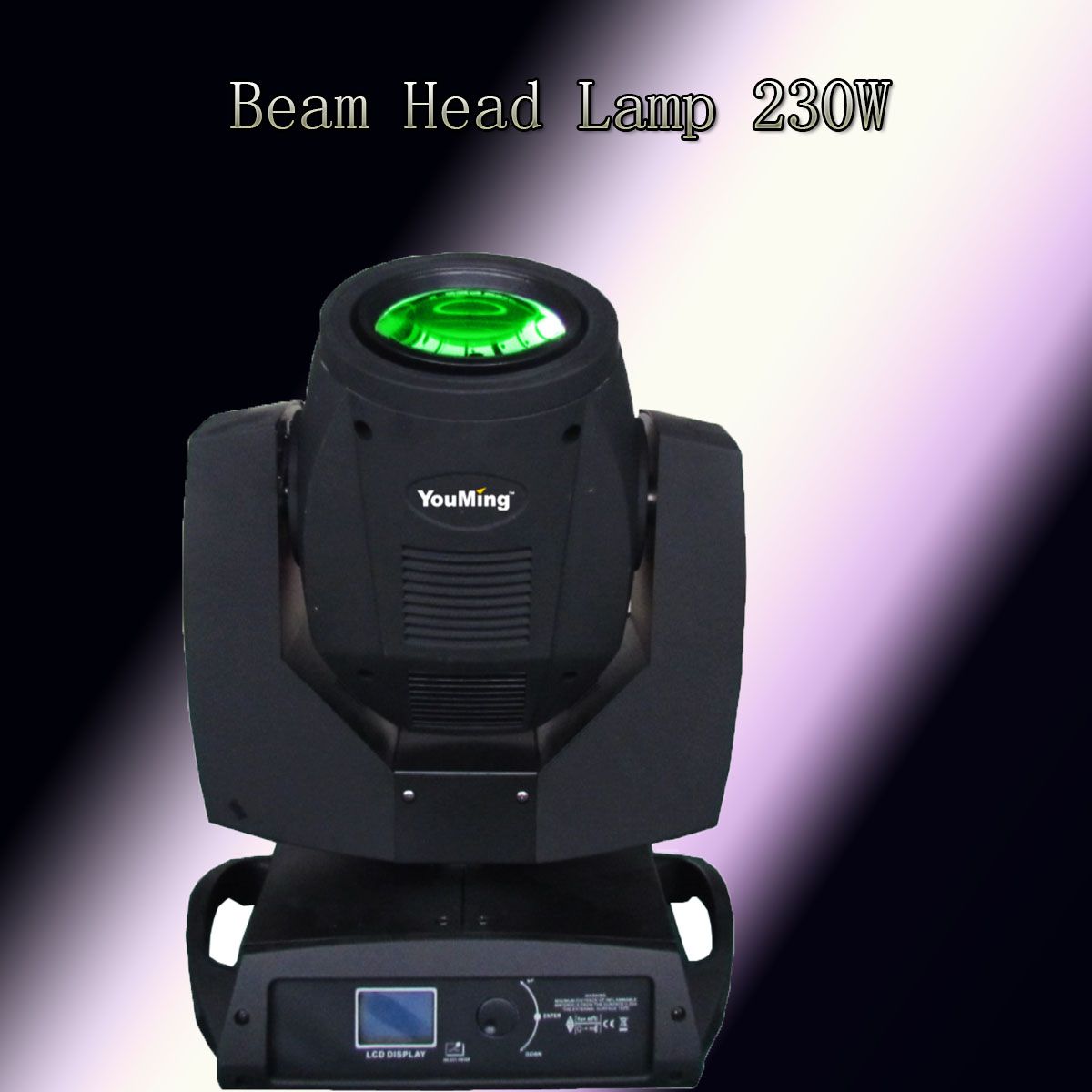

Optional light: 230W 7R Osram Siruis
Imput voltage: AC90-240v 50/60HZ
Power consumption: 250W
Display : LED red / blue dot- matrix display,
or LCD display can be inverted 180 display,
you can record time and light the lamp usage time
Control Protocol: DMX512
Channel: 16CH
Lens: Yilong triple precision optical lens group
Dimmer: 0-100% linear
Strobe: strobe the hightest frecuency of
bilateral knife 13 times per second and can
select a random strobe and pulse strobe
Beam angle: horizontal beam angle 0-3.8
Prism: 8 prism plus rotating prism effect
Focus: Electronic focus
Atomization: 0% - 100% atomization
Horizontal scan: 540 (160 bit precesion scanning)
electronic correction
Vertical scan: 540 (160 bit precision scanning)
electronic correction
Vertical scan: 270 (16 bit precision scanning)
electronic correction
Gobos: 17 gobos with rainbow effect and the effect
of bi-directional rotation pattern jitter
Color wheel: 14 color film, with bi-direction rotation,
color and panchromatic half rainbow effect,
panchromatic color walking and walking two
modes half
Housing: black or white options ( private mode)
Lamps connection: 3-pin signal line input
and output, power input
Cooling System: Cooling fan and aluminum
Heat sink
Channels:
CH1: Color wheel
CH2: Gobo CH3: Strobe
CH4: Dimmer
CH5: X pan
CH6: Y tit
CH7: Prism
CH8: Prism rotation
CH9: Atomization
CH10: Focus
CH11: XY speed
CH12: Pan fine
CH13: Tilt fine
CH14: Zoom
CH15: Lamp on/lff
CH16: Reset
