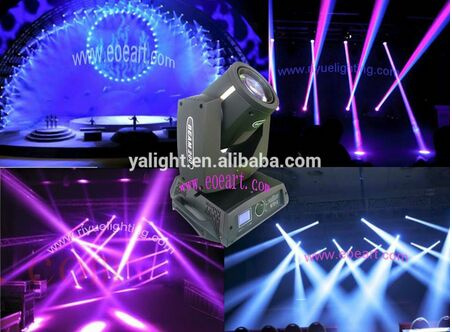

200W Sharpy 5R Beam Moving Head Light
specifications: |
Operating Voltage | 110-240VAC, 50-60 Hertz |
Light Source | Philips MSD 5R lamp, 2,000 hours |
Power | 200 W |
Color | 14 color + blank color wheel |
Gobo | 17 fixed gobo + blank gobo |
Prism | Rotation 8-face prism, Bilateral rotation |
Lens | High precision optical lens,strong light transmittance optical lens |
Focus | Linear adjustment |
Dimmer | 0-100% linear adjustment |
Beam angle | parallel beam angel 0 - 3.8° |
Strobe | Double lens strobe (0.5-20 times/ second) |
Control mode | Standard DMX512, Automatic and Master/ slave mode |
Channel | 16/20 CHS |
IP Rate | IP20 |
Weight | 19KG |
Size | (LxWxH): 340X310X450mm |
DMX Channel
No. | Function | DMX Value | Function Describe |
CH1 | Color | 0-8 8-15 16-23 24-31 32-39 40-47 48-55 56-63 64-71 72-79 80-87 88-95 96-103 104-111 112-127 128-191 192-255 | White Color1 Color2 Color3 Color4 Color5 Color6 Color7 Color8 Color9 Color10 Color11 Color12 Color13 Color14 Rainbow Effect Slow-Fast Clockwise Rainbow Effect Slow-Fast Anti Clockwise |
CH2 | Strobe | 0 1-50 51-240 241--255 | Close Open Strobe slow -fast open |
CH3 | Range | 0-255 | Range of Switch |
CH4 | Gobo | 0-6 7-13 14-20 21-27 28-34 35-41 42-48 49-55 56-62 63-69 70-76 77-83 84-90 91-97 98-104 105-111 112-118 119-127 128-191 192-255 | White1 Gobo2 Gobo3 Gobo4 Gobo5 Gobo6 Gobo7 Gobo8 Gobo9 Gobo10 Gobo11 Gobo12 Gobo13 Gobo14 Gobo15 Gobo16 Gobo17 Rainbow Effect Slow-Fast Clockwise Rainbow Effect Slow-Fast Anti Clockwise |
CH5 | Prism | 0-127 128-191 192-255 | Angle Slow-Fast Clockwise Slow-Fast Anti Clockwise |
CH6 | Prism Rotation | 0-255 | Prism Rotation |
CH7 | Reserve | 0-255 | 0-255 |
CH8 | Frost | 0-255 | None-Frost |
CH19 | Focus | 0-255 | Nearà Far |
CH10 | Pan | 0-255 | 0-540° |
CH11 | Pan Fine | 0-255 | 0-2.1° |
CH12 | Tilt | 0-255 | 0-270° |
CH13 | Tilt Fine | 0-255 | 0-1.0° |
CH14 | XYSpeed | 0-255 | Fastà Slow |
CH15 | Reset | | |
CH16 | Lamp | | Preheat |
