Features :
1.with a very bight philips lamp
2.powerful beam effect with output of 50000 lumen at 20m.
3.with speed adjustable and double direction 8 facet rotating prism,freewill location.
4.it offers 14 colors ,with speed adjustable and double direction rotation stream and rainbow effect.
17 gobos ,with gobos shaking effects .
5.with it's light weight ,it is small enough to be used in many place ---on trusses ,at live and on stage ,TV events ,in showrooms and conference rooms,etc.
Technicial Parameter :

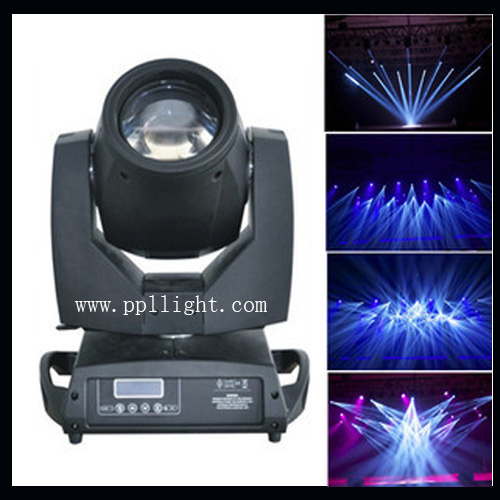

Products Name: 200W Beam Moving head light
Item No.: PPL- M5R200
Power supply: AC90-245V, 50/60Hz
Ballast: Electromagnetic Ballast or Electronic Ballast
Power consumption: 200W
Packing dimensions: 53.5 X 400 X 41cm
N.W:16 kgs
G.W: 17kgs
Pan and tilt movement :
8 and 16 bit resolution
For smooth and precise motion
Movement: Pan: 360° /540° Optional, Tilt: 270°
Speed of pan/tilt movement adjustable
Scan position memory, auto reposition after unexpected movement
Colors: Basic color wheel with 12 dichroic mirrors, plus
White, two direction rainbow effect
Static gobo: 14 static gobos plus open with different speed
Gobo shaking and gobo indexing
Prism and prism rotating: With 16 prism macros
Linear dimmer in precise speed from 0%-100%
Stepless frost: 0%-100% linear change frost
Strobe/shutter: High speed shutter, 0-13 Hz or random strobe
Touch Screen LCD
Display: Can be changed 180° Reverse to fit for different
Installation position.
Auto-program: 8 pre-built programs can be selected
Software-upload by optional accessory via DMX line.
Video link: http://v.youku.com/v_show/id_XNTMwMTY4OTYw.html?from=y1.2-1-95.4.1-1.12-1-2-0
DMX Channel:
34 DMX Channel Chart | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 |
| Pan | Pan Fine | Tilt | Tilt Fine | Color | Color Wheel Fine | Cyan | Cyan Fine | Magenta | MagentaFine | Yellow | Yellow Fine | Rotation Gobo | Rotation Gobo
Indexing | Rotation Gobo Fine | Fixed Gobo | FixedGobo Index |
|
| 18 | 19 | 20 | 21 | 22 | 23 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 |
| 3 Facet Prism | Rotation Prism | Rotating Prism
Indexing Fine | Focus | Focus Fine | Zoom | Zoom Fine | shutter | Dimmer | Dimmer Fine | Iris | Iris Fine
|
Trade terms:
| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air |
| 3.By sea |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flightcase |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. |
| 3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge. |
