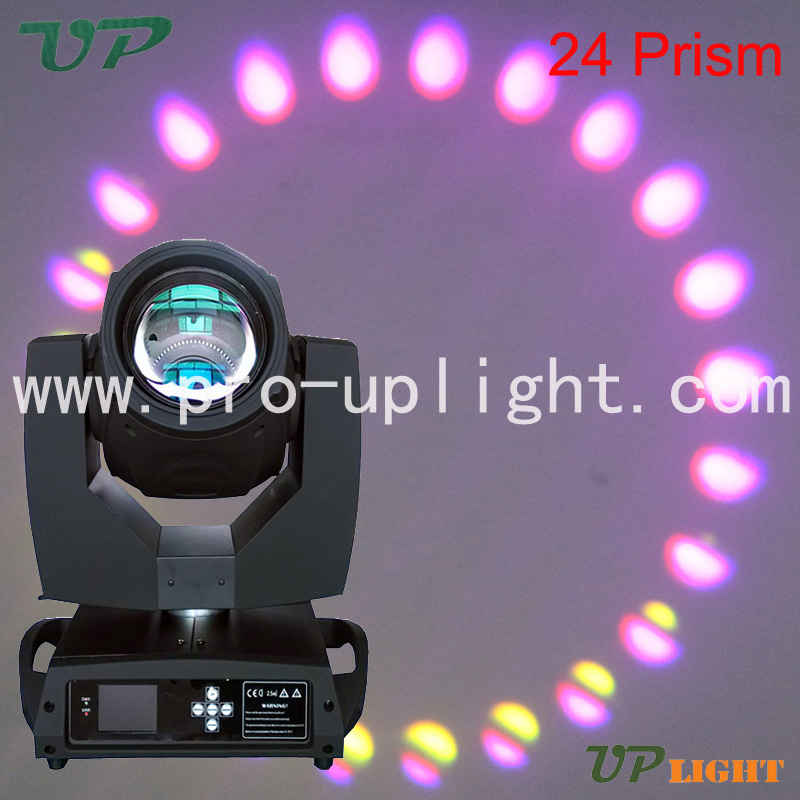

5r 200W Beam Moving Head Light
Youtube Beam Demo
https://youtu.be/9ILMNZMzj-Q
https://youtu.be/-UZwem5vDlI
POWER SUPPLIE
Input power: 110-240V 50/60 Hz
LAMP SOURCE
Discharge lamp with a short arc burner in a reflector system
- Type: Optional YODN MSD Platinum R5 200W/R7 230W
Philips UHP 189W
Philips MSD Platinum 5R 189W
Osram Siruis HRI 230W
- Output Lamp power: 200W/230W
- Color temperature: 8, 500 K
- Average life: 2, 000 h
OPTICS
3-lens optical group combination
Focus: Electronic
Light output at 20 meters (65 feet): 59, 760 lux
COLOR SYSTEM
Interchangeable color wheel with 14 colors + open
EFFECTS SECTION
Interchangeable gobo wheel with 17 fixed gobos + open
High speed shake effect
8-face rotating prism with zoom function
Frost filter
Mechanical shutter and adjustable speed strobe effect
Mechanical dimmer
CONTROL AND PROGRAMMING
18 DMX 512 control channels
Display: LCD blue display
Pan/Tilt Resolution: 16 bit
Movement control: Vectorial
DMX signal connection: 3 PIN output
BODY
Aluminium structure with die-cast plastic cover.
Two side handles for transportation.
Device locking PAN and TILT mechanisms for transportation and maintenance.
MOVING BODY
Travel:
- PAN = 540° - TILT = 270°
ELECTRONICS
Function reset from the lighting desk
ON/OFF lamp control from the lighting desk
"AUTOTEST" function from menu
Electronic monitoring with status error
SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating or failed operation of cooling system.
Forced ventilation with axial fans.
Hanging system: With fast-lock omega clamps (1/4 turn) on the base
WEIGHT
19.5 Kg
Production
Channel | Function |
| CH1 | Pan |
| CH2 | Tilt |
| CH3 | Pan fine |
| CH4 | Tilt fine |
| CH5 | Pan/tilt speed |
| CH6 | Dimmer |
| CH7 | Strobe |
| CH8 | Frost |
| CH9 | Color wheel |
| CH10 | Color effect |
| CH11 | Gobo wheel |
| CH12 | Gobo effect |
| CH13 | Prism |
| CH14 | Prism effect |
| CH15 | Prism zooming |
| CH16 | Focus |
| CH17 | Lamp on/off |
| CH18 | Reset |
