Specification
Input voltage: AC110V-240V 50-60Hz
Power: 680W
Lamp: Philips MSI 575W color temp: 5600k
Osran HMI 575W color temp: 6000k
Color wheel: 7 colors+open/rainbow effect
Gobo wheel: 7 gobos+open /adjustable-speed in both directions
Control Signal: DMX512
Control channel: 12CH(8 Bit)
Dimmer: 0--100%
Strobe: 20-65Hz 76--107Hz 108-139Hz
Cover color: Black
Carton packing size: 560× 550× 690mm
N. W: 36 kg
G. W: 40 kg
One year warranty
Specifications

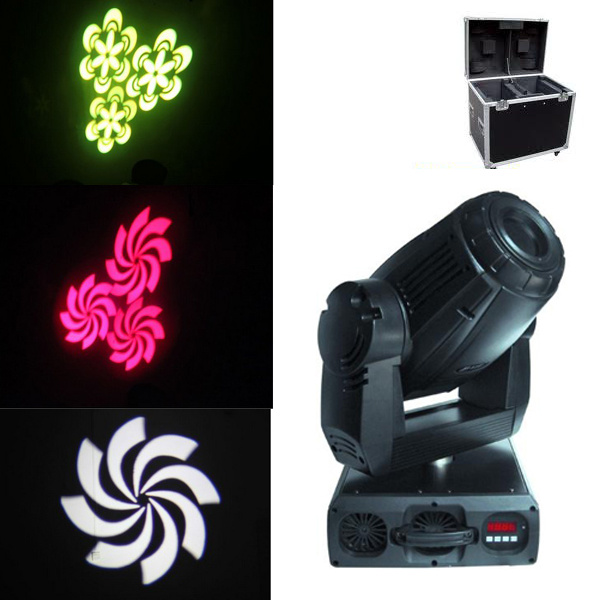

575W beam moving head light
1. Voltage: AC220V/110V
2. Power Consumption: 800 W
3. Lamp: HMI575W
4. Weight: 27/31kgs
|
Voltage |
AC220V/110V |
|
Frequency |
50-60Hz |
|
Power Consumption |
800W |
|
Fuse |
10A |
|
lamp base |
Sfc10 |
|
Lamp |
HMI575W |
|
Color Temperature |
6000K |
|
Channel |
14DMX channels |
|
Gobo |
7 Gobos + White |
|
Color |
7 Colors + White |
|
Prism |
one rotation 3-facet prism |
|
Flash |
Double patches Dimming, Flash 1-10/s,speed controllable |
|
Heat Protection |
One 85°C over heat protection thermostat |
|
Focus |
Linear Zoom |
|
Fine |
Horizontal,Vertical Rotation angle 1.8 with the automatic correct function. |
|
Horizontal Rotation Max |
450° |
|
Vertical Rotation Max |
270° |
|
Speed Adjustment |
Horizontal,Vertical 0-255 speed adjustable
Color Wheel with the rainbow effect Gobo Wheel with the Positive & Reverse stream effect |
|
Product size |
470X360X570mm |
|
Packing size |
510X470X570mm |
|
N.W / G.W |
27kg / 31kg |
