Voltage: 110-220V/50HZ-60HZ
Lamp: 54X3W LEDS (Red12/Green18/Blue18/White6)or(Red12/Green18/Blue18/Yellow6)
Power consumption: 162W
Control system: Automatic procedures, DMX512, music
Control Channels: DMX512 4CH/8CH
Outdoor use: IP65
1. Company Information:
Guangzhou Teanma Stage lighting Factory;
(TOPSTAR LIGHTING EQUIPMENT LIMITED);
* Pro factory: Disco lights/lighting equipment: For DJ/Club/Disco/Entertainment/Party etc;
*Add: Guangzhou city, China;
*Overseas experience: 95% products are for overseas
*10years' experience in exporting handling;
*12years' experience in producing;
www.teanma-light.com
2. Product Description:

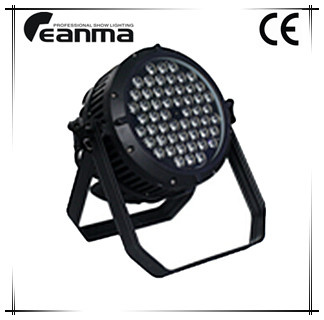

Model: LED-6001
Name: Tri color RGB par led 54x3w
54pcs*3W tri color high brightness led par
RGB full color cast aluminium High power LED par64
Product Description:
7~8hannels DMX-512 led ETC par light
("7channels for RGB" or "8channels for RGBW" color )
Built-in automated programs via stand alone mode
Built-in sound activated programs via sound activated, Master/slave
Individual control of red, green and blue LEDs
0100% strobe; 0100% dimmer via DMX mode
RGB, macros, run/strobe speed, automatic/sound, dimmer
Static colors and RGB color mixing with or without DMX controller
Color fade/color change/strobe, running speed adjustmentable
4 Digit Digital LED Display
Fan is cooled
Specifications:
Voltage: AC110V-220V/50-60Hz
Power Consumption: 60W/80W/120W/160W/180W
Light source:
54pcs RGB or RGBW or RGBWA
LED life: 3-10 million hours
Bulb angle: 15-20 degree
Packing Size: L260W260H380 mm
NW: 3.3kgs
GW: 3.5kgs
Packing: 5pcs in one master carton: 53*53*38cm GW: 16.2kg/CTN
| d001 |
|
| d512 |
|
| 4CH DMX512 Control |
|
|
|
|
|
|
|
| R001 |
|
| d.512 |
|
| 8CH DMX512 Control |
|
|
|
|
|
|
|
| FF01 |
|
| FF99 |
|
| Color gradient (01-99 Speed Adjust) |
|
|
|
|
|
|
|
| r000 |
|
| r255 |
|
| R/G/B/W Dimming(ENTER |
|
|
|
|
|
|
|
| EE01 |
|
| EE99 |
|
| Change the color combination |
|
|
|
|
|
|
|
| dEoo |
|
| dEoo |
|
| Built-in program |
|
|
|
|
|
|
|
| SoUd |
|
| SoUd |
|
| Music Control |
|
|
|
|
|
|
|
| SLAv |
|
| SLAv |
|
| Master-slave control |
Channel manual: 4 Channels 4.Channel manual: 8 Channels
| Channel | Data | Description |
| Channel | Data | Description |
| CH1 | 0 | Red Close | CH1 | 0-255 | R/G/B/W dimmer |
| 1-255 | Red dimmer | CH2 | 0-255 | strobe |
| CH2 | 0 | Green Close | CH3 | 0-255 | CH4 Speed |
| 1-255 | Green dimmer | CH4 | 0-2 | Open CH1/CH2/CH5/CH6/CH7/CH8 |
| CH3 | 0 | Blue Close | 3-100 | Change the color combination |
| 1-255 | Blue dimmer | 101-150 | Color transition |
| CH4 | 0 | White Close | 151-200 | Color gradient |
| 1-255 | White dimmer |
| 201-250 | Color pulse change |
| 251-255 | Music Control |
| CH5 | 0 | Red Close |
| 1-255 | Red dimmer |
| CH6 | 0 | Green Close |
| 1-255 | Green dimmer |
| CH7 | 0 | Blue Close |
| 1-255 | Blue dimmer |
| CH8 | 0 | White Close |
| 1-255 | White dimmer |
