Voltage: 110-220V/50HZ-60HZ
Lamp: 54X3W LEDS (Red12/Green18/Blue18/White6)or(Red12/Green18/Blue18/Yellow6)
Power consumption: 162W
Control system: Automatic procedures, DMX512, music
Control Channels: DMX512 4CH/8CH
Outdoor use: IP65
1.Company Information:
Guangzhou Teanma Stage lighting Factory;
(TOPSTAR LIGHTING EQUIPMENT LIMITED);
* Pro factory: Disco lights/lighting equipment: for DJ/Club/Disco/Entertainment/Party etc;
*Add: Guangzhou city, China;
*Overseas experience: 95% products are for overseas
*10years' experience in exporting handling;
*12years' experience in producing;
www.teanma-light.com
2. Product Description:
Model: LED-6001

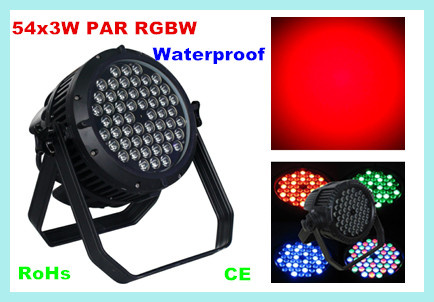

Name: Tri color RGB par led 54x3w
54pcs*3W tri color high brightness led par
RGB full color cast aluminium High power LED par64
Product Description:
7~8hannels DMX-512 led ETC par light
("7channels for RGB" or "8channels for RGBW" color )
Built-in automated programs via stand alone mode
Built-in sound activated programs via sound activated, Master/slave
Individual control of red, green and blue LEDs
0100% strobe; 0100% dimmer via DMX mode
RGB, macros, run/strobe speed, automatic/sound, dimmer
Static colors and RGB color mixing with or without DMX controller
Color fade/color change/strobe,running speed adjustmentable
4 Digit Digital LED Display
fan is cooled
Specifications:
Voltage:AC110V-220V/50-60Hz
Power Consumption:60W/80W/120W/160W/180W
Light source:
54pcs RGB or RGBW or RGBWA
LED life:3-10 million hours
Bulb angle: 15-20 degree
Packing Size:L260W260H380 mm
NW:3.3kgs
GW:3.5kgs
Packing: 5pcs in one master carton: 53*53*38cm GW:16.2kg/CTN
d001
d512
4CH DMX512 Control
R001
d.512
8CH DMX512 Control
FF01
FF99
Color gradient (01-99 Speed Adjust)
r000
r255
R/G/B/W Dimming(ENTER
EE01
EE99
Change the color combination
dEoo
dEoo
Built-in program
SoUd
SoUd
Music Control
SLAv
SLAv
Master-slave control
Channel manual: 4 Channels 4.Channel manual: 8 Channels
Channel
Data
Description
Channel
Data
Description
CH1
0
Red Close
CH1
0-255
R/G/B/W dimmer
1-255
Red dimmer
CH2
0-255
strobe
CH2
0
Green Close
CH3
0-255
CH4 Speed
1-255
Green dimmer
CH4
0-2
Open CH1/CH2/CH5/CH6/CH7/CH8
CH3
0
Blue Close
3-100
Change the color combination
1-255
Blue dimmer
101-150
Color transition
CH4
0
White Close
151-200
Color gradient
1-255
White dimmer
201-250
Color pulse change
251-255
Music Control
CH5
0
Red Close
1-255
Red dimmer
CH6
0
Green Close
1-255
Green dimmer
CH7
0
Blue Close
1-255
Blue dimmer
CH8
0
White Close
1-255
White dimmer
