Features
1.All in one design, solar led streetlight integrates led lamp, solar panel, lithium battery, smart controller and motion sensor into a shell;
2.Without cable, no need to connect electric-grid, easy for installation and replacement, just takes 10-15 minutes to install and change;
3.High efficiency mono-crystalline silicon solar panel from U.S.A.;
4.Bridgelux LED chips;
5.Smart controller, power lighting mode optional;
6.PIR motion sensor and Microwave motion sensor optional;
7.Lithium battery;
8.Aluminum alloy 6063 shell material;
9.All components work perfectly with each other, provide a prefect light effect and long lifespan;
10.High protection rating IP65, dust-proof and water-proof functions;
11.Small size, small package, save shipping cost.
Specifications for Solar LED Street Light components:
--LED Lamp:
USA Bridgelux LED chips, comfortable and stable lighting source, no glare light;
LED SMD technology, high lumen efficiency.
Aluminum PCB, excellent performance in heat dissipation, extend the lifespan of led lighting.
--Solar Panel:
USA Sunpower Monocrystalline silicone
High conversion rate can reach 21%, which make sure enough energy storing for 4-5 days consumption.
Aluminum frame, waterproof and dustproof
--Intelligent Controller:
A.Intelligent control system offer kinds of power lighting mode for your selection.
B.Light-control mode
C.Time control mode
D.Human body induction mode (Combined with motion sensor)
E.Combination mode
--Motion sensor:
PIR motion sensor:Adopts infrared induction to detect human body, save power effectively;
Microwave motion sensor:Adopts microwave radar to detect movable things, more sensitive and power save.
--Lithium battery:
Li-ion battery:2 years warranty;
LiFePo4 battery:5 years warranty.
--Shell material:
Aluminum Alloy 6063, excellent performance in heat conduction and dissipation, waterproof and dustproof.
Product specifications:

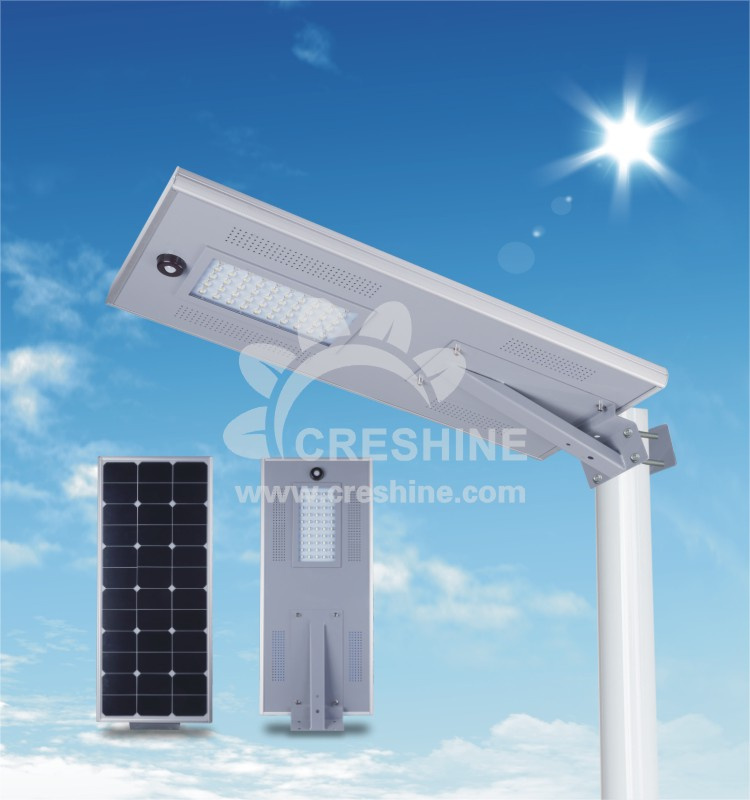

Product Name | 50W Solar Power LED Street Light |
Item Number | CS-IS-50W |
Power | 50W |
Main Material | Aluminum Alloy 6063 |
Solar Panel | Sunpower Monocrystalline silicon 18V 70W |
Battery | Lithium Battery 12V 36AH |
LED Module | Bridgelux |
Diameter of Socket | 80mm-100mm |
Luminous Flux | 5500-6500LM |
Color Temperature | 6000-6500K |
Protective Index | IP65 |
Ra | >70 |
Working Life | 50000 Hours |
Mounting Height | 7-9M |
Space between Lights | 30-40M |
Working Temperature | With PIR sensor: 0-40ºC |
Without sensor: 0-70ºC |
With microwave sensor: 0~70ºC |
Luminous Efficiency | 110~130 Lm/W |
Beam Angle | 120° |
Charge Time | 4-5 hours for daily power consumed |
Discharge Time | Full power: 15 hours, power saving mode: 4-5 days |
Warranty | 2 years |
Packaging details:
Product Name | 50W Solar Power LED Street Light |
Product spec (mm) | 1030 X 425 X 135 |
Package method | 1 set per outer carton |
Package spec (mm) | 1080 X 470X 200 |
Net weight (Kg) | 16.3 |
Gross weight (Kg) | 18.3 |
FAQ:
(1) What is all in one solar street lamp?
"All In One" means solar street light adopts solar panel, controller, led light source, motion sensor and lithium battery into a compact shell for easy installation and modular replace for easy installation and maintenance, just 10-15 minutes is needed for installation.
(2) What is the lifespan of our integrated solar street light and what is the warranty?
The lifespan of our integrated solar street light is 5 years and we provide a warranty for 2 years.
(3) Are there any tips for choosing the solar street light?
1. "All in one solar street light" cannot work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days. Also, our engineers will help customers adjust our products to suit the requirement of the project's environment.
2."All in one solar street light" adopts the long life lithium battery for storing energy, charging temperature at day time is 0~70ºC. When temperature goes lower than 0ºC, the controller will cut off the connection between solar panel and battery to protect the battery automatically. The battery will be revived to be charged while temperature goes higher than 0ºC. Discharging temperature at night is between 0ºC~70ºC. Please pay attention to these factors while selecting the street light.
3. Battery of the "All in one solar street light" can be stored for 6 months long after fully charged. Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.
4. Keep clear of the surface of the All in one solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
Zhongshan Creshine Lighting Co. Ltd is derived from Creshine Co., Ltd, an enterprise which is registered in HK in 2014, especially focus on R&D, manufacture, quality control, sales, marketing, after sale service for LED outdoor lighting products.
We set up our export facility based on our 7 years of manufacturing experience for our trading company customers for export here in China mainland.
Along with a rapid growth of our business, we invest to enlarge our production capacity and set up Zhongshan Creshine Lighting Co. Ltd.
All of our products are available for UL, CE, SAA, etc. Certifications testing.
Our products are popular for projects in Africa, South-east Asia, MID-east Asia, Australia, America, Europe and areas which are rich in solar resource.
CRESHINE Team sincerely welcomes your OEM/ODM requirements. We will always provide you excellent products and service with a competitive and reasonable cost.
Our services
Our strong R&D team will help to solve all the possible problems for our clients;
OEM&ODM requirements are welcome.
