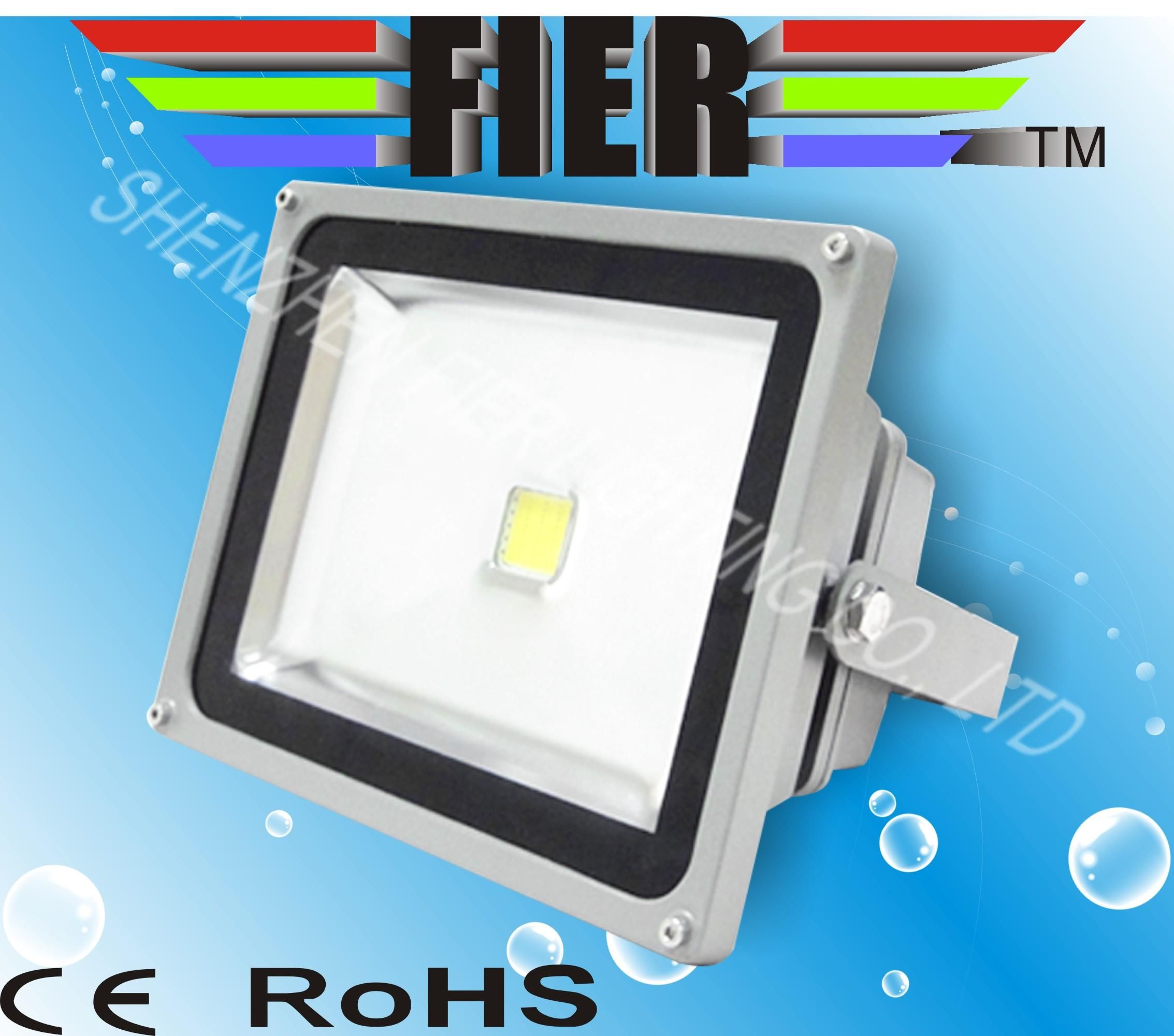

50W Outdoor Lighting LED Flood Light

IP 65 Outdoor Lighting 12VDC 70W LED Flood Light

1. led floodlight 10w - 400w

1 . Power : 10W , 20W , 30W , 50W , 80W , 100W , 120W , 150W , 160W , 200W , 240W , 300W , 320W , 400W
2 . Input Voltage : AC85-300V  DC12V  DC24V ( According to customers' requests )
3 . Light Source : LED ( Brand name: Bridgelux , Epistar , Edison, Cree ) is optional
4 . Beam Angle : 8º   15º  35º  45º  60º  60º  80º 120º
5 . Surface Color : dark / gray / all the color is optional


 2. Applications
Factory, gym, dock, billboard, building, tunnel, landscape, city lighting projects

3. Features
The light source adopts the integration of imported single high power LED, with the special design of integrating many chips into one lighting source.
The crust in aluminum alloy die casting ensures the efficiency of heat emission, guaranteeing the light a long life span.
The high pure imported aluminum from Germany as the reflector has high reflecting efficiency, and it can make sure the luminous flux, controlling the light inside of a useful area. It improves the efficiency of light uniformityuniformity and utilizationutilization, showing the LED advantage of energy saving.uu
The integration of 5mm high strength roughened glass and the housing makes the light work perfectly in the high humidity environments.
New high efficiency constant current driver. Wide range of input voltage: AC100-240V.
No delay start. No waiting. It can reach its normal light as soon as it is turned on. No noise.
No electrical wave, conforming to CE.
Environment friendly and no air pollution. We exert the design of using cold light source. It's no heat radiation. There is no ill to our eyes and skin. The floodlights do not have lead, hydrargyrum and any other contamination. It is really environment friendly with ROHS certificate
4 . Specification
<

Chip	Watts	IP	Voltage	Leds	CCT	Lighting efficiency	Beam Angel	Warranty
FEH106	10W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
	10W	IP65	12Vdc  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
	10W	IP65	24Vdc  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
FEH107	20W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
	20W	IP65	90~295VAC  MW	Epistar  35mil	2700-7000K	80-85lm/w	50/100	3 years
	20W	IP65	12~24Vdc  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
FEH108	30W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
	30W	IP65	90~295VAC  MW	Epistar  35mil	2700-7000K	80-85lm/w	50/100	3 years
	30W	IP65	12~24Vdc  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
FEH109	50W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
	50W	IP65	90~264VAC  MW	Epistar  35mil	2700-7000K	80-85lm/w	50/100	3 years
	50W	IP65	12~24Vdc  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	2 years
FEH109 UL	50W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	80-85lm/w	50/100	3 years
FEH110	80W	IP65	90~295VAC  MW	Epistar  35mil	2700-7000K	85-90lm/w	50/100	3 years
	80W	IP65	100-240VAC  FIER	Epistar  35mil	2700-7000K	85-90lm/w	50/100	2 years
	70W	IP65	12-24Vdc  FIER	Epistar  35mil	2700-7000K	85-90lm/w	50/100	2 years
	70W	IP65	90~295VAC  MW	Epistar  35mil	2700-7000K	85-90lm/w	50/100	3 years
	70W	IP65	100-240VAC  FIER	Epistar  35mil	2700-7000K	85-90lm/w	50/100	2 years
FEH111	100W	IP65	90-295VAC  MW	Epistar  35mil	2700-7000K	85-90lm/w	100°	3 years
	100W	IP65	90-264VAC  FIER	Epistar  35mil	2700-7000K	85-90lm/w	100°	2 years
FEH112	100W	IP65	90-295VAC  MW	Epistar  35mil	2700-7000K	85-90lm/w	100°	3 years
	100W	IP65	90-264VAC  FIER	Epistar  35mil	2700-7000K	85-90lm/w	100°	2 years
FEH113	150W	IP65	90-295VAC  MW	Epistar  35mil	2700-7000K	85-90lm/w	100°	3 years
FEH122	10W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	10W	IP65	12Vdc  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	10W	IP65	24Vdc  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
FEH123	20W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	20W	IP65	12-24Vdc  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
FEH124	30W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	30W	IP65	12-24Vdc  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	30W	IP65	90-264VAC  MW	Epistar  35mil	2700-7000K	75-80lm/w	100°	3 years
FEH125	50W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	50W	IP65	12-24Vdc  FIER	Epistar  35mil	2700-7000K	75-80lm/w	100°	2 years
	50W	IP65	90-264VAC  MW	Epistar  35mil	2700-7000K	75-80lm/w	100°	3 years
FEH126	80W	IP65	100~240VAC  FIER	Epistar  35mil	2700-7000K	80-85lm/w	100°	2 years
	80W	IP65	90-295VAC  MW	Epistar  35mil	2700-7000K	80-85lm/w	100°	3 years

5 . Packing

6 .  Safety Notice for Using
u Please always use the light out of its package.
u Before starting use of the light, please check if the light was damaged during transportation. If any damage shown, please DO not install or use it.
u Any maintenance should be performed by trained professionals only.
u Keep packaging materials away from the reach of children and pets. Risks of suffocation!
u Caution. The packaging contains small parts that may be swallowed by children.
u Never leave children unattended in the vicinity of the lights and do not allow them to play with electrical devices.
u Try to avoid looking directly in the LED beam-especially for extended periods of time. Do not shine the LED light in another person's eyes.
u Never cover the light by other objects.
u The products need to re-repair, inspection or special treatment of retirement after service time.
7 . Maintenance
Prior to cleaning the light, make sure it has been disconnected from the power supply.
Use a dry or slightly moistened cloth for cleaning.
Never use any chemicals or abrasives for cleaning.
8 . Proposal
Used electronic devices must be collected for recycling and can not be deposited together with daily garbage.
9 . Installation
This product should be installed by trained electricians.
Check integrality of the products when unpack the packing.
When laying the cables, make sure that the cables and plugs are not subjected to any tensile or twisting forces. Fit the cable tension relieving mechanisms to the connection points of the surface-mounted lights. Do not kink cables. Output cables should be laid separately and at a distance from other cables.
Proceed by connecting the wiring cables to the luminaries. Usually, the brown(or black) wire is the live wire, connect it with the terminal marked "L". The blue wire is Naughty wire, connect it with the terminal marked "N".
Used only the LED driver included, and do not connect the surface-mounted lights to other loads.
Do not remove the name plate of the power supply and driver of the light.
10 . Notes
Non-professionals are not allowed to disassemble and maintain the products. We have the right not to provide after-sale service if unauthorized disassembly and maintenance happens to the products.
11 . led floodlight Photo
12 . led floodlight ageing

13 . Our factory , Lighting fair ,  Certification
CE,ROHS,TUV,UL
12 . Special led flood light we also make , such as :
1 .  DC 12V ; DC 24V ; DC(12V - 24V) ;
2 .  Infrared Sensor
3 .  RGB
4 .  Self - control
5 .  Infrared dimming cotrol
6 .  triac dimmer control
7 .  PWM remote control ( DMX - 512 )
