KA-SSL22 Solar Panel LED Light With Motion Sensor Specification:1) Type of Battery:3×1200mAh battery Ni-Mh
2) Light source:Max.50×0.075W LED
3) Detection area:180°detection angle.
4) Detection distance approx.10m
4) Duration time:10seconds to 90 seconds(adjustable)
5) Lux control level:2-2000Lux ajustable
6) Solar panel:150×150mm
7) IP54 waterproof
8) Power: 4W
9) Illumination Flux: 420LM
Product introduction:
LED solar sensor light, With it's effortless setup and light-weight design, the light conforms to all your lighting needs. It was made to provide many years of service using environmentally friendly solar power.
Working principle: during the day, it absorb and storage solar in the recharge battery, at night when the body's soft infrared is detected, it will automatically lighting.
Applicable scope: can be used to prevent theft, back, front your gate, narrow lane, corner, garage, corridor, building lighting, Standard wiring head, convenient installation.

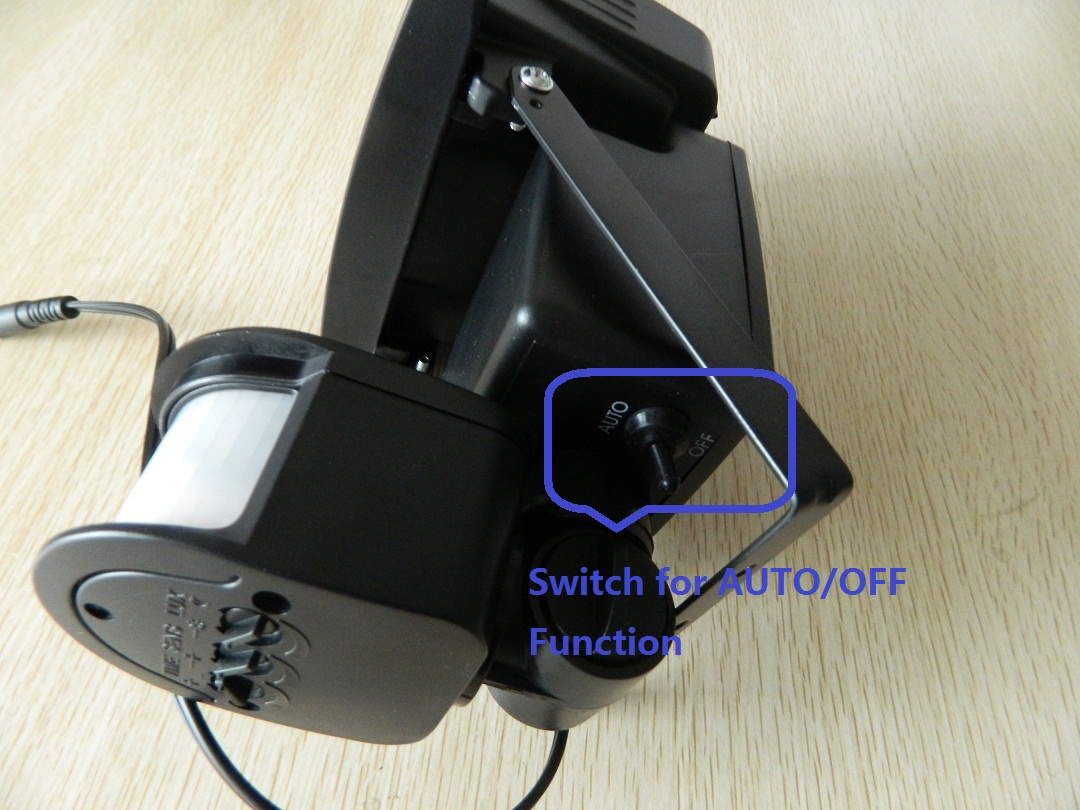

How To Adjust The Motion Sensor:After the initial 3-day charge, slide the switch on the main unit to AUTO position.

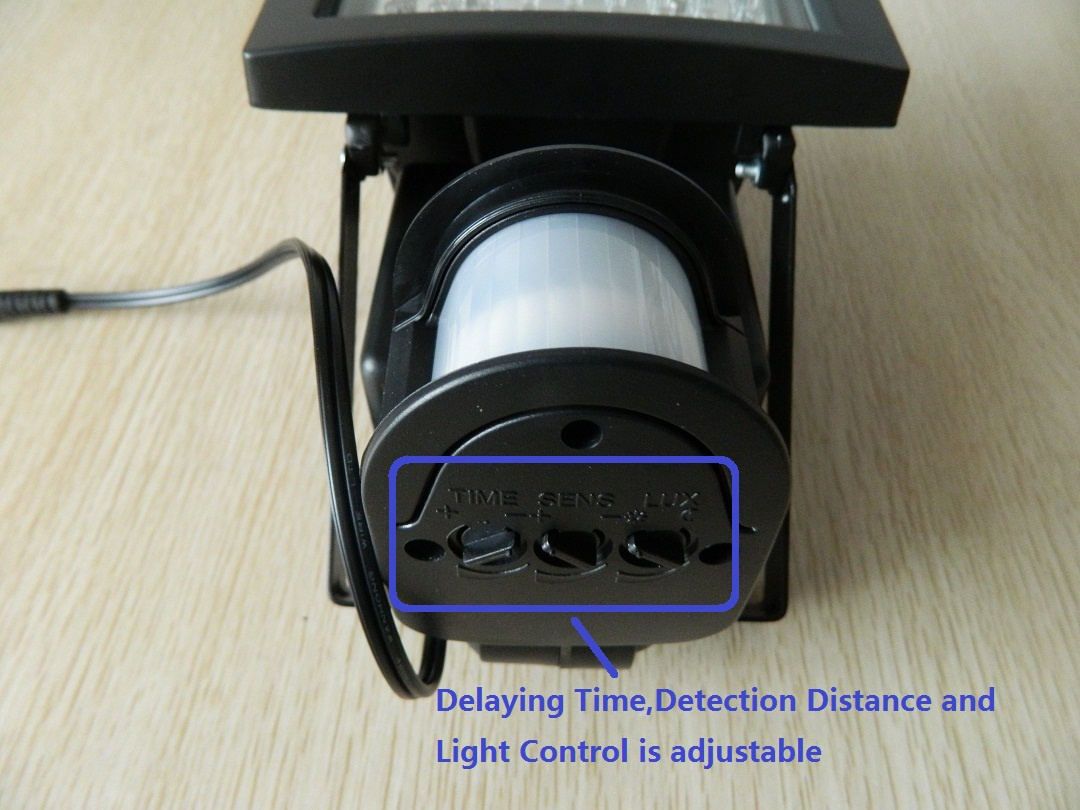

On the motion sensor there are threes adjusting knobs: TIME / SENS / LUX
1) TIME --- Duration time: Depending on how long you wish the unit to stay lit after motion stops in the field
of vision, the duration time will adjust from 10 seconds to 1 minute. Note: Once the light has
been triggered by the PIR sensor any subsequent detection will start the timed period again from the
beginning.
2) SENS Sensitivity adjustment: The sensitivity of motion sensor will be affected by environment
temperature. The more sensitivity for PIR sensor, the lower environment temperature. So you can
adjust the SENS knob to compensate the change of sensitivity affected by environment temperature.
3) LUX Lux control level: The Lux control module has a built-in sensing device (photocell) that
detects daylight and darkness.() position denotes that the loading will be turned on by PIR
during day and night, ( ) position denotes that the loading will be turned on by PIR only at night. You
can set to operate the unit at the desired level by adjusting the LUX knob.

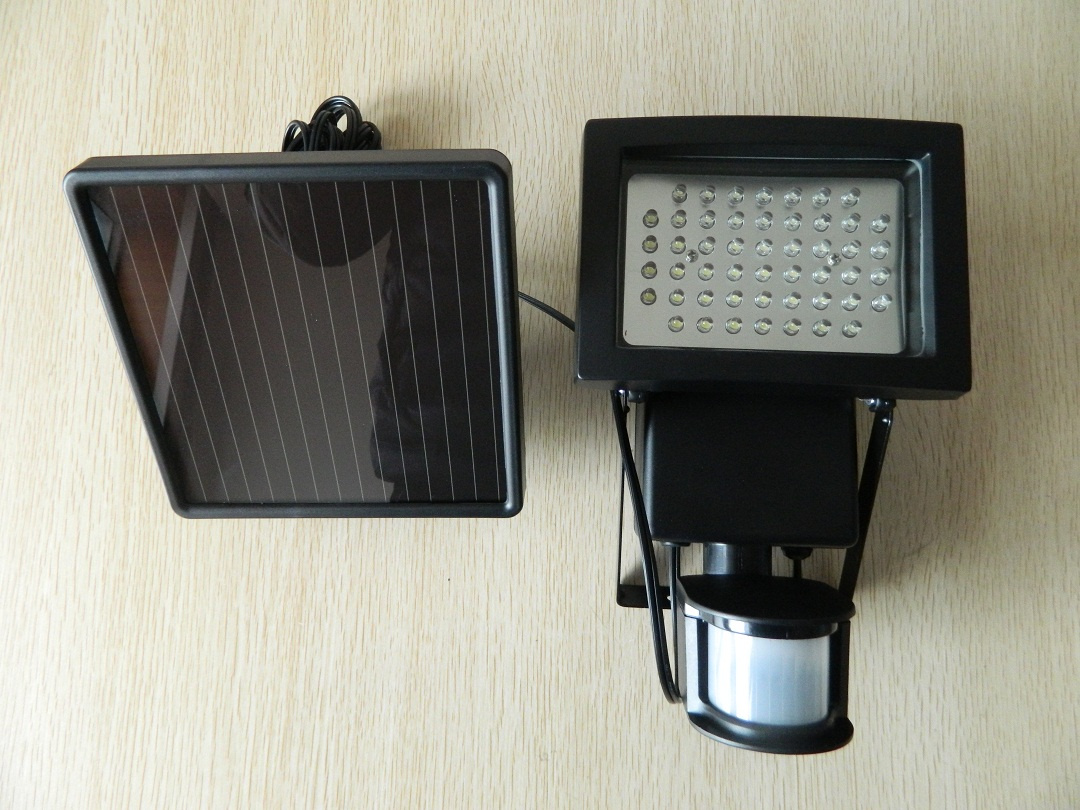

KA-SSL22 Actual Photo:
