Quick Details
Light Source: LED
Item Type: Light Strips
LED Light Source: 5050SMD
Type: Flex LED Strips
Input Voltage(V): DC12V
Lamp Power: 45w/roll
Lamp Luminous Flux(lm): 18-20lm/led
CRI (Ra>): 75
Color Temperature(CCT): 2700-7000K
Working Temperature(ºC): -20 - 50
Working Lifetime(Hour): 50000
Lamp Body Material: Copper
Certification: CE, RoHS
Emitting Color: Changeable, color changing
Place of Origin: Guangdong, China (Mainland)
Brand Name: LF
Model Number: LF-FW5050RGB18PF-8806
size: 5000*12*4mm
IC type: LPD8806
Led/m: 36
IC/m: 18
Image Pixel: 12
Voltage(DC): DC12V
Grey Grade: 128
Waterproof Grade: IP65/IP67/ non-waterproof all available
warrenty: 2years
Packaging & Delivery
Packaging Details: | Plastic packaging, anti-static, carton box |
---|
Delivery Detail: | 3~10 after confirm the order |
---|

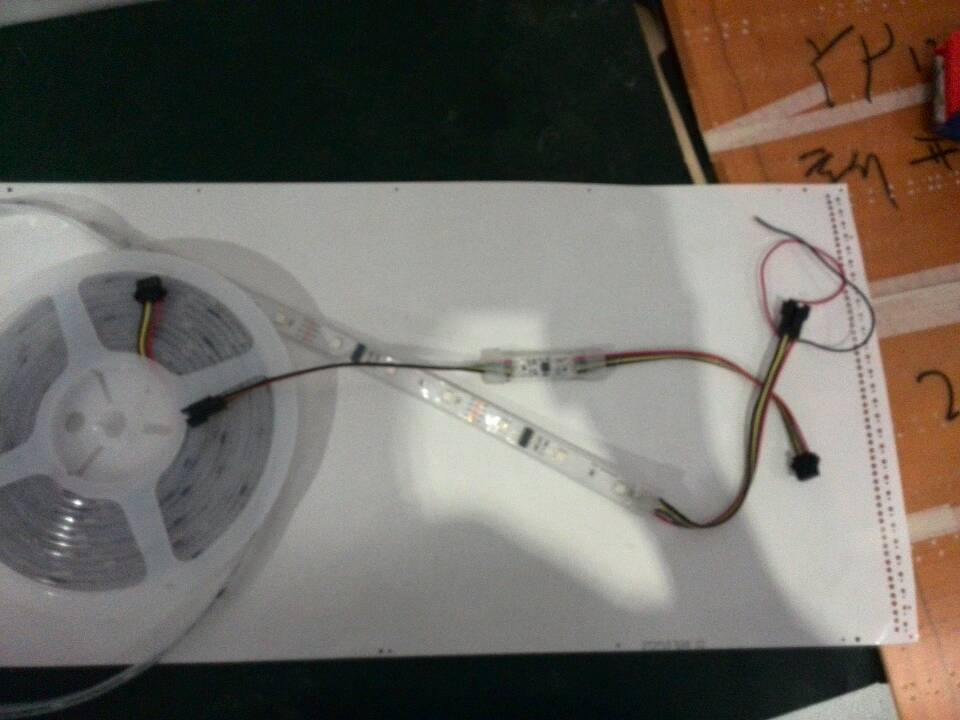

5050smd flexible digital rgb led strip light lpd8806 36leds DC 12V
Quick Details
Place of Origin: Guangdong China (Mainland) | Brand Name: LF | Model Number: LF-FW5050RGB18PF-8806 |
Name: LPD8806 digital strip | Input Voltage: DC12V | MAX Power: 9W/M |
Life: 50,000h | SMD: 5050 | IC Quantity:12 /M |
PCB color: brown/white | Color: RGB | LED Quantity:36LEDs/M |
Viewing angle: 120 | Certificate: CE, ROHS | Controller:Cl-T-1000s |
Packaging & Delivery
LPD8806 digital strip lights 5050 RGB
Packaging Detail: Plastic packaging, anti-static, carton box
Delivery Detail: 3~10 working days after confirm the order
Specifications
Technical Data:CL-FW5050RGB15PF-6803
Part number | Data |
Input voltage | DC 12V |
Max Power/M | 9W |
Beam angle | 120 degree |
Life span | 50.000 |
Working temperature | -20°c~ +50° |
Storage Temperature | -30~ +65° |
IP Degree | IP65 |
Frequency | 50-60HZ |
Humidity | <85% |
Power factory | >93% |
Grey Grade | 128 |
Dimensions(mm) | 5000mm*14mm*4mm 5M/Ree |
IC QTY | 12/M |
LED QTY | 36LEDs/meter |
Installation
It has a 3M self-adhesive backing so is easily applied to most smooth surfaces by simply removing the backing paper.
1) Clean the surface where you plan to attach the flexible strip light, Ensure there is no dust or oily material on the sticking space.
2) Peel off the 3M tape from the backside of the ribbon.
Place the strips on the contour and slightly press the front of the strip, so the strip can firmly attach on the surface.
