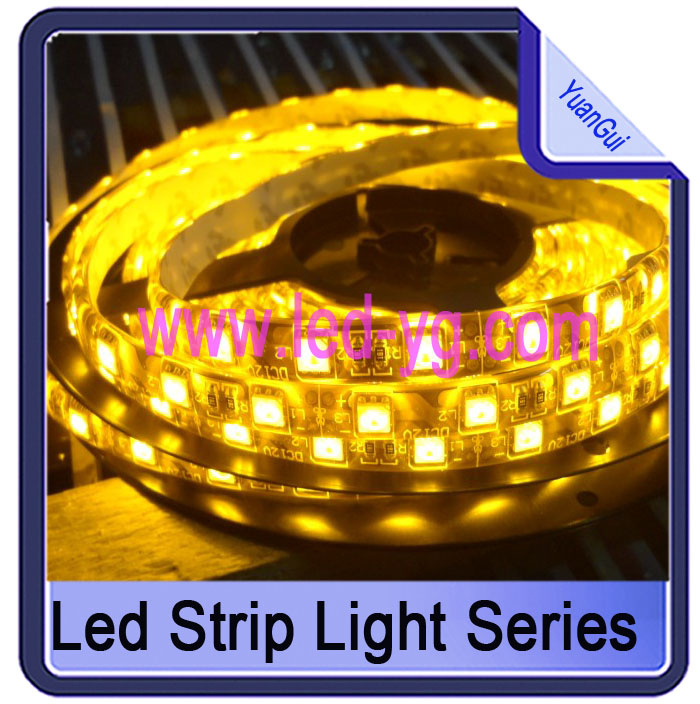

5050 LED strip light(60LEDs/m IP65)
1. LED strip factory direct sell
2. Energy-saving
3. CEand RoHS
4. 2 year warranty
Flexible LED strip light
1. Use low energy consumption SMD LED for light source, high energy conservation efficiency can up to 75% than traditional light; High brightness, low brightness attenuation.
2. Environmental protection, lifespan up to 50000H.
3. Adopt super flexible PCB board as a base, can be folded and bended to 360 degree; Low voltage, safe and reliable to use.
4. Many colors: Red, yellow, blue, green, white, warm white are available.
5. Input voltage: 12V/24V DC. 3 LEDs make one group under 12V while 6 LEDs make a group under 24V.
6. With waterproof and no-waterproof, the waterproof level has: IP20. IP33, IP65, IP67, IP68
Features:
1: Power 5050 TOP SMD LED as lighting resources.
2: Available cool white and warm white.
3: Input Voltage DC 12V or 24V.
4: Can be cut by 3 LED (DC 12V high output LED strip ) and 6LED (DC 24V high output LED strip ) and connect again by our accessories; With 3M adhersive tape back.
5: Can be chosen copper PCB or white PCB.
6: . Anti-oxidation, anti-UV radiation and won't change color after long time use.
7: High flexibility, high transparence, flame-proof and environmental friendliness.
8: Silicone material offers good heat or cold resistance and is not easily broken
9: With silicone transparence waterproof connector can easily connect and totally waterproof.
10: Waterproof Material: Silicone hollow tube, Silicone glue and Silicone transparent waterproof connector.
Technical Specification:
1. LED source: Superbirght SMD5050/3528 LED
2. LED quatity: 30/45/60/120PCS per meter
3. Power(W): 2.4W, 3.6W, 4.8W, 7.2W, 14.4W/m per meter
4. Size(mm): 5000L)*4~12(W)*2.3~4(H)
5. Bean angle: 120degree
6. Color: R/G/B/Y/PW/WW/RGB
7. Work temperature: -20~50degree
8. Humidity: 0%-95% relative humidity
9. PCB Material: Flexible copper (golden/white/black are available)
10. Working voltage: 12VDC
11. IP Rank: IP22 for indoor IP65, IP66 for outdoor IP68 underwater are available
Packing:
1. Anti-static Package
2. Outer: Carton Box
3. We have mature packing ways to prevent the damage of cargo during the way to destination
Note:
1, please make LED drivers compatible with waterproof high output LED strips before use LED strips.
2, To use waterproof high output LED strips 5M in serial, longer than 5M in parallel.
3, Before use, first check the power supply used in compliance with of the power requirements.
4, Each roll ask for independent power supply; Not to use of multi-volume series use.
