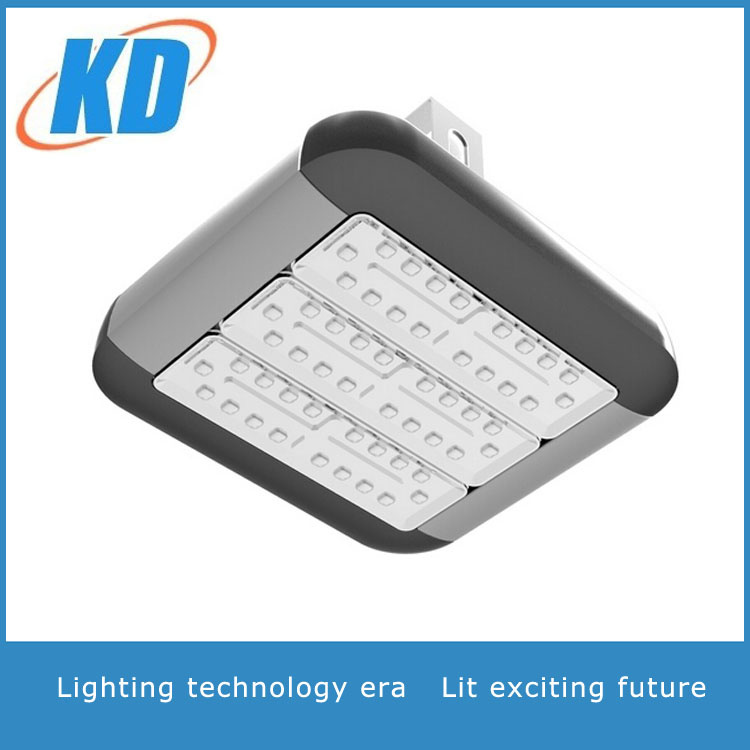

50-400W LED High Bay Light
| Price: |
US $ 250/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
1.Features:
1. High Efficiency: The whole light efficiency can up to 95lm/w
2. Good Heat Dissipation: The special thermal design to guarantee good heat dissipation and long life span
3. Unique secondary optical design to guarantee light uniformity
4. New appearance and structure design, linear and smooth
5. Gold wire-free eutectic welding technology avoiding gold-wire break
6. Installation angle can be adjusted.
2.Application:
1. High&Low Bay Lighting
Warehouse, Cold storage, Industrial, Tunnels, Gymnasiums, Sports arenas, Retail, High-ceiling spaces
Designed to meet recommended luminance and illuminance requirements for high &
low bay lighting applications in industrial and commercial buildings
2. Area&Flood lighting
Architechtural, building security and spotlighting;
Parking lots, site, residential areas and pedestrian walkway lighting;
Sign lighting, recreational, facade (ground,structure or wall mounted ) lighting
3.Specific
Model
KD
LED Chip Brand
Philips-Lumileds LUXEON® T
Driver Brand
Inventronics EUC Series
Norminal Wattage
50-400W
LED Module Usage
1 Unit
Input Voltage
AC100V-277V(50/60Hz) and 347-480 volt optional
Power Supply Efficiency
≥91%
Power Factor
>0.95
Luminous Efficacy
>95Lm/W
Luminous Flux (Lumen Output)
4750Lm ( Tolerance +/- 5% )
Color Rendering Index
Ra>75
Color Temperature
3000K / 3500K / 4000K / 5000K / 5700K / 6500K
Light Distribution
Using secondary optical lens for light distribution
Beam Angle
60°/90°/120° (8°/25° /40° optional )
Work Condition
Operation Temperature: -40ºC ~ +50ºC Humidity: 10%~90% RH
Optimal Operating Temperature
25ºC
Housing Material
Anodized Die Cast Aluminum
IP Rating
IP67
Protection Level Against Electric Shock
Class I
Mounting Method
Ceiling,Pendant,Wall Type
Operation Lifespan
> 50000 Life Hours
Warranty
5 years limited system warranty standard
| Prod Model: |
KD-GKD-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Chips: Philips Lumileds: |
Lifespan: 50000hrs |
| Certification: CE, CQC, EMC, LVD, RoHS,: |
Power: 160W |
| Usage: Warehouse: |
Beam Angle: 40°/60°/90° |
| Color: Nature White: |
Lamp Body Material: Aluminum Alloy |
| Color Temperature: 2700~6500k: |
Rated Voltage: AC100V-277V |
| LED Source: Philips-Lumileds: |
Temperature: -30deg Celsius~55deg Celsius |
| Certification: |
UL |
| Lamp Body Material: |
Aluminum |
| Color Temperature: |
Warm White |
| IP Rating: |
IP67 |
| Power: |
300W |
