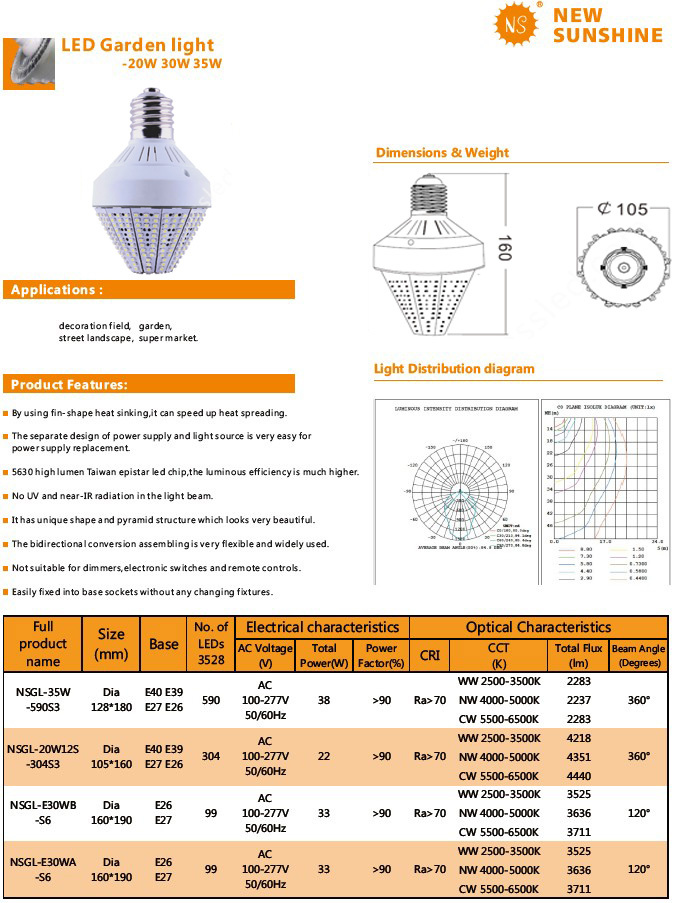

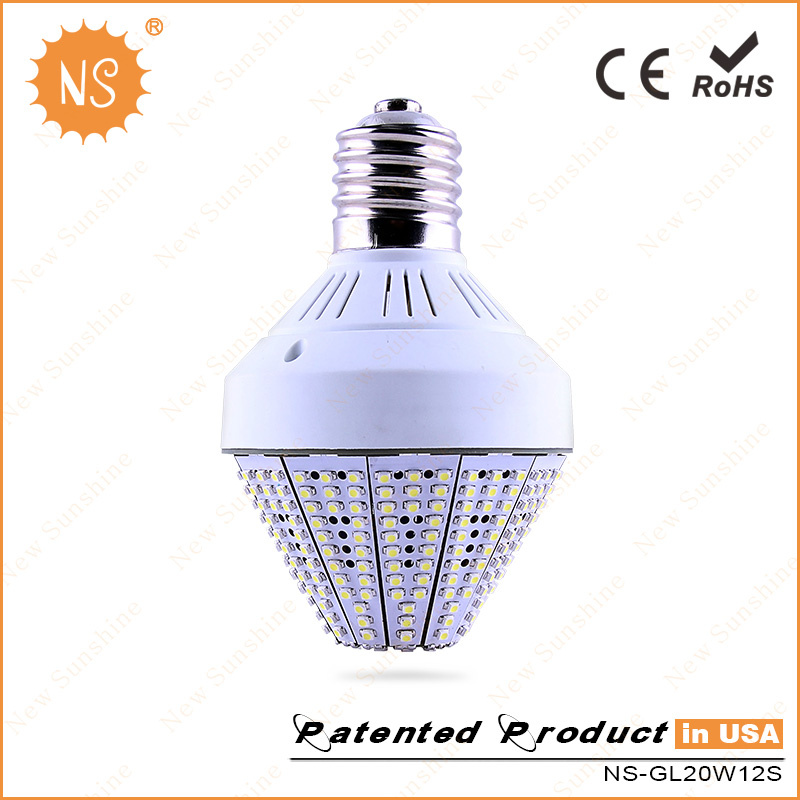

5 years warranty warm white 20w outdoor garden lighting Patent product with Epistar SMD3528, and mainly export USA and Germany market.Also got CE,ROHS,EMC certificates based on the 10years lighting industrail.Product Name:NSGL-20W12S-304S3
Product Info:Light Source: SMD3528
Item Type: Garden light
Input Voltage(V): AC85-300v
Lamp Power(W): 20
Lamp Luminous Flux(lm): 2400
Lamp Luminous Efficiency(lm/w): 110
CRI (Ra>): 85
Color Temperature(CCT): 2700-6500K
Beam Angle(° ): 150
Working Temperature: -40 - 45
Working Lifetime(Hour): 50000
Lamp Body Material: Aluminum Alloy
IP Rating: IP65
Certification: CE, EMC, ETL, PSE, RoHS, SAA, UL
Place of Origin: Guangdong, China (Mainland)
Brand Name: NS
Replacement bulb: 35W CFLProduct features:1. Energy saving high power LED light to replace the conventional CFL bulb 75W2. Internal Heat sink3. Light is soft and uniform, safe to eyes4. No UV or IR in the beam5. Cool light, No heat emission6. Instant start, No flickering, No humming7. Easy to install and operate8. Green and eco-friendly without mercury9. It's major to replace the CFL HPS MH HID with screwed lamp base directly10. 80% more energy saving compared with conventional street light, CFL, Incandescent light11. Special surface design with arc, make sure the radiation diameter on the ground is accord with the standards for sizeAdvantage:There is no need to change your fixture!The LED garden light has quickly evolved into a $$ saving powerhorse, and now the hottest product.
It's designed for the Mogul Base socket and will upgrade any Mecury Vapor, Metal Halide (MH), High Pressure Sodium (HPS), High Intensity Discharge(HID), or Fluorescent Lamp.
The huge advantage with this product is that it retrofits easily with little modification
This means that now in just minutes, you can now upgrade virtually any compatible fixture to LED at a reasonable cost and will reach your ROI target faster than any other option.
This is easily the best choice for municipal or commercial entities looking to enter the LED market with the lowest possible investment.
Perfect for upgrading your parking lots, schools, universities, city parks and shopping centers right now.

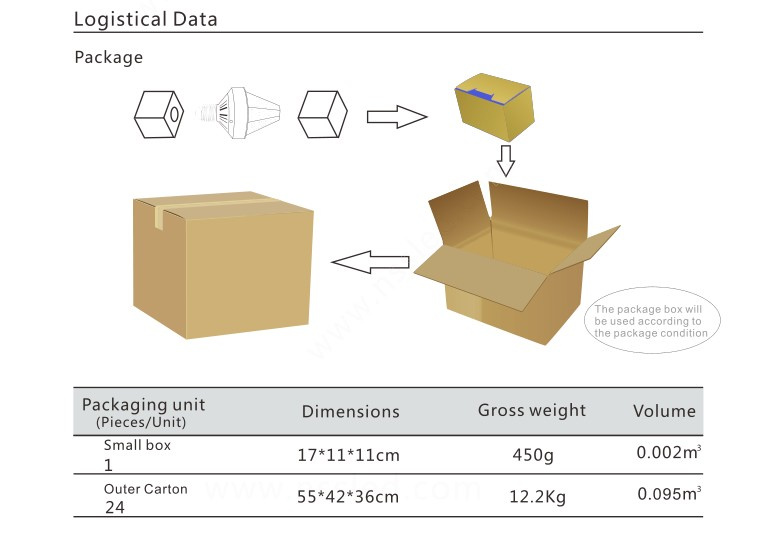

Package:
Application:

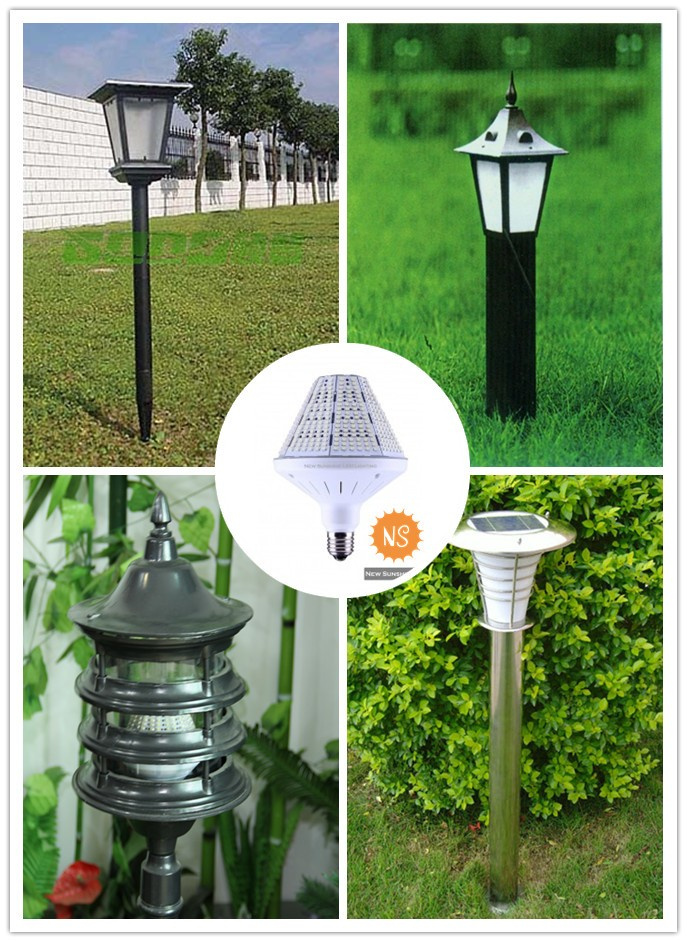

20W LED Garden Light Application:Mainly used for decoration field, garden, street landscape and supermarket.Notice:1. Make sure To Remove Or Bypass The Electronic Ballast In The Fixture Before Install The Led garden Bulb2. Make Sure To Cut Off The Power Before Install The Led garden Bulb3. E40 and E27 LED Lights such as led garden light series could not use in the unventilated fixture4. Not suitable for dimmers or electronic switches or remote controlsOur service:1. Your inquiry related to our products or prices will be replied in 24 hours
2. Well-trained and experienced staffs to answer all your inquiries in fluent English.
3. OEM&ODM, any your customized lightings can be designed and put into product.
4. Distributorship is offered for your unique design and some our current models.
5. Protect your sales area, ideas of design and all your private information.Why choose New Sunshine Manufacturing Co., Ltd?1) Rich experienceNew Sunshine was founded in 2004s,who have over 10 years LED producing experience and has been a pioneer in this industry.Our products mainly export to USA and Germany market,which has CE,ROHS,UL,TUV,ETL,FCC,SAA,PSE,Lighting facts approved.2) 5 year quality warrantyEach of our product quality were strictly controlled and QC every step. U could enjoy 5 year quality warranty.3) Best priceWe design and produce products by ourself. U could get the best factory price and best quality.It have more advantages to help you to develop your market.4) Quick DeliveryShort lead time and delivery on time has win the trust of all customer
Sample(1-50pcs):3 working days after payment5) Exclusive patent Our R&D team always keep pace with time and develop the most exclusive energy-saving LED
lamp. Most products has got patent certification.New Sunshine, The Best Choice For Your Led Lamp!Contact info:Add: 3/F,B6,Jiayiyuan Park,Dalang street,Longhua,Shenzhen,China 518109 Contact person:MikiTel: +86 18898483972| Rated wattage | 22W |
| Input Voltage | 85-265 VAC (AC100-277V is available) |
| Operationg frequency | 50/60 HZ |
| Rated power factor λ | > 0.95 |
| Power Efficiency | > 0.87 |
| Humidity | < 90% |
| Ambient temperature | -40~45 |
| Base(standard designation) | E26/E27/E39/E40 |
| Replacement convertional lamp power | 90W CFL |
| Output Short Circuit Protection | YES |
| Output Overvoltage protection | YES |
| Temperature protection(Half-power) | 95 |
| Power recovery temperature | 50 |
| Dimmable | NO |
Shenzhen Zhaopeng Technology Co., Ltd(2008 founded) is a high-tech enterprise specializing in the production of LED lighting, which is subsidiary of New Sunshine Manufacturing Co., Ltd(2004 founded). Products cover LED corn bulbs(widely use as warehouse, street lamp, garden light and indoor lighting ect. )LED filament bulbs.
We also developed only for American fixtures such as shoe case, wall pack, canopy & garage lighting, parking lot etc.
In early of April 2014, Newsunshine launched a series of new street light. With the first-class design, excellent performance, it has become the designated street light in Tijuana, Mexico. What's more, Newsunshine exclusive patent 20 watt, 30 watt corn light series has occupied the Germany koblenz, Stuttgart market as the village street light.
'Tech innovation, quality first' is our constant commitment to customers. All products comply with the requirements of ISO 9001: 2008, passed European certificates of CE, RoHS, TUV and VDE, also American certificates of UL DLC. New Sunshine becomes the first LED corn bulbs manufacturer in China. We have all patents in mainland China, EU, the United States.
As company's registered trademark, "NS" and " Zhaopeng " enjoyed high reputation in LED fields, and especially favored by European and American customers. In order to better serve the overseas market, in August 2014, our company established the warehouse and after-sale service center in Germany and USA.
We always uphold the " faithfulness, Mutual Benefit" business philosophy, "passion innovation" and " pragmatic progressive " development attitude, marching towards the ambition of "becoming the LED leading enterprises around the world"!
