Specifications
LED industrial light
Brand: Mokk lighting
Life: 50, 000h
Color: Black and Silver
Input Voltage: AC85-265V
Lumions Flux: 20000-23000Lm
LED Chips: Epistar or Bridgelux
Colour: 2300-8000K
Power Supply: UL Meanwell Power
Beam Angle: 45/90/120
Power: 200W

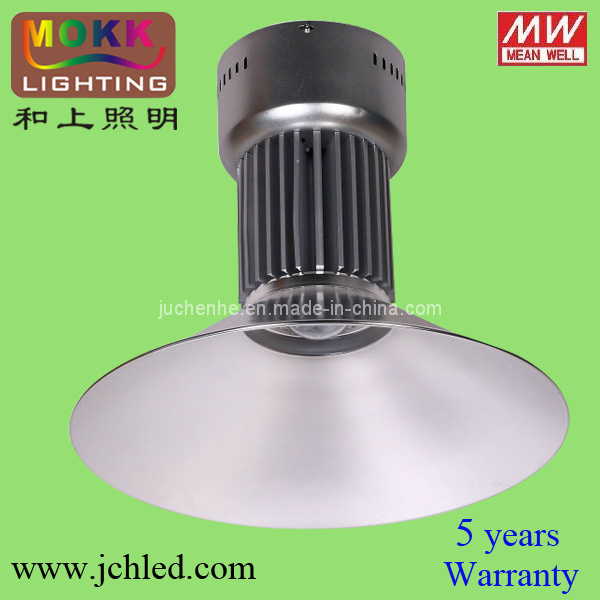

Product Name: LED high bay light
Applications
LED industrial lighting, widely used for Indoor and outdoor places: Factories, workshops, warehouse, toll stations, gas stations, stadiums, big supermarket, exhibition eetc.
Key features
1. Patented quadric lighting reflector, beam angle 45/90/120 available.
2. The center of radiator is copper and with flux when lighting the flux is liquid, when off it's solid, best cooler to ensure long lifespan > 50000 hours
3. Its working voltage (AC85V-265V) can overcome the electrical grid, noise pollution and unstable light caused by ballast
4. Integrated Multiple LED BridgeLux chip with constant current, Taiwan meanwell power supply
5. Pure aluminum reflector, with Acrylic dust proof cover, explode proof and sharply improve the reflect rate, and ensure the output lumen flux.
6. Lamp surface treated with anodization, corrosion-esistant, artistic appearance
7. Cold light source, no heat radiation, harms-free to the eyes and skin, lead-free, mercury free, green lighting solution
8. MEAN WELL driver, five years life span.
9. CE, RoHS certificate. 5 years warranty.
Production Lead time
1 Less than 500 pcs: 7-10 working days.
2 Between 500 pcs and 1000 pcs: 12-18 working days.
3 More than 1000 pcs: 22-30 working days
Packing
Less 4pcs: Lamp Body and Reflector are packed in different box.
Above 4pcs: 10pcs reflectors packed in one CTN, 4pcs packed bodys in one big CTN.
|
Specifications : led industrial lighting |
|
LED Consumption |
200W |
|
Input Voltage |
AC85V-265V |
|
Freqency Range |
50-60HZ |
|
Total Harmonic Distortion |
< 9% |
|
Power Factor(PF) |
> 0.95 |
|
Power Efficiency |
> 88% |
|
LED Working Voltage |
DC45v |
|
LED Luminous Efficiency |
110 LM/W |
|
Lamp's Efficiency(%) |
> 90% |
|
Illuminance Uniformity |
> 0.4 |
|
Color Temperature (K) |
Warm White |
2700 - 3900K |
|
Pure White |
4000 - 5000K |
|
Cool White |
5000 - 6000K |
|
Cold White |
6000 - 7500K |
|
Color Rendering Inde(CRT) |
WW |
Ra > 75 |
|
PW/CW |
Ra > 80 |
|
Light Distribution |
Symmetrical / Round Light Spot |
|
Light Design |
LED + Reflector |
|
LED Junction Temperature |
≤ 60°C |
|
Working Temperature |
-40~+55°C |
|
Storage Temperature |
-25~+65°C Best: 25°C |
|
IP Grade |
IP54/65 |
|
Working Life-Span |
50000H |
|
Power line |
1m 3 core |
|
Reflector |
45 90 120 beam degree Aluminum/
45 beam degree Plastic Reflector/
45 beam degree Plexiglass+Aluminum |
SHENZHENSHI JU CHENG HE PHOTOELECTRIC Co., Ltd. An high technology enterprise which is specialized in developing, manufacturing, marketing, servicing and design of LED lighting. Our main products include LED spot light, LED bulb light, LED fluorescent light, LED street light, LED panel light. All of the products have the certificates of CE, RoHS and it mainly use in industries, homes, building projects and shopping malls. We have set up a complete and scientific modern quality management system. Our Headquater is located in Shajing town in Shenzhen.
We adhere to the policy of "high quality, high efficiency, continuously creative, continuous enterprise", do our best to provide our customers with energy-saving LED lighting solution. We have fist-class R&D team and qualified selling group in order to offer high-quality service to our customers. Our good faith, powerful strength and high-quality has been recognized by LED industry. Pollution-free and energy-saving are our faith and keep hard working at green energy resources for human.
