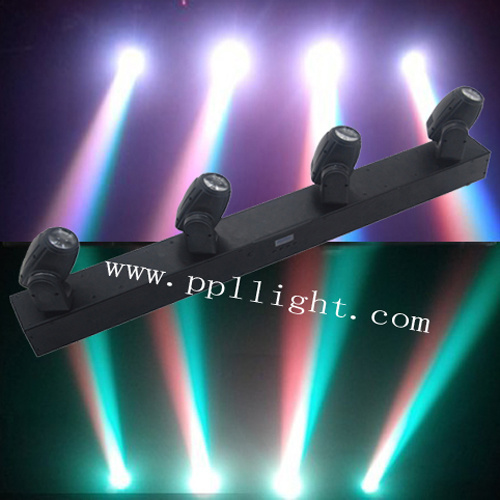

technical parameter:
· Output Voltage: AC90-260V 50/60Hz
· 4pcs*10W White Lumileds LED/ 10W Cree 4-in-1 RGBW
· 50, 000Hours lifetime, low power consumption
· 4pcs led moving head lights, could be controlled one by one
· Fast, accurate pan/tilt rotation
· Pan540° , Tilt: 270°
· Scan position memory function, reset function
· Beam Effect: 2 degree
· 18tims/s high speed strobe & pulse strobe function
· 0-100% nice linear dimming
· 12types Marco function
· 8pcs inner setting program
· 6CH or 17CH ( white led)
· 6CH or 29CH (RGBW)
· DMX512, Sound-activation, mast-slave or auto-running
· Blue LCD screen
· Efficient, noiseless heat dissipation system
Body size: 100(D)x1032(W)x273(H)mm
DMX CH | Function | remark |
CH1 | Dimming | R\G\B\WDimming,linear dimmingfromdark to bright |
CH2 | Strobe | R\G\B\W Strobe,Speed,from slow to fast |
CH3 | R1 Dimming | R1Dimming,linear dimmingfromdark to bright |
CH4 | G1 Dimming | G1Dimming,linear dimmingfromdark to bright |
CH5 | B1 Dimming | B1Dimming,linear dimmingfromdark to bright |
CH6 | W1 Dimming | W1Dimming,linear dimmingfromdark to bright |
CH7 | R2 Dimming | R2Dimming,linear dimmingfromdark to bright |
CH8 | G2 Dimming | G2Dimming,linear dimmingfromdark to bright |
CH9 | B2 Dimming | B2Dimming,linear dimmingfromdark to bright |
CH10 | W2 Dimming | W2Dimming,linear dimmingfromdark to bright |
CH11 | R3 Dimming | R3Dimming,linear dimmingfromdark to bright |
CH12 | G3 Dimming | G3Dimming,linear dimmingfromdark to bright |
CH13 | B3Dimming, | B3Dimming,linear dimmingfromdark to bright |
CH14 | W3Dimming, | W3Dimming,linear dimmingfromdark to bright |
CH15 | R4Dimming, | R4Dimming,linear dimmingfromdark to bright |
CH16 | G4Dimming, | G4Dimming,linear dimmingfromdark to bright |
CH17 | B4Dimming, | B4Dimming,linear dimmingfromdark to bright |
CH18 | W4Dimming, | W4Dimming,linear dimmingfromdark to bright |
CH19 | Pan 1 | Pan 1 Motor |
CH20 | Tilt 1 | Tilt 1 Motor |
CH21 | Pan 2 | Pan 2 |
CH22 | Tilt 2 | Tilt 2 |
CH23 | Pan 3 | Pan 3 |
CH23 | Tilt 3 | Tilt 3 |
CH25 | Pan 4 | Pan 4 |
CH26 | Tilt 4 | Tilt 4 |
CH27 | Motor Speed | 1_250 speed from fast to slow 251--255 |
CH28 | Function option | 0--30:DMX 29CH 31--50:Color Fade;( Motor controllable) 51--70:Colorpulse;(Motor controllable) 71--90:Color Jump;(Motor controllable) 91--110:Sound control;(Motor controllable) 111--130:Sound control 2; (Motor controllable) 131--150:Color Fade;(Motor uncontrollable) 151--170:Colorpulse;(Motor uncontrollable) 171--190:Color Jump;(Motor uncontrollable) 191--210:Sound control 1;(Motor uncontrollable) 211--230:Sound control 2 (Motor uncontrollable) 231--255:Empty |
CH29 | DMX512 ID | ID 1 5--9 ID 2 10--14 ID 3 15--19 ID 4 20--24 ........ ......... ID 51 255 in the sameaddress code, single-control lighting up to 50 Maximum |
