Quick Details
Light Source: LED
Item Type: Light Strips
LED Light Source: SMD5050
Type: Flex LED Strips
Input Voltage(V): 5v
Lamp Power: 72
Working Temperature(ºC): -20 - 55
Working Lifetime(Hour): 50000
Certification: CE, RoHS
Emitting Color: Changeable
Place of Origin: Guangdong, China (Mainland)
Brand Name: LF
Model Number: L-FW5050RGB24GJT
Name: 48LEDs LPD8806 LED Strips lights
Q'ty of LED: 48LED/m,eacg LED addressable
Operating voltage: DC5v
Power: 14.4watt/meter
Pixel: 48 per meter
Size: L5000*W14*H4mm
Protection rate: IP65,epoxy coating
FPC color: white
controller: CL-1000s,CL-300K,Arduino
Warranty: 2 years
Packaging & Delivery
Packaging Details: | 5meters/roll, Plastic packaging, anti-static. |
|---|
| Delivery Detail: | 3~10 working days after confirm the order |
|---|

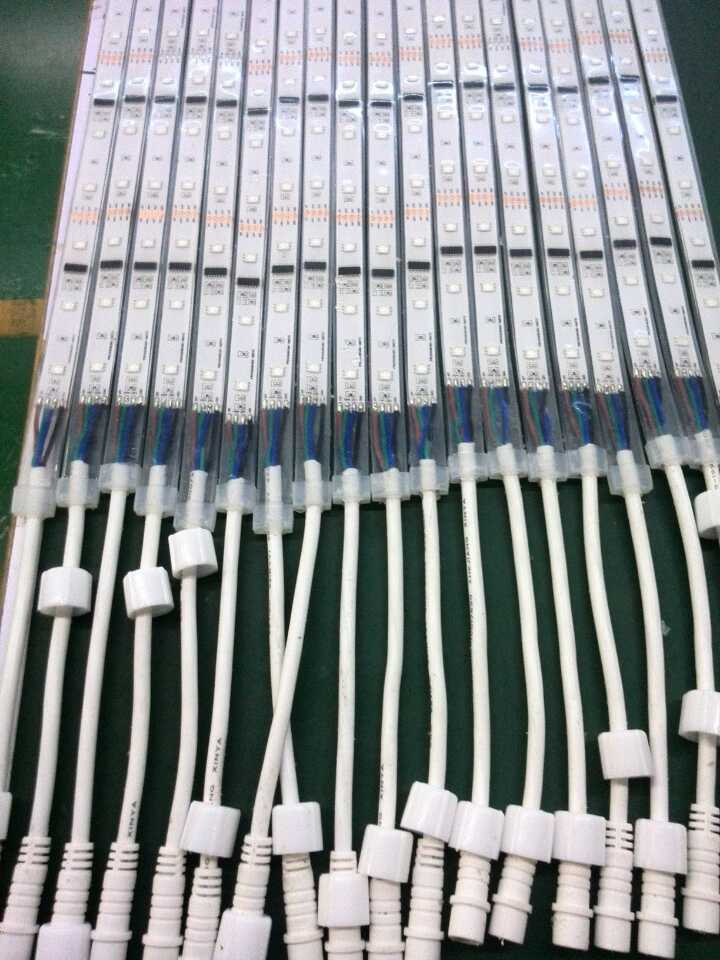

48LEDs LPD8806 LED Strips lights
LPD8806 LED Strip, 48LEDs per meter, each LED separately controlled by program. The width of FPC is 14mm, good for heat dissipation.
Of course, this is the best seller products because of the good price and high quality.
Parameter:
Four root wire: ..............5v+, Data,GND, CLK;
Input voltege:................DC5v;
Power:............................14.4watt/meter, 72 watt/roll;
Number of led: .............48leds/meter,240 led/roll;
LED source:...................5050 SMD--RGB;
Number of IC:.................24IC/meter (1 IC drives 2 LED chips);
Type of IC:......................LPD8806;
Grey scale:....................128/color;
Bits/color:.......................7 bits/color ;
Pixels: ....................48 per meter;
Pitch: ..............................P=20.83mm;
Controller:.................LF-300K, Arduino;
FPC color:...................white, black, brown are available;
Water-resistant: ............Both waterproof (IP65, IP67,IP68) and non-waterproof(IP20) are available;
Colors: ............................Full color RGB, dream color changing;
Min segmnet: .................41.6 mm(2 LED as a group);
Cuttable:..........................every 2 LED can be cut off.
