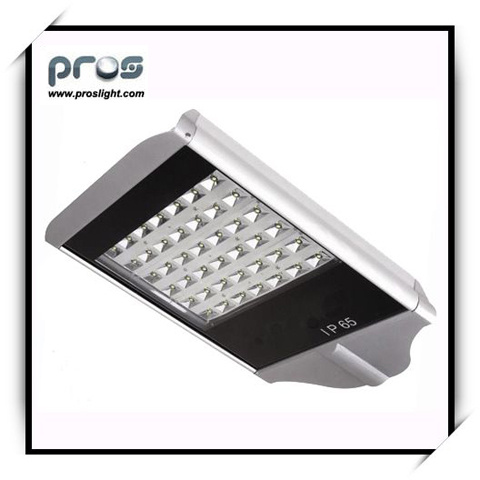

42W LED Outdoor Light (PL-LD-42W)

42W LED street light

LED Outdoor Light Feature:
The lights applied with best light source-LED. Accelerated the unique reflector which was developed by us ourself, it attains the light onto the road with maximum effect and formed a rectangular light spot. The entire light was made of the aluminum alloy with high index of the heat dissipation, the oxidize surface also ensured the heat dissipation reliability. Meanwhile the lamp has been designed a respiratory system to ensure the dust resistance, water resistance and self cleaning ability

LED Outdoor Light Application:
The lights mainly applied in high-way, urban major road, secondary road, plaza, park, industry zone, residence area etc.

ItemNumber		PL-LD-RT42W	PL-LD-RT56W	PL-LD-RT70W
Input Voltage		AC85-265V	AC85-265V	AC85-265V
Power Factor		> 0.95	> 0.95	> 0.95
LED Quantity		42pcs	56pcs	70pcs
LED Consumption		42W	56W	70W
LED Luminous Efficiency		> 110LM/1W	> 110LM/1W	> 110LM/1W
LED Initial Flux		> 4200LM	> 5600LM	> 7000LM
Average Illumination	6M height	20Lux	25Lux	30Lux
	8M height	15Lux	18Lux	25Lux
	10M height	12Lux	15Lux	20Lux
	12M height	10Lux	12Lux	15Lux
Effective Illuminated Area	6M height	6*21m²	6*21m²	6*21m²
	8M height	8*28m²	8*28m²	8*28m²
	10M height	10*35m²	10*35m²	10*35m²
	12M height	12*42m²	12*42m²	12*42m²
Color Temperature		warm white: 3000-4000K; pure white: 4000-6300K; cool white: +6300k
CRIColor Rendering Index		Ra> 85
Light Distribution Curve/Beam Pattern		Asymmetric(Bat Wing/Rectangular Beam
IP Rating		IP65
Working Life		> 50000
Light Body& Lampshade Material		Aluminum Alloy
Size		356*308*80mm	406*308*80mm	456*308*80mm
Net Weight		3.1kg	3.5kg	4.1kg
Installing Size		Dia61mm
