Feature:

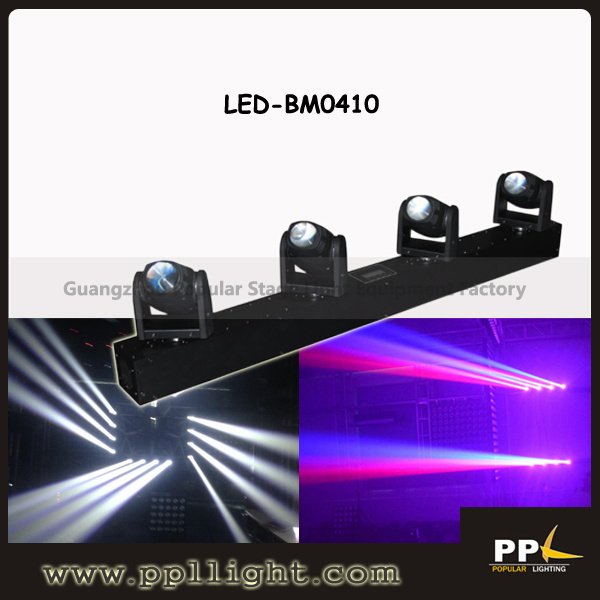

1. 4pcs 10W mini led moving head light team
2. Each mini lamp can be controlled one by one
3. 50000h lifetime, lower power consumption
Technical Parameter:
· Output Voltage: AC90-260V 50/60Hz
· LED sources: 4PCS*10W White LED
· 50, 000Hours lifetime, low power consumption
· 4PCS moving head lights, could be controlled one by one
· Fast, accurate pan/tilt rotation
· Pan540° , Tilt: 270°
· Scan position memory function, reset function
· Beam Effect: 2 degree
· 18tims/s high speed strobe & pulse strobe function
· 0-100% nice linear dimming
· 12types Marco function
· 8PCS inner setting program
· 13/30CH alternatively
· DMX512, Sound-activation, mast-slave or auto-running
· Blue LCD screen
· Efficient, noiseless heat dissipation system
· Body size: 100(D)X1032(W)X273(H)mm
DMX Channel:
CH MODE | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 |
6CH | PAN | TILT | R DIMMING | G DIMMING | B DIMMING | W DIMMING |
|
|
|
|
|
|
|
|
|
|
|
|
|
29CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | .. | 18 | 19 | 20 | 21 | 22 | . | 26 | 27 | 28 | 29 |
DIMMING | STROBE | R1 DIMMING | G1 DIMMING | B1 DIMMING | W1 DIMMING | R2 DIMMING | G2 DIMMING | .. | W4 DIMMING | PAN 1 | TILT 1 | PAN 2 | TILT 2 | .. | TILT 4 | MOTOR SPEED | FUNCTION OPTION | DMX512 ID |
