Feature:
1. 4pcs 10W mini led moving head light team
2. Each mini lamp can be controlled one by one
3. 50000h lifetime, lower power consumption
Specification

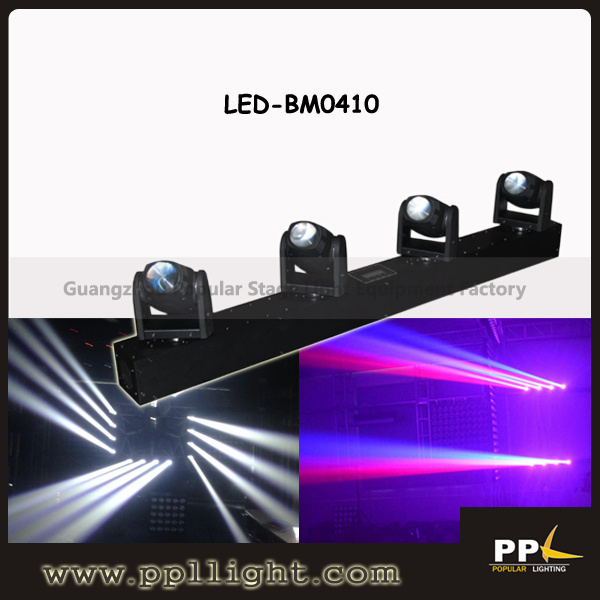

LED-BM0410
Output Voltage: AC90-260v 50-60Hz
4pcs*10W white lumileds LED/ 10W Cree 4 in 1 RGBW
50000hrs lifetime, low power consumption
4pcs led moving head lights, could be controlled one by one
Fast, accurate pan/tilt rotation
Pan 540 degree
Tilt 270 degree
Beam effect: 2 degree
18 tims/s high speed strobe and pulse strobe function
0-100% nice linear dimming
12types marco function
8pcs inner setting program
6CH or 17CH for white led)
6CH or 29CH for RGBW
DMX512, sound activation, mast-slave or stand-alone
Blue LCD screen
Eficient, noiseless heat dissipation system
Body size: 100*1032*273mm
DMX Channel:
| DMX-control operation |
| 14ch |
| CH | DMX | functional description |
| CH1 | 000-255 | dimming |
| CH2 | 000-255 | strobe |
| CH3 | 000-255 | red dimming |
| CH4 | 000-255 | green dimming |
| CH5 | 000-255 | blue dimming |
| CH6 | 000-255 | white dimming |
| CH7 | 000-255 | colour mixture |
| CH8 | 000-255 | macroefficiency |
| CH9 | 000-255 | macroefficiency speed |
| CH10 | 000-255 | level motor |
| CH11 | 000-255 | vertical motor |
| CH12 | 000-255 | level motor speed |
| CH13 | 000-255 | vertical motor speed |
| CH14 | 000-255 | reset |
| DMX- control operation |
| 32ch |
|
| CH | DMX | functional description |
| CH1 | 000-255 | dimming |
| CH2 | 000-255 | strobe |
| CH3 | 000-255 | head 1 red dimming |
| CH4 | 000-255 | head 1 green dimming |
| CH5 | 000-255 | head 1 blue dimming |
| CH6 | 000-255 | head 1 white dimming |
| CH7 | 000-255 | head 2 red dimming |
| CH8 | 000-255 | head 2 green dimming |
| CH9 | 000-255 | head 2 blue dimming |
| CH10 | 000-255 | head 2 white dimming |
| CH11 | 000-255 | head 3 red dimming |
| CH12 | 000-255 | head 3 green dimming |
| CH13 | 000-255 | head 3 blue dimming |
| CH14 | 000-255 | head 3 white dimming |
| CH15 | 000-255 | head 4 red dimming |
| CH16 | 000-255 | head 4 green dimming |
| CH17 | 000-255 | head 4 blue dimming |
| CH18 | 000-255 | head 4 white dimming |
| CH19 | 000-255 | color mixture of 4 heads |
| CH20 | 000-255 | macroefficiency of 4 heads |
| CH21 | 000-255 | macroefficiency speed of 4 heads |
| CH22 | 000-255 | head 1 level motor |
| CH23 | 000-255 | head 1 vertical motor |
| CH24 | 000-255 | head 2 level motor |
| CH25 | 000-255 | head 2 vertical motor |
| CH26 | 000-255 | head 3 level motor |
| CH27 | 000-255 | head 3 vertical motor |
| CH28 | 000-255 | head 4 level motor |
| CH29 | 000-255 | head 4 vertical motor |
| CH30 | 000-255 | speed of level motor |
| CH31 | 000-255 | speed of vertical motor |
| CH32 | 000-255 | reset |
