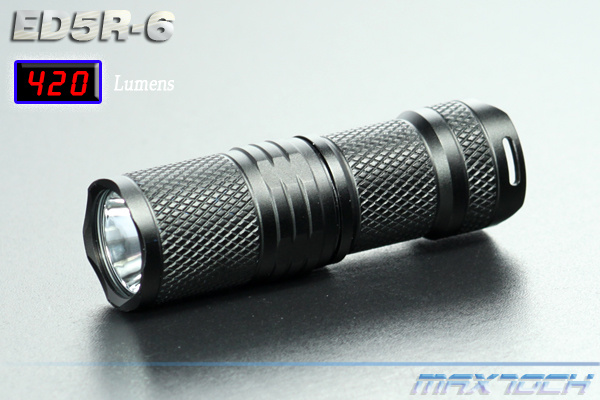

Product Description:
*LED Type: CREE XP-G R5
*Finish: HA III
*Reflector: Micro Orange Peel Reflector
Features:
*LED Type: CREE XP-G R5
*Max output: 420LM
*Beam: Micro Orange Peel Reflector for flawless beam
*Lens: Anti-shattering ultra clear lens, anti-scratching and anti-slip
*Finish: HA III
*Waterproof: IPX7
*Modes: Min-Mid-Max-Strobe-SOS
*Battery: 1*CR123
*Circuit efficiency: 93%
*Size: L 66mm (2.60'') *D 21 mm (0.83'')
Operation:
*With the battery correctly inserted, screw the tail cap onto the body fully. Tighten head to turn it on. Turn head counter clockwise (loosen) to turn off light
*Loosen and tighten head within one second to switch betweem five modes(Min, Mid, Max, Strobe, SOS)
*Remove tail, insert the batteries with the positive ends toward the head of the light, replace the tail.
Output & Runtime:
*Max output of 420 lumens for approximately 1 Hour
*Mid output of 73 lumens for approximately 6 Hours
*Min output of 8 lumens for approximately 60 Hours
Note: Stated brightness and runtime figures are based on tests using 1PC CR123 Li-ion battery under laboratory conditions. Variances in these figures will occur depending on batteries used and individual usage habits.
|
Parameters: |
|
Max Output (LM) |
420 |
Runtime (H) |
1 |
|
Distance (m) |
100 |
Rated Output (W) |
4.5 |
|
Rated Voltage (V) |
3.4 |
Rated current (mA) |
1300 |
|
Length (mm) |
66 |
Head Diameter (mm) |
21 |
|
Weight (g) |
25(excluding batteries) |
Battery |
1*CR123 |
