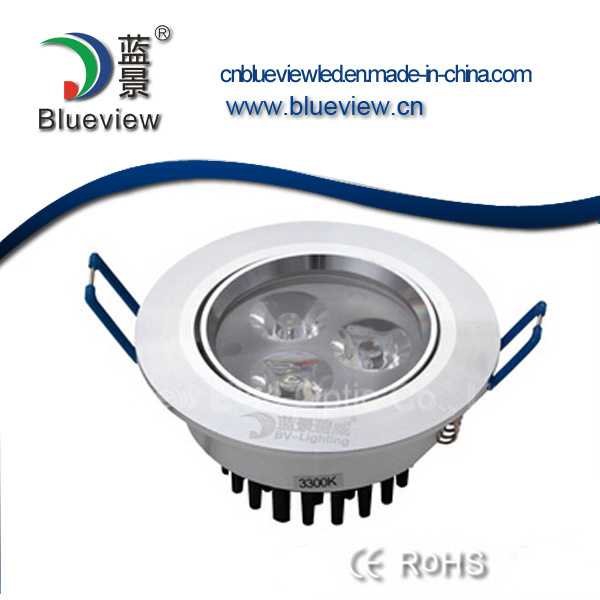

LED Ceiling Lights
Cover uses ASA standard material, for light weight design. ASA plastic
Has great heatresistance and prevents color discoloration for easy installation
And extended operation.
LED lens utilize special acrylic material for light permeability factor of up
To 90%. Uniform and soft light output, no glare, and highly efficient.
Product utilize fin design aluminum extrude profile for better heat
Dissipation.
Features
Energy saving up to 80%, compared to traditional CFL light.
More than 35, 000 hrs lifespan, 8 times longer than traditional CFL lamp.
Finned heat dissipation, effective air convection.
Environmental friendly, no pollution, no noise.
Wide working voltage range, safe and reliable, no flicker, instant start.
High color rendering, color temperature optional.
Part No | Color temperature | Power | Input voltage | CRI | Luminous flux | Product size | Cut hole size | Installation | Beam angle |
BV.CS22/3.KII | 3000k-6000k | 3W | 100-265V | ≥75 | 195-255lm | 85*H45mm | 75mm | Recessed | 30° |
BV.CS22/5.KII | 3000k-6000k | 5W | 100-265V | ≥75 | 325-425lm | 110*H45mm | 95mm | Recessed | 30° |
BV.CS22/7.KII | 3000k-6000k | 7W | 100-265V | ≥75 | 455-595lm | 110*H45mm | 95mm | Recessed | 30° |
BV.CS22/9.KII | 3000k-6000k | 9W | 100-265V | ≥75 | 585-765lm | 140*H48mm | 120mm | Recessed | 30° |
BV.CS22/12.KII | 3000k-6000k | 12W | 100-265V | ≥75 | 780-1020lm | 140*H48mm | 120mm | Recessed | 30° |
