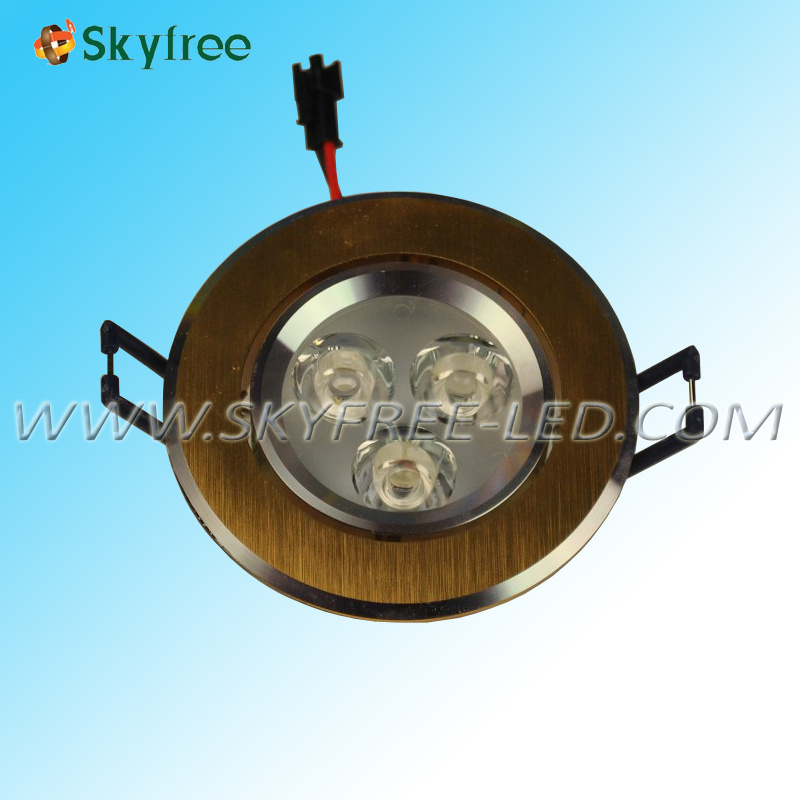

3W LED Ceiling Light with CE&RoHS (SF-DH03P02)
Features:
1. Part No: SF-DH03P02
2. Dimension: Φ 86*49(H)mm
3. Power: 3W
4. Voltage: AC100-240V 50/60Hz
5. Luminous flux: 240~300Lm
6. Beam Angle: 30° , 45° , 60° 120°
7. Color range: White/ yellow/red/green/blue.
8. CCT: 2700K-8000K
9. CRI: >70
10. Cutout: Φ 74 LED Source: 3PCS high power LED
11. Power factor: 0.85~0.98
12. Life time: 30000Hrs
13. Certification: CE, RoHS
14. Warranty time: 2 years
15. Many power: 3W, 4W, 5W, 7W
Applications:
1. Home and office lighting
2. Shopping mall lighting
3. Display case lighting
4. Under cabinet lighting
5. Art lighting
6. Board lighting
7. Back lighting, step lighting, light boxes
8. Cabinet and under counter lighting
Item No. |
SF-DH03P01 |
SF-DH03P02 |
SF-DH03P03 |
SF-DH04P01 |
SF-DH05P01 |
SF-DH07P01 |
Size |
Φ87*H33mm |
Φ86*H49mm |
Φ87*H55mm |
Φ90*H50mm |
Φ110*H50mm |
Φ110*H50mm |
Led source |
High power |
High power |
High power |
High power |
High power |
High power |
Power |
3W |
3W |
3W |
4W |
5W |
7W |
Voltage |
AC100-240V 50/60HZ |
Luminous |
240-300lm |
240-300lm |
240-300lm |
320-400lm |
400-500lm |
560-650lm |
Color |
White/yellow/red/green/blue |
Power factor |
0.85-0.98 |
0.85-0.98 |
0.85-0.98 |
0.85-0.98 |
0.85-0.98 |
0.85-0.98 |
CRI |
>70Ra |
>70Ra |
>70Ra |
>70Ra |
>70Ra |
>70Ra |
CCT |
2700-8000K |
2700-8000K |
2700-8000K |
2700-8000K |
2700-8000K |
2700-8000K |
Beam angle |
30degree/45degree/60degree/120degree |
Life time |
>30000H |
>30000H |
>30000H |
>30000H |
>30000H |
>30000H |
Certification |
CE, RoHS |
CE, RoHS |
CE, RoHS |
CE, RoHS |
CE, RoHS |
CE, RoHS |
