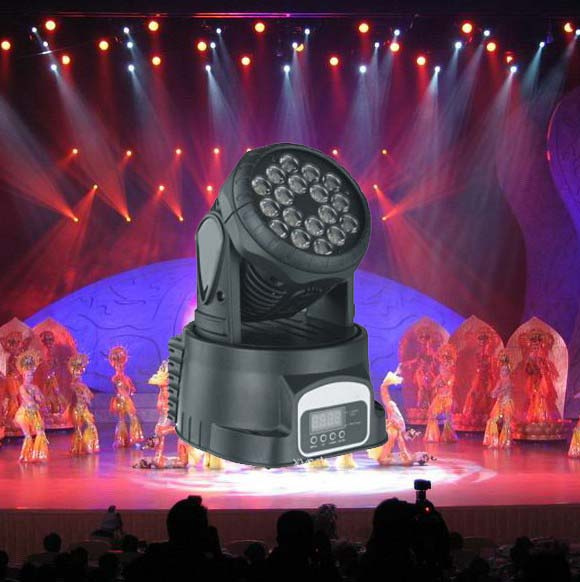

Name: LED mini moving head light
DMX-512 LED moving yoke color wash;
RGB color mixing;
Variable electronic strobe;
Variable electronic dimmer (0— 100%);
Vector speed channel for pan/tilt, RGB color mixing and color macros;
Built-in movement macros via DMX;
Built-in automated programs via master/slave(fast and slow);
Built-in sound activated programs via master/slave;
User-selectable basic or advanced operating modes;
User-selectable pan/tilt ranges
Technical Parameter
Item No: SR-2052
Volate: AC100-240V, 60Hz/50Hz
LED QTY: 18PCS*1W/3W
Lifetime: 100thousand hours
Pan: 540° , 360° , 180°
Tilt: 180° , 180° , 90°
Size: 240*240*300mm
N. W: 3KG
G. W: 3.8KG
DMX Channels: 12Channels
Channels detail:
CH1: Pan
CH2: Pan Fine
CH3: Tilt
CH4: Tilt Fine
CH5: Vetor speed
CH6: Dimmer/Strobe
CH7: Red
CH8: Green
CH9: Blue
CH10: Color Macros
CH11: Vector Speed
CH12: Movement Macros
Knowhow International Lighting Limited located in Guangzhou, was founded in March, 2005. We are a high-tech enterprise engaged in the development, production and marketing of LED moving head lights and LED PAR lights and LED wall washer systems. Our products have been widely applied in Disco, Pub, Opera House, Stage Performance, Theme Park, etc.
With 5 years' reform and development, our products have won high appreciation internationally. We have 60W/ 90W/ 200W/ 300W moving head beam light and LED moving head lights. LED PAR lights has 3W/1W 36PCS, 3W/1W 54PCS, 177PCS F10, 186PCS F10 RGBW, and LED wall washer 3rows 8sections, and 4rows 16sections. Based on good quality and competitive price, our products are very popular in Europe, America, South America, Middle East and other areas of the world.
Our company insists on brand and quality strategy. All our products are researched and developed by ourselves and has obtained the certificate of CE and RoHS.
Knowhow's all products have one year's guarantee. "QUALITY PRIORITY, CUSTOMER FIRST" is our permanent faith. We hope and believe that our company and customers will reach win-win situation with our continuous efforts.
