Feature:
1. 37pcs 3W CREE LEDs(R13, G12, B12)
2. Compact construction design
3. 16 bit smooth and precise resolution for pan/tilt movement
4. Random strobe slow to fast
5. Stepper motors with micro stepping
6. X/Y auto repositioning
7. Ideal for applications where beam necessary
8. Flicker free

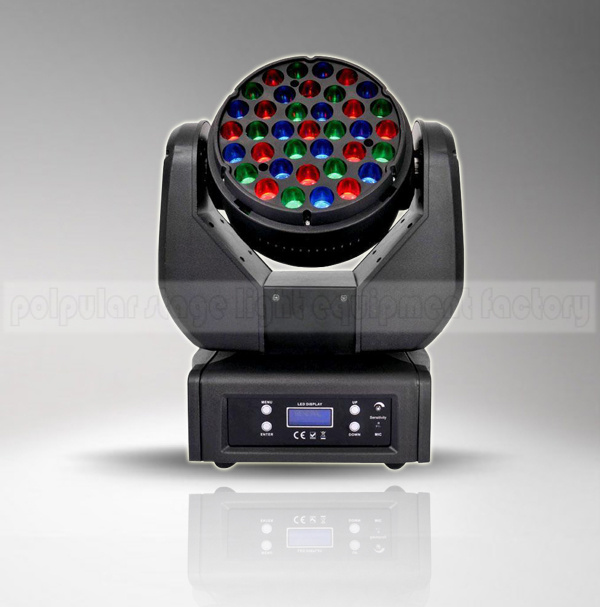

37PCS *3W RGB Cree LED Beam Moving Head
Products Name: 37pcsx3w LED beam light
Item No.: LED-M3703
Voltage: AC100V-240V, 50/60Hz
Fuse: T4A
Power consumption: 200W
Light source: 37pcsx3W LED
Lamp Life: 50000 Hours
DMX Channels: 9/12Chs
Movement: Pan/Tilt 540/240, speed adjustable
Dimmer: Smooth electronic dimming: 0-100%
Other feature: Electronic strobe with pulse and random effects
High efficiency, low power consumption Super compact, low weight
Flash: Flash from slow to fast
Flash speed adjustable Flash speed 1-10 F. P. S
Double-plate dimmer Focus: Linear focus(16bit)
Beam Angles:8degree
Display: LCD display
Housing: Composite plastic(IP20)
Protection: Fan cooling Over heat protection
Work environment: Indoor-15-40
Color: Black
Dimension: 320x280x180mm
Packing size: 400X380X280mm
N. Weight: 6.8kgs
G. Weight: 8.5kgs
DMX Channel:
| CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 |
| 12 Function | Dimmer | Strobe | Color/White macro | Red | Green | Blue | Pan | Pan Fine | Tilt | Tilt Fine | Pan/Tilt speed | Control |
| 9 Function | Tilt | Control |
|
|
|
