Product Description
Product Features
1. LEDZOOM 360 has linear motor zoom function, the zoom angle is 6 ° To 60 ° .
2. Use 36pcs 10W 4in1 LED lamp beads. Color mixting is very smooth. 36pcs lamp beads divided into three circles, each circle individually controllable. Light uniformity, blending superior, angle of coverage is good, linear dimming.
3. There are two kinds of channel mode, 20 channels and 37 channels and it can be selected from the menu. Suitable for stage, concert touring, bars and so on.
4. It's suitable for stage, concert touring, bars and so on.
Product Specifictions
Product Name

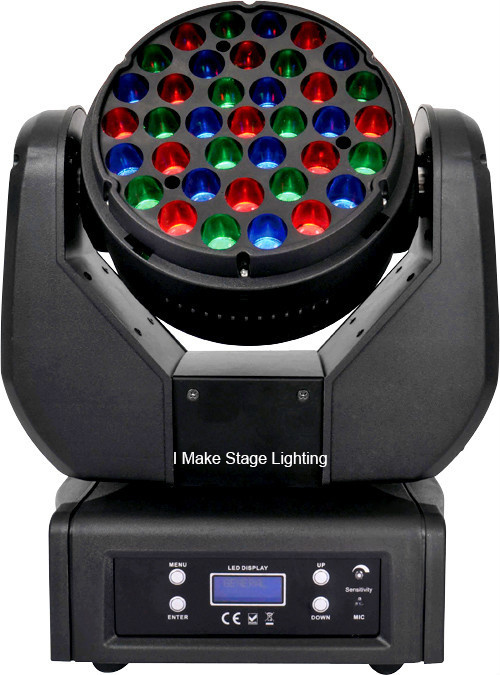

Led light moving head with zoom function led uplights
Model Number
MJ-1006D
Power Supply
AC90-240V, 50/60Hz
Light Source
36*10w 4in1 leds
DMX Channels
20CH, 37CH
Power Consumption
360W
Operation Mode
DMX512, Sound actived, Auto, Master/slave
Rotation Angle
Pan 630 degree; Tilt 240 degree, self-correcting
Color
RGBW color mixture
Display
Touch LCD screen
Zoom Function
10 to 60 degrees zoom
Functions
Color mixing, color change
Net Weight
10kg
Gross Weight
12kg
Dimension
420 X 330 X 460mm
|
Channel List: 32CH MODE |
|
CH |
Value |
Function |
|
1 |
0-255 |
X motor |
|
2 |
0-255 |
Pan fine(16Bit) |
|
3 |
0-255 |
Y motor |
|
4 |
0-255 |
Tilt fine(16Bit) |
|
5 |
0-255 |
XY motor speed from quick to slow |
|
6 |
0-69 |
Non |
|
70-79 |
After 3 seconds start moving blackout |
|
80-89 |
After 3 seconds close moving blackout |
|
90-139 |
Non |
|
140-149 |
XY reset |
|
150-179 |
Non |
|
180-189 |
Focus reset |
|
190-199 |
Non |
|
200-209 |
All motors reset |
|
210-255 |
Non |
|
7 |
0-255 |
Red 1 dark to bright |
|
8 |
0-255 |
Red 1dark to bright(16 bit) |
|
9 |
0-255 |
Green 1 dark to bright |
|
10 |
0-255 |
Green 1 dark to bright(16 bit) |
|
11 |
0-255 |
Blue 1 dark to bright |
|
12 |
0-255 |
Blue 1 dark to bright(16 bit) |
|
13 |
0-255 |
White 1 dark to bright |
|
14 |
0-255 |
White 1 dark to bright(16 bit) |
|
15 |
0-255 |
Red 2 dark to bright |
|
16 |
0-255 |
Red 2 dark to bright(16 bit) |
|
17 |
0-255 |
Green 2 dark to bright |
|
18 |
0-255 |
Green 2 dark to bright(16 bit) |
|
19 |
0-255 |
Blue 2 dark to bright |
|
20 |
0-255 |
Blue 2 dark to bright(16 bit) |
|
21 |
0-255 |
White 2 dark to bright |
|
22 |
0-255 |
White 2 dark to bright(16 bit) |
|
23 |
0-255 |
Red 3 dark to bright |
|
24 |
0-255 |
Red 3 dark to bright(16 bit) |
|
25 |
0-255 |
Green 3 dark to bright |
|
26 |
0-255 |
Green 3 dark to bright(16 bit) |
|
27 |
0-255 |
Blue 3 dark to bright |
|
28 |
0-255 |
Blue 3 dark to bright(16 bit) |
|
29 |
0-255 |
White 3 dark to bright |
|
30 |
0-255 |
White 3 dark to bright(16 bit) |
|
31 |
0 |
Non |
|
1-255 |
3200K – 10000K |
|
32 |
0 |
Non |
|
1-255 |
Color selection , the highest priority , see the color selection |
|
33 |
0-255 |
Smaller spot |
|
34 |
0-255 |
Smaller spot(16 bit) |
|
35 |
0 |
No strobe |
|
1-255 |
Strobe from slow to quick |
|
36 |
0-255 |
Main dimming |
|
Channel List: 20CH MODE |
|
CH |
Value |
Control function |
|
1 |
0-255 |
X motor |
|
2 |
0-255 |
Pan fine(16Bit) |
|
3 |
0-255 |
Y motor |
|
4 |
0-255 |
Tilt fine(16Bit) |
|
5 |
0-255 |
XY motor speed from quick to slow |
|
6 |
0-255 |
Red 1 dark to bright |
|
7 |
0-255 |
Green 1 dark to bright |
|
8 |
0-255 |
Blue 1 dark to bright |
|
9 |
0-255 |
White 1 dark to bright |
|
10 |
0-255 |
Red 2 dark to bright |
|
11 |
0-255 |
Green 2 dark to bright |
|
12 |
0-255 |
Blue 2 dark to bright |
|
13 |
0-255 |
White 2 dark to bright |
|
14 |
0-255 |
Red 3 dark to bright |
|
15 |
0-255 |
Green 3 dark to bright |
|
16 |
0-255 |
Blue 3 dark to bright |
|
17 |
0-255 |
White 3 dark to bright |
|
18 |
0-255 |
Enlarge |
|
19 |
0 |
No strobe |
|
1-255 |
Strobe from slow to quick |
|
20 |
0-255 |
Main dimming |
