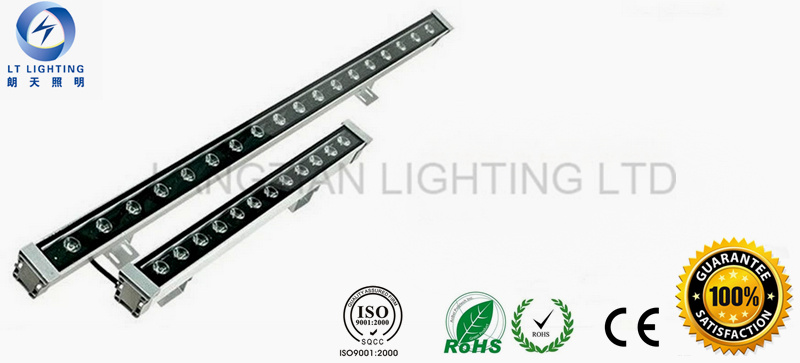

36W Outdoor Waterproof RGB LED Wall Washer floodlight-----We are focusing on outdoor and indoor LED light\lamp, especial on LED high power light\streest light\mining light\ceiling light\down light\wall washer\wall light\spot light\pannel light~~~~
Feature
(1)Low power consumption, high luminous efficiency, more power saving.
(2)long lifespan, reduce maintenance and displacement of the cost.
(3)According to the existing ground circuit layout, it can be one-to-one replacement directly
(4)IP65
(5)external power supply
Application
Landscapes/landmarks/bridges/architectural lighting
Subways/MRT/tunnel lighting billboards/
Advertisement lighting
Harbors/airports/oil rigs/
Container yard Lighting
Industrial lighting
(petrochemical plant, factory and facility and more)
Sports lighting(golf course, tennis court and stadium and more)
About Led source:
1. High brightness 36W power LED (Light-Emitting Diode)
2. Units featuring an exceptional 50.000 hours long life under normal operating conditions.
3. Continuously variable light intensity.
4. No UV / No infrared.
5. Virtually instant light production
If you want to know more informations about our products, please download the form as below.
Company Profile:
Jiangmen LT lighting Co., Ltd is located in Jiangmen City, Guangdong Province, China. We are specialized in LED Lighting developing, manufacturing and providing technical support and solutions, with the strength of high pole lamp, shockproof LED lighting, explosion-proof light, tunnel light, spotlight, wall washer, down light, global bulb and many other indoor & outdoor LED lightings, with high quality and competitive price.
Our team has experienced experts and highly talented professional technicians. They all have doctorate/master's degree and decades of experiences in LED research. We also have many patents, including heat-dissipating structures, nanomaterials, high-power sources and others.
Our products are widely use in aviation, navigation, port, street, commercial, building and many other places, which are also popular in Europe, Japan, USA, Asia Pacific and other countries. Main projects includes: Upgrade vehicle displays of public transport systems in North America; Replacement of the traditional lamp to LED lamp for Boeing Co., Airbus; Italy Marco Polo yachts; Jiaguang Jiatong Road; Hongkong Science& Technology Parks; Taiwan Hsinchu Science and Industrial Park; Taipei Traffic intersection test system and others.
We insist on the idea of "efficiency, integrity, service, humanity" & "learn from advantage, and surpass the similar. " We have unique enterprise culture and mature management concept.
We have been making every effort to become a top-rank LED manufacturer and supplier in China. Look forward to the future, we will strive to be the leading company with great competitive ability, also make a contribution to harmony of environmentally friendly society and the progress of human civilization.
Model No.
|
LT-XQD-36W
|
LED Light Source
|
High-power LED chip (1W emitter/pc)
|
LED Quantity
|
36 PCS LED ( Single color)
|
LED Luminous Efficiency
|
100 lm/W
|
Lamp Total Power
|
36W
|
LED Initial Flux
|
3600lm
|
Beam Angle of Lens
|
15/ 30 / 45 / 60 degrees (optional)
|
Color Rendering Index(CRI)
|
Ra≥75
|
IP Rating
|
IP65/IP67
|
Working Lifetime
|
> 40,000hrs
|
Input Voltage
|
AC 100-240V ; DC12V/DC24V (Optional)
|
Frequency
|
47-63Hz
|
Power Factor (PF)
|
0.80
|
Total Harmonic Distortion (THD)
|
≤ 20%
|
Storage Temperature
|
-40°C~+60°C
|
Working Environment
|
-40°C~+50°C; 10~95%RH
|
Lamp Body Material
|
Aluminum Alloy+Tempered Glass
|
Net Weight
|
3.3Kg±5 %
|
Gross Weight
|
3.7Kg±5 %
|
Product Dimension (mm)
|
L1000*W62*H62mm
|
