Home LED Light Products 36W 600*600mm Emergency LED Panel Light (SPP-6060-36W)

36W 600*600mm Emergency LED Panel Light (SPP-6060-36W)

36W 600*600mm Emergency LED Panel Light (SPP-6060-36W)
Price: US $ 110/Piece
Trade Terms: FOB,CFR,EXW
Min Order: 10/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Product Catalog » Lights & Lighting » Emergency Light & Indicator Light » Emergency LED panel ight

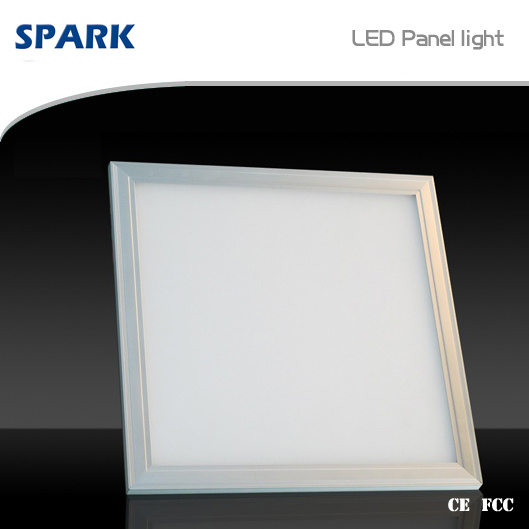

36W 600*600mm emergency LED panel light

Technical Specifications:
Model: SPM-6060-36W
Dimension of LED Panel light: 595*595*9.5 MM
Input Voltage: AC85-265V
The maximum power: 36 W
Power factor: >0.9
Communication power supply: LED lamp flux 3000Lm (optional)
Emergency lighting LED lamp optic: 1000LM (optional)
Emergency time: 3hours (optional)
Emergency conversion time: < 0.5s
Charging time: 24Hours
Emergency output current: 0.1 A
Emergency output voltage: DC 60V
Emergency panel light IP: IP44
Application for emergency LED panel light:
1. Office Lighting: Conference / Meeting rooms, factories & offices,
2. Commercial Lighting: High-class stores, shopping malls, hotels, Restaurants, airport
3. Decorative Lighting: Saloon, Coffee shop, living room
4. Institution Buildings: Schools, colleges & universities, hospitals, pharmacy

Emergency power Introduction
1. The AC power line, LED lamp power rating for 40W, at the same time, the power of the Backup battery management, this time the power of the box indicator light is red.
2. When there is a power failure, < 0.5 seconds conversion nickel cadmium battery driven LED lamp, fluorescent tube at this time of emergency power for 12 W (optional), the Lamp of the emergency lasts for 90 minutes (standard/optional). When the battery set Limit to discharge voltage value, emergency power source move to cut off the battery Power supply, into standby mode (zero power consumption), LED lamp go out.
3. Alternating current input again, emergency power automatic into charging cycles, LED Light tube into the normal work of the state, the battery in, Normal standby.
4. Long distance transportation: Must be in no AC input, unplug battery plug and then Insert plug, into the transportation and storing condition.
5. The battery selects high quality Lithium battery charging and discharging more than 500 Times above, with the state standards, and no explosion danger.
6. Emergency power cabin charging protection function can be in charge after saturated Automatically stop charging, and charging won't appear.
7. The battery and emergency power have high temperature resistant performance, can Be in-25-70 degrees environment use.
8. Consider using the occasion for emergency security more spare, suggest users every Year regularly check, put into use full 3 years later, be sure to be strong the Replacement.
9. The battery technology material, with the two years. Battery performances meet International standards IEC61951-2003, circle life in 500 cycles.
10. Emergency panel light warranty: 3-5 years for the whole set
Model: SPP-30120-36w Lamp rated total power:36W(45/54w for option)
LED :Samsung(Epistar for option)
Size: 300*1200mm
Input voltage: AC100-240V/50HZ
Lamp rated total luminous efficiency: 80lm/w Power efficiency: 85%
Lamp rated total luminous flux: 2500-3000lm Color rendering index(CRI): RA≥75
Beam angle:150 CCT:3000k/4500k/5700k
Total harmonic distortion(THD):<20% Power factor:0.9
Working lifetime:>50000 hr Material:Aluminum Alloy+Acrylic lightguide board(four sides+holder

Storage temperature:   -40-+60 Working environment:-20-+45;10%-95% RH
Installation:Embedded/hanging/support fixed IP rating:IP20
Prod Model: SPP-6060-36W
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Western Europe
Watt: 36W
Function: Dimmable/Cct Change/Emergency Use/RGB
Warranty: 3 Years
Size: 595*595*9.5 Mm
IP: 44
LED: Samsung(Epistar)
Charging Time: 24 Hour
Emergency Time: 3 Hour
Light Source: LED
Appearance: Square
Type: Flat-Type
Emitting Color: White
Certification: RoHS
Base Material: Plastic
Voltage: 100-240V
Housing Material: Aluminum
Beam Angle: 150
LED down light, LED panel, LED tube, LED flood light are our main products, with good sale in domestic and overseas market. Shenzhen Spark Industrial Co., Ltd. is a company who established in year 2006 and specialized in the field of manufacturing LED lighting products. We independently design and manufacture LED products. We are well equipped with excellent equipments, machines and professional staffs.

To achieve customers requirement is the goal of our company, and to keep pace with the daily changing LED lighting market, we always to be innovate, persistant, and delicate to the new products research and development. Try our best to offer the customer with the most updated product and to lead the trend of the market.

The factory is located in shenzhen, guangdong, China with the production line of: LED downlight, LED ceiling light, LED panel lights, LED spotlight, LED tracklight, LED floodlight, LED emergency light, rechargeable portable LED floodlight, LED tubes, LED highbay etc.

With these kind of products application and decoration in the places of house, hotel, shoping mall etc, we believe that we can help to build a greener and brighter world. Our aim is to light up your world with LEDs and gain a better future.

Our markets are major in Europe, South and north America and inside China. And we are expanding our market share to a larger extent. We look forward to your cooperation. Contact us now, we won't let you down!
