Specifications:

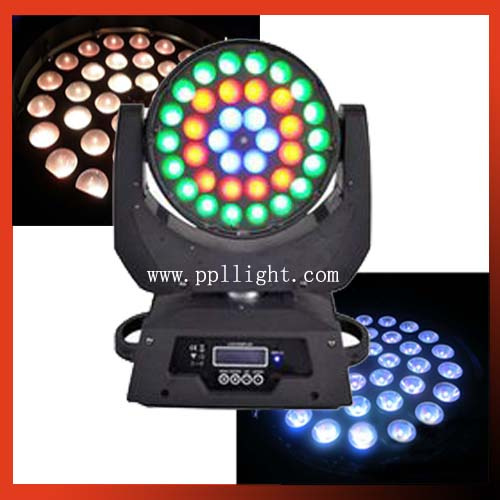

.Products Name: 36pcs*10W 4-in-1 ZOOM LED Moving Head Wash Light
.Item No.: LED-M3641Z
.Voltage : 90V-245V/50-60Hz
.LEDs: 36*10W RGBW 4IN1 LED
.Power: 400W
.Control signal: DMX 512, in sets at the automatic procedure
.Channel: 15CH (RGBW) DMX512 channel control
.Color: 16.7 million kinds of colors changes
.Dimensions: 460 × 335 × 385 mm
.N/G Weight: 11/12kg
Details :
.Blue background LCD display
.3-pin or 5-pin DMX connectors
.LED Life time: 100000 Hours
.RGBW linear color mixing
.Linear color temperature correction from 2700K to 8000K
.0-100% linearly adjustable
.Electronic Strobe 0 ~25F. P. S
.PAN(0° ~450° ) and TILT(0° ~270°), User-selectable Pan/Tilt ranges
.ZOOM ANGLE: 10° ~60°
.DMX512, 3 pins interfaces RDM Control Protocol
.10channels in short mode, 15channels in standard mode, Master/Salve Synchronous
.DMX512 / Master-Slave / Auto / Custom / Sound
.Flame retardant engineering plastic shell/cast aluminum, housing IP20
.WORK ENVIRONMENT TEMPERATURE: -10° C~40° C
channel chart:
| Channel | Function |
| 1 | X |
| 3 | Y |
| 2 | X Fine |
| 4 | Y Fine |
| 5 | XY Speed from Max to Min |
| 6 | 000-006: no strobe |
| 007-065: strobe min to max speed |
| 066-069: no strobe |
| 070-128: Lightning Electromagnetic Pulse min to max speed |
| 129-131: no strobe |
| 132-191: fade in strobe min to max speed |
| 192-195: no strobe |
| 196-255: fade out strobe min to max speed , Dimmer ( 0 ~ 100% ) |
| 7 | Dimmer 0-100 adjust gamma |
| 8 | Red ( 0 ~ 100% ) |
| 9 | Green ( 0 ~ 100% ) |
| 10 | Blue ( 0 ~ 100% ) |
| 11 | White ( 0 ~ 100% ) |
| 12 | RGB color change |
| 13 | Function Control |
| 0~15: No Function |
| 16~80: off when x/ y moving |
| 81~95: No Function |
| 96~110: reset (after 3 second ) |
| 111~125: no function |
| 126~175: Automatic programme |
| 176~190: No function |
| 191~240: Sound Activation Programme |
| 241-255: No function |
| 14 | channel of function control |
| 0-63: X/Y Forward Direction |
| 64-127: X Reverse Direction |
| 128-191: X/Y Reverse Direction |
| 192-255: Y Reverse Direction |
| 15 | ZOOM Function |
Trage terms:
| Price Term | exw price |
| Payment terms | T/T,Paypal,Western union |
| Shipping Way | 1.By express(DHL,Fedex,Ups,EMS) |
| 2.By air |
| 3.By sea |
| Sample time | 1-3 workdays |
| Production time | general 5-10 days,depend on your order quantity |
| Packing | 1.Standard Carton |
| 2.Flightcase |
| Warranty | 1 years |
| After-Sell server | 1.If there is some problems with the product,please describe it and sent thenecessary picture or video to us for analyzing. |
| 2.Then we will guide you how to fix it and provide free accessories if needed. |
| 3.1year quality guarantee at least, and we will provide free parts for replacement if any problem belong to us during the period(Delivery cost paid by customer);1 year later, we can provide spare parts for replacement based on certain charge. |
Why choose our LED moving head lights?
It's one of our best selling item.
very low noise ,stable quality with amazing effects . with our own program, very stable , meantime , the raw material we used are nice , for more details , please contact me , thanks !
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
