Feature:
1. 36pcs 10W RGBW 4in1 LEDs
2. Zoom function 10 ° -60 °
3. 16bit dimming, Muted light and no flicker
4. RGBW Infinite mixing system
Technical Parameter :
Voltage:AC100/240V 50/60Hz
Power Consumption: 360W
36 *10W 4-in-1 RGBW LED lamp.
Red, green, blue, white polar blending, gradient
Strobe speed from fast to slow to the speed strobe, 1-25 per second
0-100% electronic dimming
Zoom function, adjustable angle of 10 ° -60 °
Level of 540 ° , fine-tuning 16bit
Vertical 270 ° , fine-tuning 16bit
Horizontal / vertical speed adjustment, 15 DMX signal channels , reset function
Control mode : Sound, automatic operation, DMX control
Appearance of the structure: LCD Display, 3-pin XLR plug and socket
Packing Size : 460 × 335 × 385 mm
N/G Weight: 10/12kg
DMX Channel:|
CH | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
FUNCTION | X | Y | X Fine | Y FIne | XY Speed from Max to Min | strobe | Dimmer | Red(0-100%) |
| 9 | 10 | 11 | 12 | 13 | 14 | 15 |
|
| Gre(0-100%) | Blue (0-100% | White | RGB color change | Function control | Channel of function control | Zoom functon |

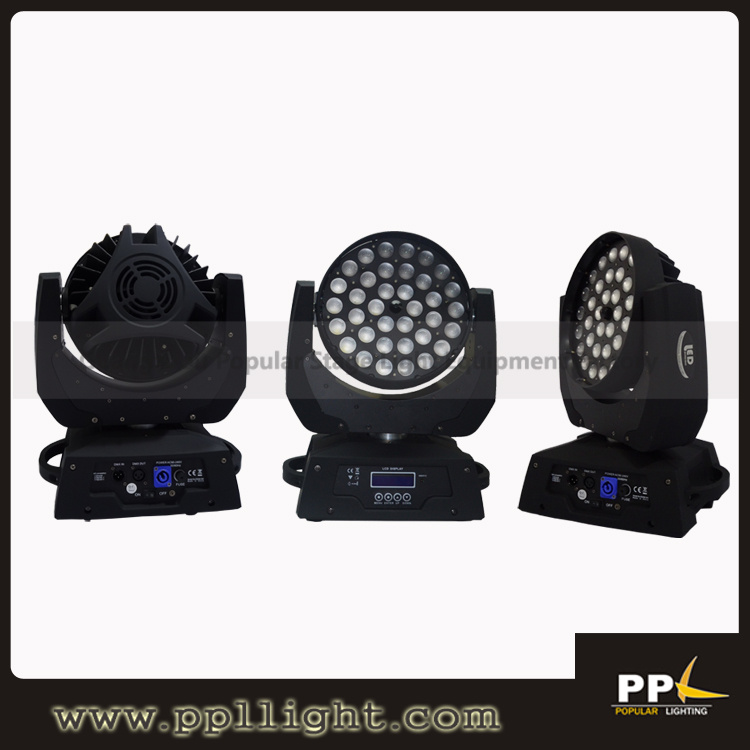

Product Show:
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
