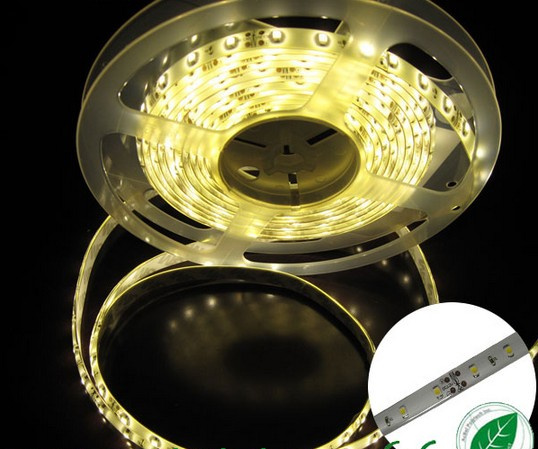

3528 LED strip light
1. 12V DC voltage
2. 120 degrees Viewing angle
3. Low price, quantity production, short lead time
4. Energy saving, maintain free
3528 LED strip light
Poducts Feature
1. The thickness of the wires should be adopted based on the possible maximum current, length of wires(10m in maximum is recommended)and the loss in the wires during transit at low voltage.
2. Two ends of connection should be done as waterproof.
3. No touch in static, no work in electricity.
4. The maximum length is 5m, no exceeding in connection.
5. Quality power supply is recommended(with short circuit protection, high voltage and power load protection).
6. It can be cut at the mark of the connection and there will be no affect to its function.
Specification
LED type 3528 SMD LED
Available colors full color
Viewing angle 120°
Luminous flux(lm)
R G B
300 960 240
Wavelength(nm/K)
R G B
619-635 512-528 463-475
LED qty/5m 300PCS
Life span 50, 000h
Electric parameter
Working voltage(V) DC12V
Power consumption(W) Max: 72WDriving method Constant voltage
Wires&series connection length
Wires Input end connect single 4 core Y. R. G. B. Wire, Yellow color connect +, red to R, Green to G, Blue to B.
Stand length in serial connection 5m
Maximum length in serial connection ≤ 5m
Outer Parameter
Shell /
Color Yellow & white
Dimension 5000*12*2.2mm
Fixed mode
Screw /
Double-side adhesive 5000*12mm, 3M double-sided adhesive
Environment Parameter
Working Temperature -40° C- +50° C
Storage Temperature -50° C- +60° C
IP grade IP33
MSS LED LIGHTING CO. Ltd was founded since 2006, which regularly improves the products held and expands into other markets, The network of distribution partners has been developed in 15 countries - what ensures a production scale economy, whereas MSS have a big warehouse optimizes the goods logistics and ensures a proposal of more competitive conditions.
Upon our 6 years working experience on LED lights produce management, marketing and after sales support, we can offer you very professional and prompt service, with very good price, qualified LED light, fast lead time, and the latest new tech LED lights. Especially in LED Strips, LED Module for Sign, LED Tube Light T8, LED Panel Lamp, replacement LED Bulbs etc. Believing in the quality of our products we can, as one of the few, even offer you a 5 years manufacturer warranty. MSS driven by two simple principles: Employ the latest technologies to develop quality lighting products and take really good care of the customers, all our staff continues to deliver on those principles.
The R&D Team we have put together have a wealth of experience in the LED lighting industry and will continue to come up with innovative products and use for LED lighting. Ninety percent of our staff hold university degree or better. Every aspect of the production process is monitored by the latest and best computer software. The use of ERP and QA management software ensures every aspect is correct and meets the highest standards throughout production. Our ability to maintain these standards has resulted in 80% in our production being exported to Europe, North America and Australia with an ever-going local market. Our company with 5PCS SMT is constantly updating production machinery and processes to ensure we remain competitive in the market place. Producing the best product as economically as possible is our mission. The output of the module is 2 million PCS per month, and it will be increased to 5 million PCS in June. The capacity of the LED Strip is 300 thousand meters per month, with prompt delivery time without delay, and store products are always available.
Long-term cooperation with our customers, team work and cooperation is very important to us. We want to be a reliable partner and believe in the value created by lasting relations with the client. Customers from all over are welcome. Contact US today for LED solutions!
