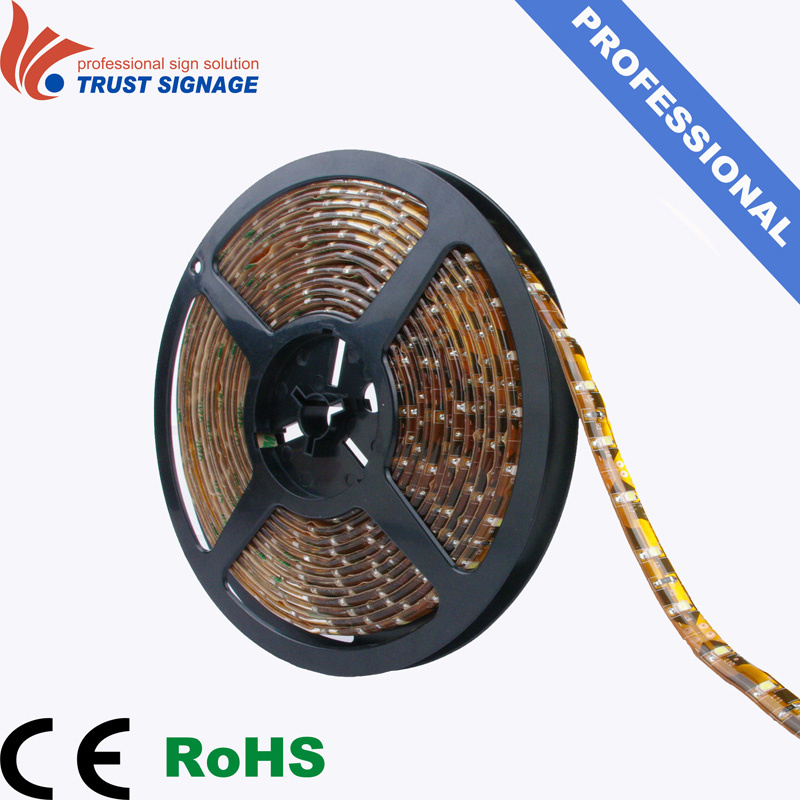

SMD Flexible LED Strip:
1. Light source: 3528 & 5050
2. Emitting color: Red, Yellow, Blue, Green, White, Warm White, RGB
3. LED Quantity: 30 LEDs/m, 60 LEDs/m, 90 LEDs/m, 120 LEDs/m
4. PCB Width: 8mm 10mm
5. Voltage: DC12V, DC24V
6. Non-waterproof: IP33 Waterproof: IP68 Epoxy covering IP: IP65
7. Beam angle: 120 degrees
8. Length: 5m/roll
9. Certification: CE & RoHS
LED Strip Feature:
1. Even color combination, lively effect, high brightness, low luminance decay
2. Sheapeable and flexible, installation and fix flexible
3. DC12V low power driven, high securiy
4. Low power consumption, long life, free maintanance
LED Strip Application:
1. Market and Cabinet for corner and outline decoration,
2. Car interior and exterior lights,
3. Architectural decorative, Auditorium walkway lighting,
4. Channel letter lighting using for stores, restaurants, bars,
5. Illumination lighting using walkway, canopy, stairway accent lighting, amusement park,
6. Auditorium walkway lighting, outdoor illuminated signs and advertisements,
7. Archway, canopy and bridge edge lighting,
Professional in supplying waterproof, non-waterproof and epoxy covering LED strip. 3528 and 5050 in single color, RGB with remote controller and adapters.
|
SMD3528 SINGLE COLOR |
|
MODEL |
TS-LSA-SMD3528-30 |
TS-LSA-SMD3528-60 |
TS-LSA-SMD3528-90 |
TS-LSA-SMD3528-120 |
|
LED CHIP |
SMD3528 |
|
LED QUANTITY |
30pcs/m |
60pcs/m |
90pcs/m |
120pcs/m |
|
STRIP WIDTH |
8mm |
|
STRIP LENGTH |
5m/roll |
|
PCB COLOR |
Yellow/White |
|
VOLTAGE |
DC12V/DC24V |
|
POWER |
2.4w/m |
4.8w/m |
7.2w/m |
9.6w/m |
|
IP LEVEL |
IP33 (non-waterproof) |
|
IP65 (Epoxy Waterproof/Silicone-crust Waterproof) |
|
IP68 (Glue Sealed Waterproof) |
|
COLOR |
White (W), Warm White(WW), Snow White (SW), Red(R), Green(G), Blue(B), Yellow(Y), Orange(O), Pink(PK), Purple(PL) |
|
LUMEN (LM/M) |
W(150),WW(150), SW(150),R(45),G(90), B(60),Y(45),O(45), PK(105),PL(48) |
W(300), WW(300), SW(300),R(90), G(180), B(120), Y(90), O(90), PK(210), PL(96) |
W(450),WW(300), SW(300),R(90),G(180),B(120), Y(90),O(90), PK(210), PL(96) |
W(600), WW(600), SW(600),R(180), G(360, B(240), Y(180), O(180), PK(420), PL(192) |
|
LUMEN (LM/M) |
W(300), WW(300), SW(300),R(90),G(160), B(120), Y(90), O(90), PK(210), PL(65) |
W(450), WW(450), SW(450), R(135),G(240), B(180), Y(135), O(135),PK(315), PL(97.5) |
W(900), WW(900), SW(900),R(270), G(480), B(360), Y(270), O(270), PK(630), PL(290) |
