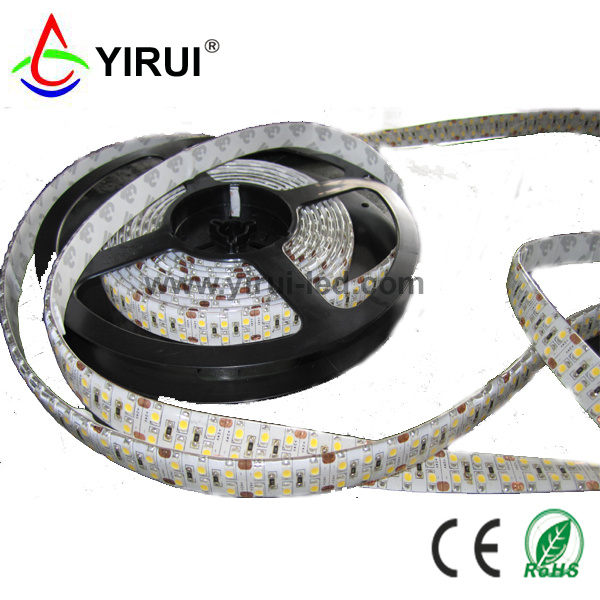

Feature of LED strip:
1. Flexible LED strip, LED strip
2. Light Source: 3528/5050SMD
3. Lifespan: 50, 000Hrs
4. Warranty: 2 years
5. Certificate: CE&RoHS
Specifications of LED strip:
Dimension: 5000(L) x 8(W) x 2(H)mm
60PCS 3528 SMD LED per meter
FPC thickness: 0.2MM
Color: Red / yellow / green / blue / white / RGB
Working Voltage: DC12V or DC24V
Package: 5meters / Reel
with 3M Adhesive tape backside for easy installation
The smallest run unit is 3 LEDs coming in series & can be cut off without damaging the rest of the units.
Supplied with double-sided adhesive tape for easy installation
Connector options of LED strip:
Ribbon to Ribbon flexible connector (Jumper)
Ribbon to DC jack connector
with ribbon extension cable for soldering (no connector)
LED strip features of LED strip:
3 LED cuttable with the mark
Operating temperature: -40 to +80 degree Celsius
Match the RGB controller and power supplier system
Low power consumption
Lower heating during operation
Continuous length with the quickly connector
Reel peaking and strong adhesive back
|
LED Parameters |
|
Led Model |
SMD 3528/5050 |
Power Source |
DC12V |
|
Led Q' ty |
30/60/120/240 |
Color Temperature |
WW3000-3500K CW6000-6500K |
|
Material |
FPC Board |
FPC Board Size |
10/12*1000mm |
|
Beam Angle |
120° |
Emiting Color |
R/Y/B/G/CW/WW/RGB |
|
Power |
2.4W/4.8W/9.6W/14.4W |
Color of FPC |
Yellow/White/Black |
|
Over Length |
15cm |
Protection Level |
IP33/IP64/IP65/IP68 |
|
Theory Lifespan |
50000h |
Warranty |
2 years |
