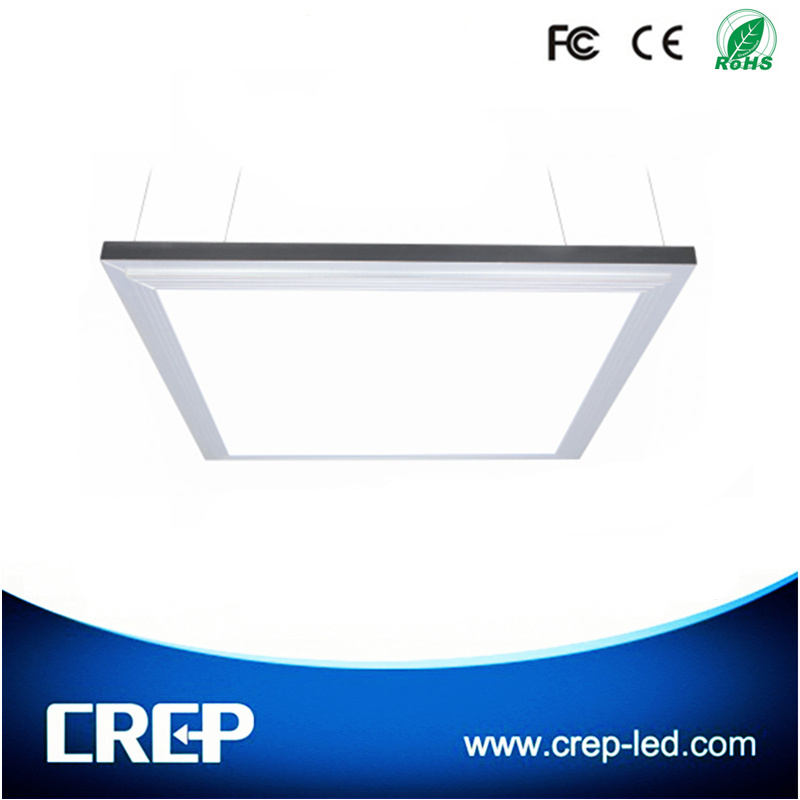

3500lm 40W 600*600mm LED Panel Lights
Power: 40W super bright LED panel lighting
Input voltage: AC100-240V
LED type: 624PCS SMD3528
About dimension: 100*100, 200*200, 300*300, 600*600, 1200*300, 1200*600mm LED panel lights available. Also, like 620*620mm, and any other dimension is available as your requirement.
Single color panel lights available as your requirement.
Application of LED panel lights: Widely used in Commercial and Residential places. For example, Offices, Hotel, conference rooms, corridors, restaurants, shopping malls, flagship stores, showrooms, night clubs, factories, and other commercial, residential and public facilities.
LED panel light is a high end interior lighting, adopting ultra-bright SMD LEDs as light sources. Light beam goes through high transmittance guide plate to give even lighting effect. It is beautiful and eco-friendly, easy installation, low consumption, high luminous efficiency. The panel light not only gives better lighting effect, but also brings beauty to people with elegant and Luxury design.
Notice:
1. Turn off the main power supply before installation.
2. Make sure a solid and correct connection to avoid short-circuit damage to components and trigger fires.
3. Install in a well-ventilated place to ensure appropriate working environment.
4. After correct connections of wires, then turn on the power.
5. Do not touch the LED power supply when power on.
6. Do not take the LED panel light and driver apart without permission.
7. Indoor use only, non-waterproof.
8. Input voltage: AC100-240V
9. Working temperature: -30- 50 degree.
10. Working humidity: 10%-95%
| Product name | 600*600mm 40w LED panel lights |
| Model NO. | CPS-MB-X40W-14 |
| Size | 598*598*50mm |
| Lamp material | FE and PMMA |
| Total Power | 40W |
| Input voltage | 100-240V AC50/60Hz |
| Forward current | 19mA |
| LED brand | Epistar from Taiwan |
| LED type | SMD3528 |
| LED Quantity | 624LEDs |
| Lumen | 3500lm |
| Light Effect | 90lm/W |
| Power efficiency | ≥ 88% |
| Power factor | ≥ 0.95 |
| Color temperature | WW, W, CW |
| CRI | Ra 75 |
| Beam angle | 120 degree |
| Working temperature | -30º C- 50º C |
| Working humidity | 10%-95% |
| IP rating | IP40 |
| Lifespan | > 50, 000 hrs (normal use) |
| Certificate | CE, RoHS |
| Warranty | 3 years |
CREP, a high-tech enterprise & vice-chairman in Shenzhen LED industry association, which is specialized in R & D, production and marketing of LED lighting. We keep working to make breakthrough on LED lighting and till now, achieved more than ten new structure patents and one China invention patent. The main product in application lighting includes LED commercial lighting, LED industrial lighting, LED decorative lighting and LED outdoor lighting.
Our company passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS and FCC and other international safety certification. Some products have passed UL, DLC, TUV, SAA, ETL and PSE certification. We have consistently adhered to the operating principle of "market-orientation, quality-assurance, efficiency-improvement, innovation-motivation, resource-integration, service-first and competitive edge-enhancement", continue to improve corporate operations and product innovation to serve customers. We provide solutions for China domestic market, as well as for overseas countries like Europe, America, Japan, Southeast Asia and so on.
We welcome talents with open mind, fully exert their subjective initiative, and pursue continuous innovation and perfection. Gradually, we set up a highly qualitied team with more than 30 members who are junir and senior R&D professional in LED driver, indutial design, optial design, esthetics and industrial design. Meanwhile, introducing the advanced technology, components, production and testing equipment from Jupan, Germany, the United States and other countries to promote the company's productry-leading level.
CREP will always persist "Sincere Cooperation, Continuous Innovation and Future-challenging" to enhance competitive edge, to provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
